Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: ZT23042-D01000FZ
Manufacturer Website Address: http://www.zebra.com
Brand Name: Zebra
Product Series: ZT200
Product Model: ZT230

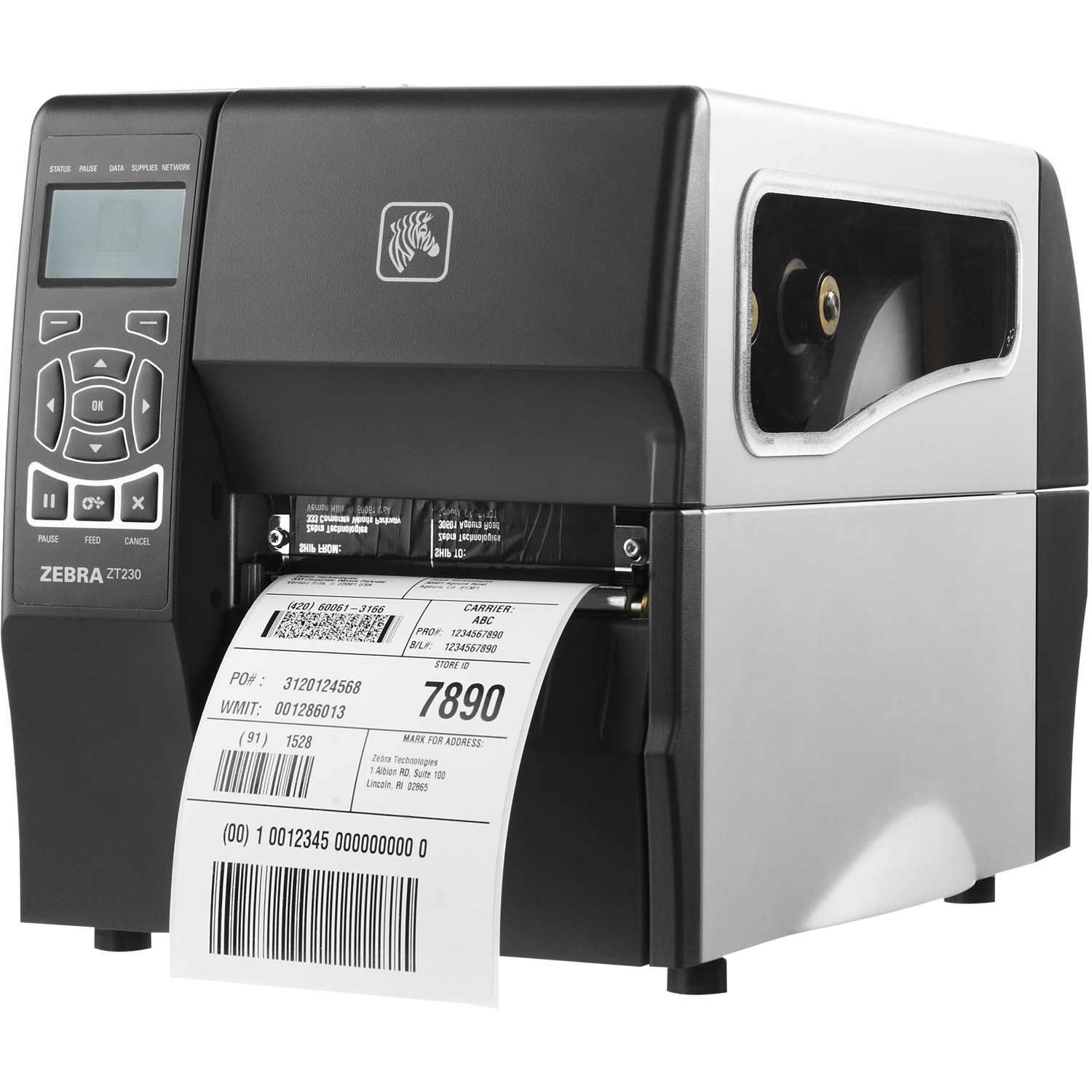

Product Name: ZT230 Industrial Printer
Marketing Information:
Zebra incorporated extensive customer feedback, as well as the legacy of our industry leading Stripe and S4M printers, to create the new ZT200 Series family of printers with elegant space saving design, effortless setup, intuitive user operation, and ease of service and maintenance.
Product Type: Direct Thermal Printer
Technical Information
Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 6 in/s
Maximum Print Resolution (dpi): 203
Maximum Print Width: 4.09″
Barcode Symbology Supported:
- Code 11
- Code 39
- Code 93
- Code 128-A
- Code 128-B
- Code 128-C
- UCC Case Codes
- ISBT-128
- UPC-A
- UPC-E
- EAN-13
- EAN-8
- EAN With 2 or 5 Digit Extension
- UPC 2 or 5 Digit Extension
- Plessey
- POSTNET
- Standard 2 of 5
- Industrial 2 of 5
- Interleaved 2 of 5
- LOGMARS
- MSI
- Codabar
- Planet Code
- Codablock
- PDF-417
- Code 49
- Data Matrix
- Maxi Code
- QR Code
- TLC 39
- Micro PDF
- RSS-14
- Aztec Code
- Micro PDF-417
Application/Usage: Industrial
Features:
- Tear-off
- Element Energy Equalizer
- Clear Bi-fold Media Side Door
- Bi-color LED
Memory
Standard Memory: 128 MB
Memory Technology: DRAM
Flash Memory: 128 MB
Interfaces/Ports
Serial Port: Yes
USB: Yes
Display & Graphics
Display Screen: Yes
Display Screen Type: LCD
Media Types & Handling
Media Type:
- Continuous Label
- Die-cut Label
- Notch
- Black Mark
- Label
- Linered Label
Media Sensor:
- Transmissive Media Sensor
- Reflective Media Sensor
Media Thickness: 10 mil
Maximum Roll Diameter: 8″
Maximum Label Width: 4.50″
Maximum Label Length: 39″
Label Core Size: 3″
Fonts & Emulation
Language Emulation: ZPL
Power Description
Power Source: AC Supply
Input Voltage:
- 110 V AC
- 220 V AC
Physical Characteristics
Height: 11″
Width: 9.4″
Depth: 17″
Weight (Approximate): 17 lb
Miscellaneous
Package Contents:
- ZT230 Industrial Printer
- Power Cord with US Plug
Platform Supported: PC
Certifications & Standards:
- IEC 60950
- EN 55022 Class B
- EN55024
- EN 61000-3-2
- EN 61000-3-3
- UL
- CE Marking
- FCC-B
- ICES-003
- VCCI
- C-Tick
- NOM
- IRAM
- CCC
- GOST-R
- PFC
- Unicode
Energy Star: Yes
Environmentally Friendly: Yes
Country of Origin: China
Warranty
Limited Warranty: 1 Year
| Weight | 17 lbs |
|---|---|
| Dimensions | 9.4 × 11 in |
