5CX178

SKU: 5CX178

General Information
Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: ZD51013D01E00GA
Manufacturer Website Address: http://www.zebra.com
Brand Name: Zebra
Product Model: ZD510-HC

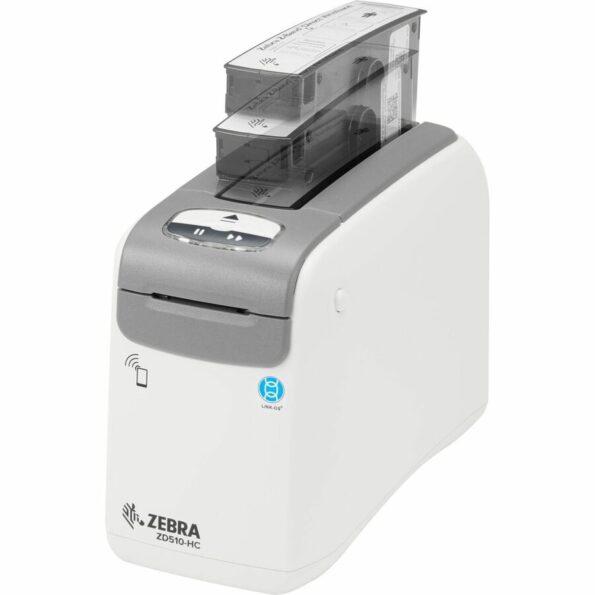

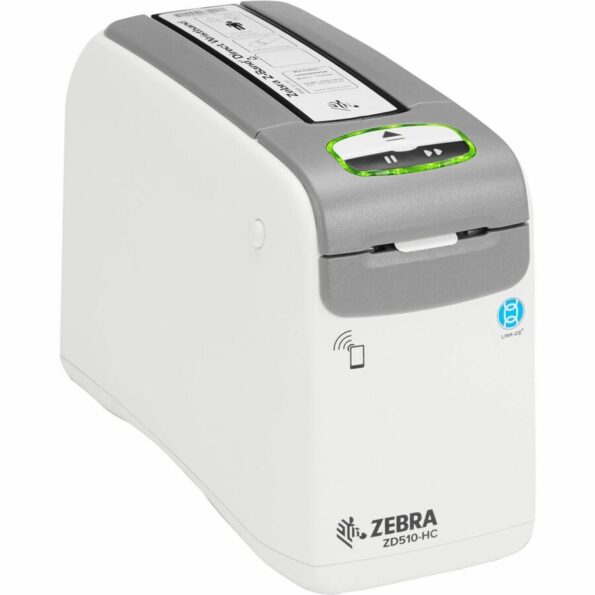

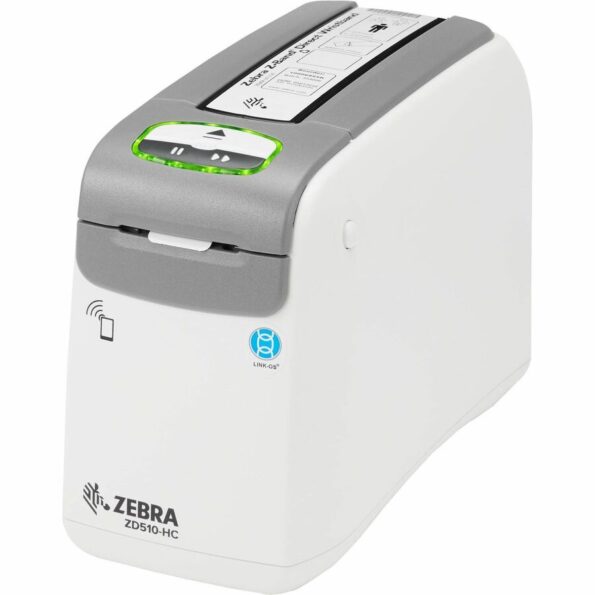

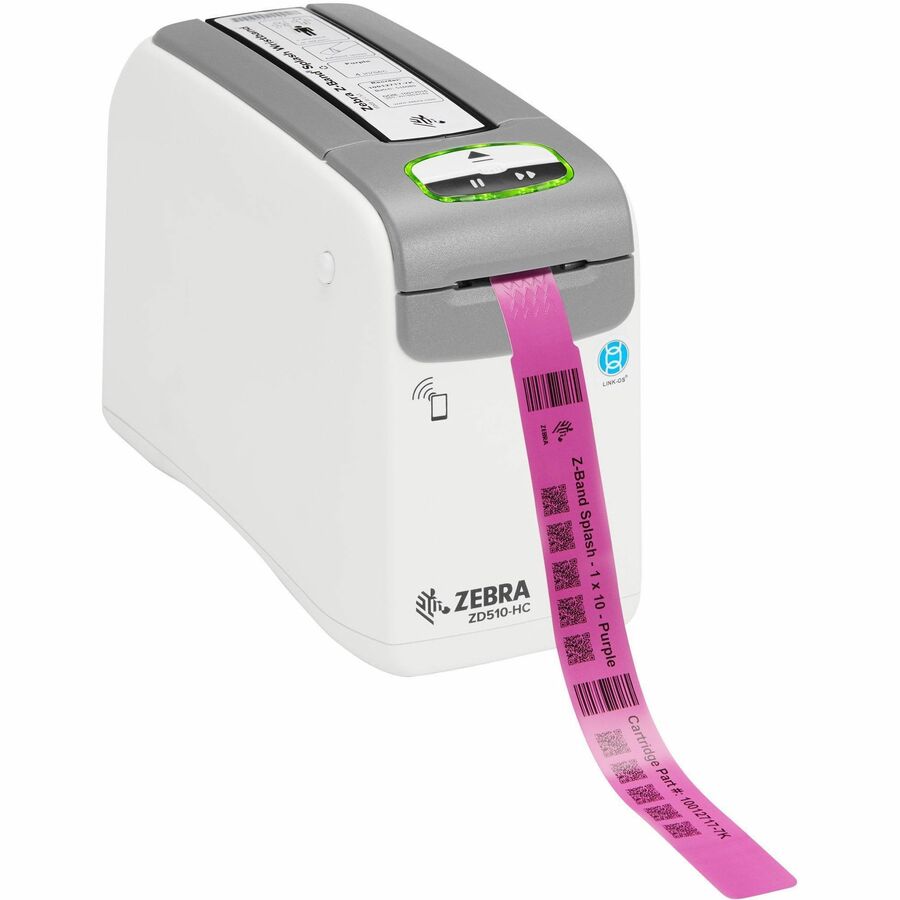

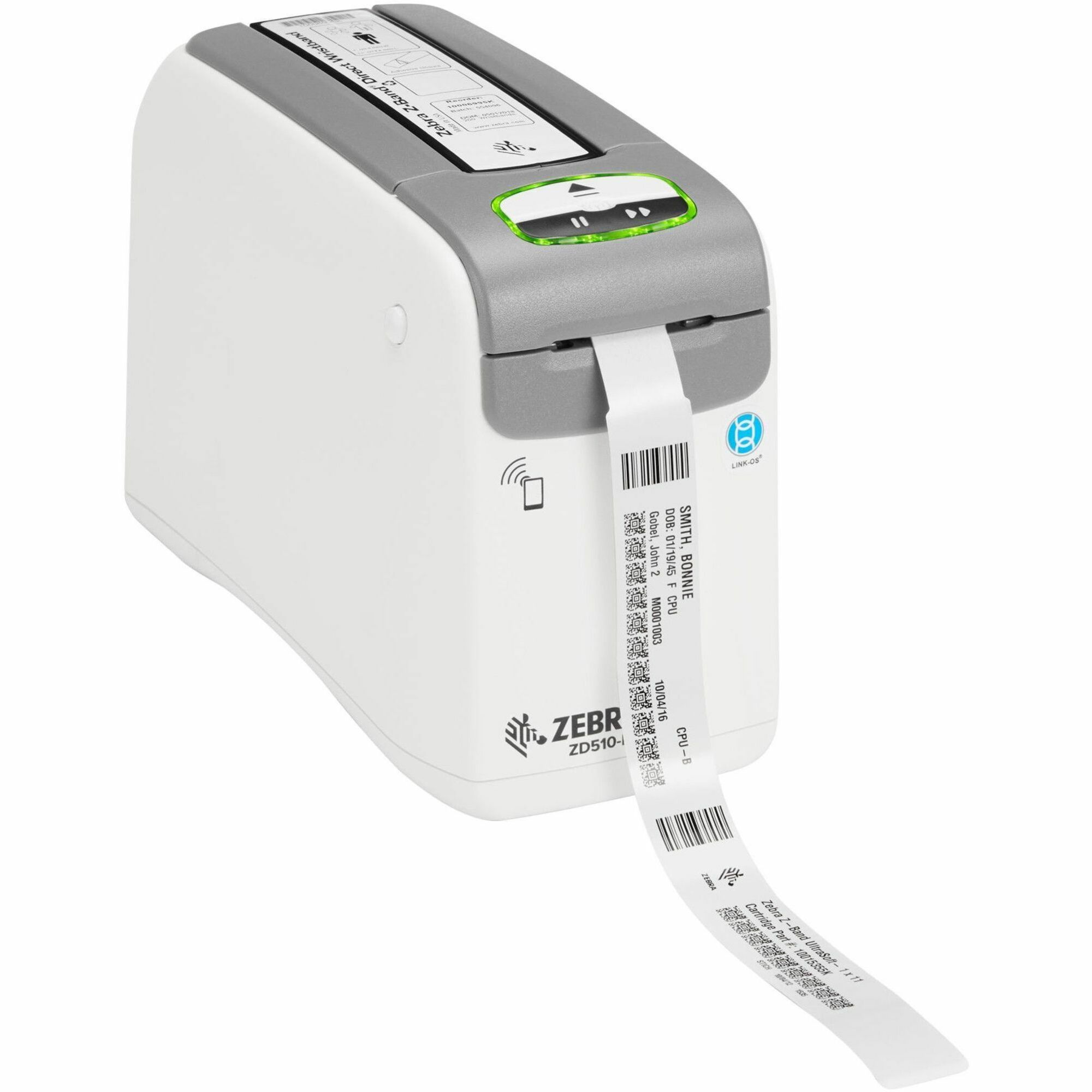

Product Name: ZD510-HC Wristband Printing Solution

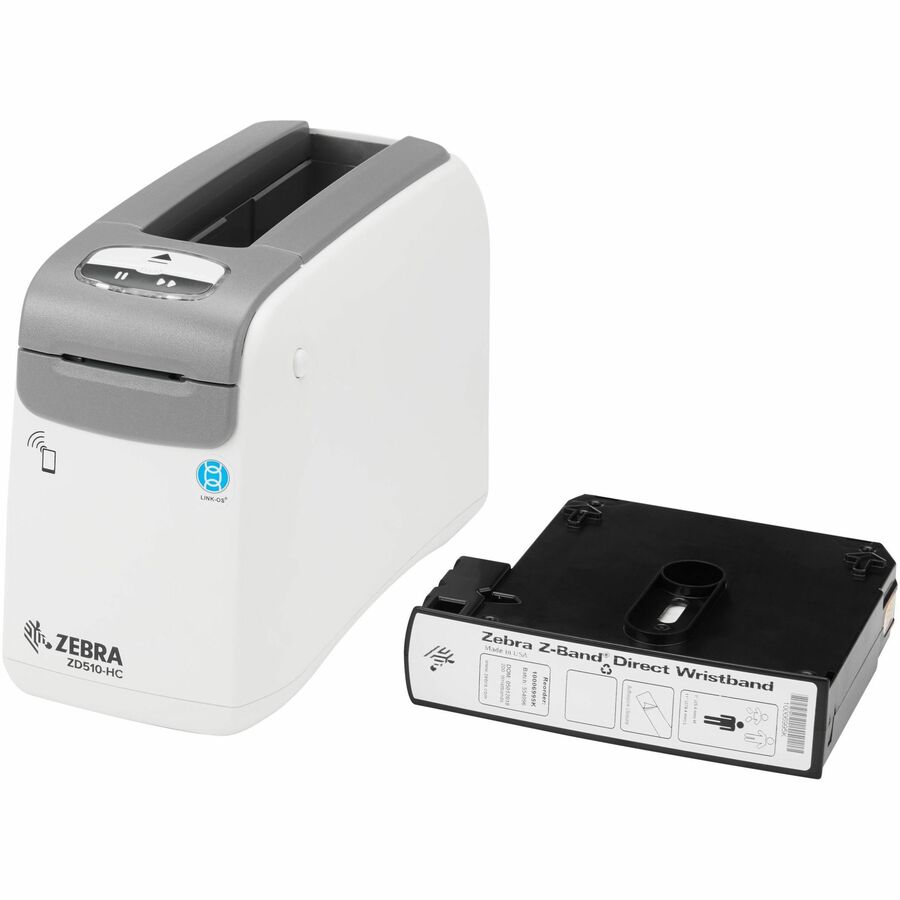

Marketing Information: No matter what kind of wristband printing solution you have, it’s easy to upgrade to the ZD510-HC. It’s backward compatible with the HC100 and uses the same wristband cartridges. There’s native ZPL support for easy migration from Zebra desktop printers. Using another vendor’s printer? The ZD510-HC can use languages associated with other printer brands. And the ZD510-HC offers all the latest wired and wireless connectivity and is validated for use with leading ADT Systems.
Product Type: Direct Thermal Printer
Technical Information
Recommended Use: Wristband Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 4.02 in/s
Maximum Print Resolution (dpi): 300
Maximum Print Length: 21.97″
Maximum Print Width: 1.19″
Barcode Symbology Supported:

• Codabar
• Code 11
• Code 39
• Code 93
• Code 128
• EAN-8
• EAN-13
• EAN-14
• GS1 DataBar
• Industrial 2 of 5
• Interleaved 2 of 5
• LOGMARS
• MSI
• Plessey
• POSTNET
• Standard 2 of 5
• UPC-A
• UPC-E
• UPC-E with EAN 2 or 5 Digit Extension
• Aztec Code
• Codablock
• Code 49
• Data Matrix
• Maxi Code
• Micro PDF-417
• PDF417
• QR Code

Real Time Clock: Yes
Features:

• Dual Wall Frame
• Element Energy Equalizer

Mobile Device Printing: Yes
Connectivity Technology: Wired
Memory
Standard Memory: 256 MB
Interfaces/Ports
USB Host: Yes
USB: Yes
Network & Communication
Network Ready: Yes
Ethernet: Yes
Ethernet Technology: Fast Ethernet
Bluetooth: Yes
Near Field Communication (NFC): Yes
Media Types & Handling
Media Type: Wristband
Fonts & Emulation
Language Emulation:

• XML
• ZPL II

Power Description
Power Source: AC Supply
Environmental Conditions
Operating Temperature: 39.9°F (4.4°C) – 104°F (40°C)
Operating Relative Humidity: 20% – 85%
Storage Temperature: 140°F (60°C)
Storage Relative Humidity: 5% – 85%
Physical Characteristics
Form Factor: Portable
Height: 7″
Width: 5″
Depth: 9.5″
Miscellaneous
Power Cable Localization:

• EU
• UK

Certifications & Standards:

• FCC Part 15
• Subpart B
• VCCI, RCM
• (CE): EN 55032:2012 class B
• EN 55024:2010
• EN 61000-3-2
• EN 61000-3-3
• CISPR 32:2015
• CB Scheme IEC 60950-1
• IEC 62368-1
• T�V
• NRTL

Energy Star: Yes
TAA Compliant: Yes
Warranty
Limited Warranty: 1 Year
