WS5001-0B2J3020ENA

Unparalleled functionality and flexibility in the world’s smallest all-in-one Android enterprise-class wearable mobile computer

Every task worker without mobile access to relevant information and the rest of your workforce is forced to take more steps and more time to complete tasks, eroding operational efficiency. Now, connecting your disconnected workers is easy with Zebra’s WS50- the world’s smallest Android enterprise-class wearable mobile computer. It’s rugged, modular and at home everywhere-from manufacturing and warehousing to retail and hospitality. It’s versatile-this flexible computing core is modular, allowing you to choose the mount that’s right for the job: wrist, back of hand or two-finger. It’s small but mighty, packed with powerful business class voice and data features that drive productivity and accuracy into every task. It’s lightweight and ergonomic, comfortable and never in the way. And with no host device required, it’s the first of its kind, offering powerful data capture with single device simplicity.

Designed for maximum flexibility

True ‘no-host’ one-piece wearable

With the all-in-one WS50, workers only need to wear one device to capture and access data instead of a host mobile computer and ring scanner, providing a true converged wearable solution. And push-totalk (PTT) support eliminates the need for separate voice devices

Wear it your way with modular mounting options

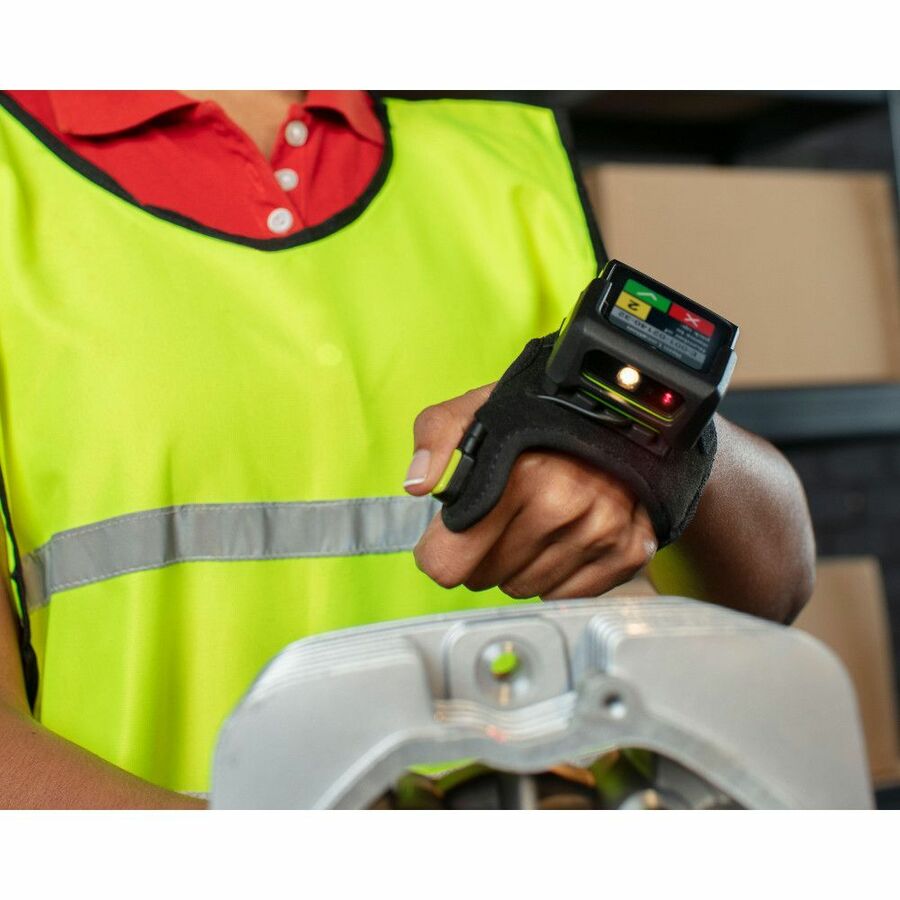

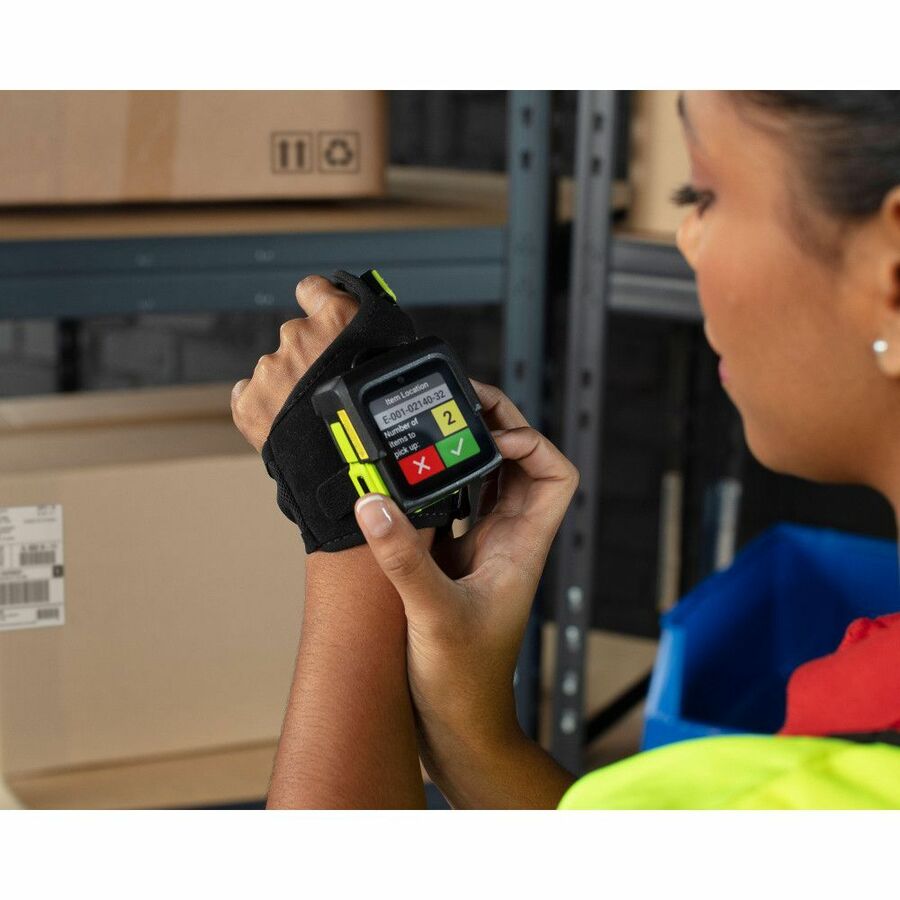

With three different wearing styles, the adaptable WS50 is ideal for virtually any task worker in practically any industry. The WS50 can be worn on a wrist, two fingers or the back of the hand.

All the key features of a full-size mobile computer

Better connect your workforce with push-to-talk (PTT) and task management applications

All models are PTT ready, enabling managers and workers to instantly collaborate for faster issue resolution and increased staff productivity. All models also support task-management applications, enabling better staff utilization and management.

High-resolution camera for light barcode scanning and photo capture

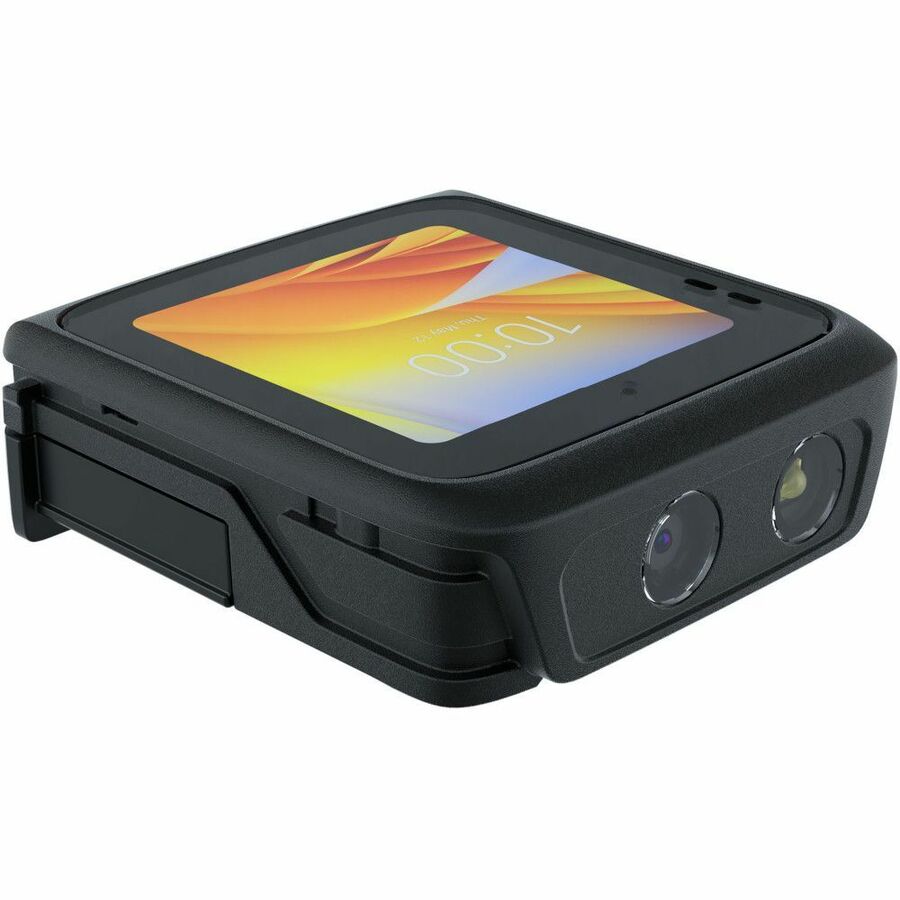

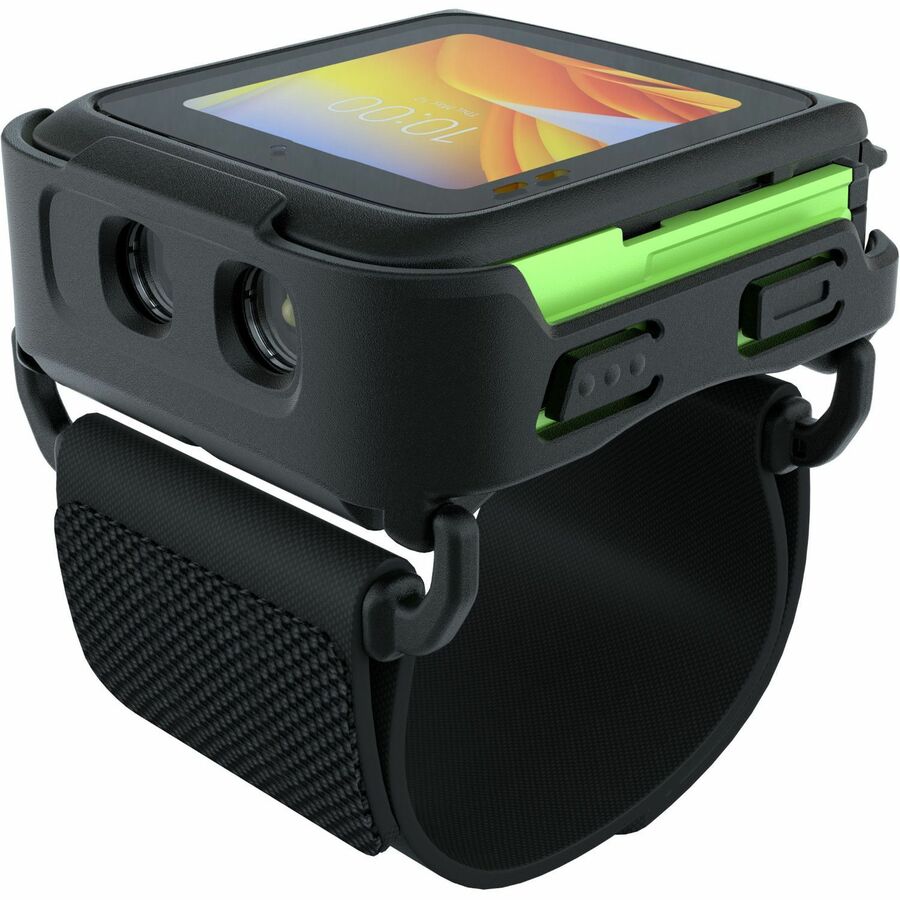

A 13 MP camera in the wrist-mounted model supports occasional barcode scanning and can capture detailed photos to document proof of condition and more.

Advanced enterprise-class scanner for intense barcode scanning

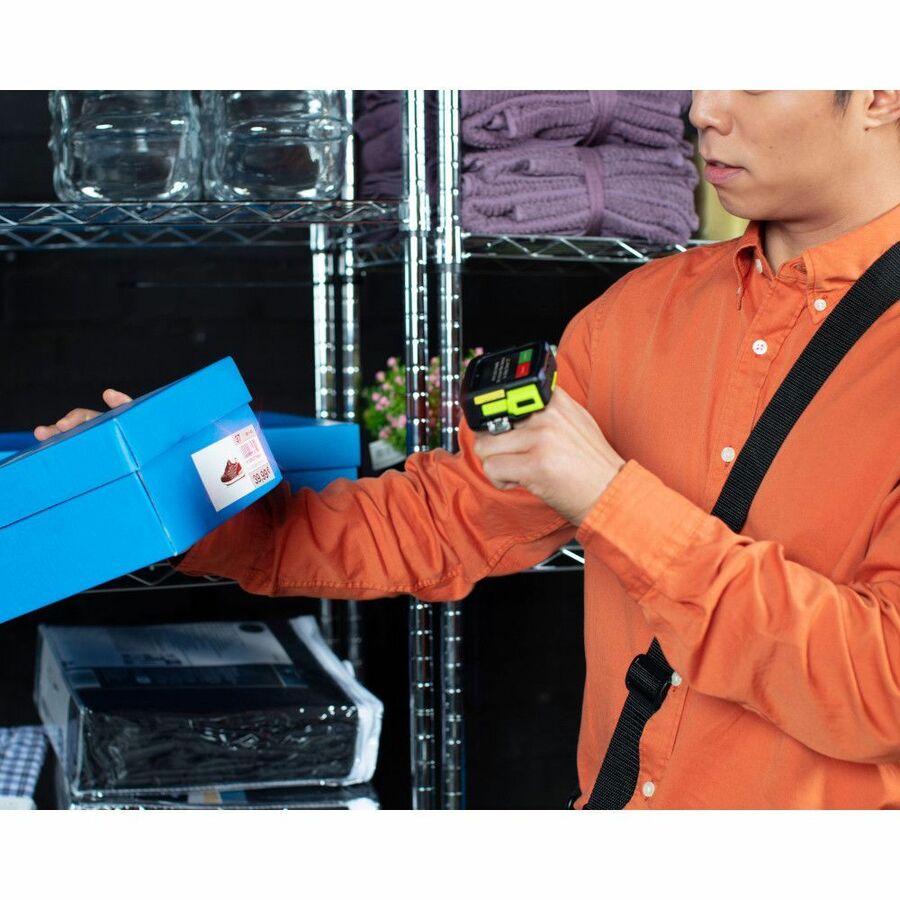

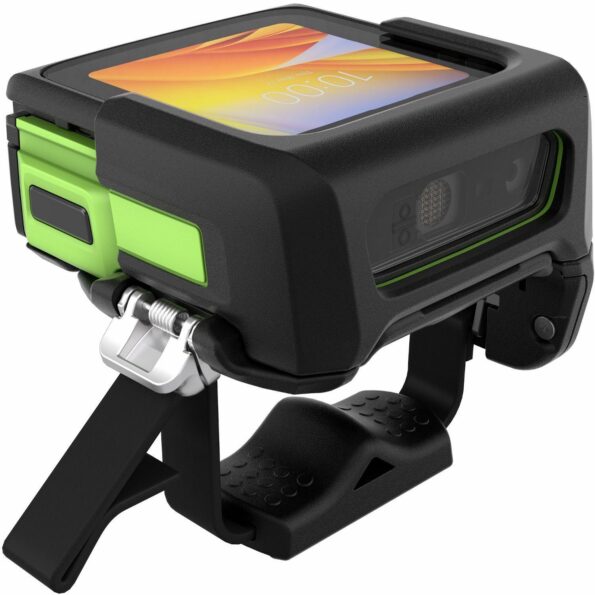

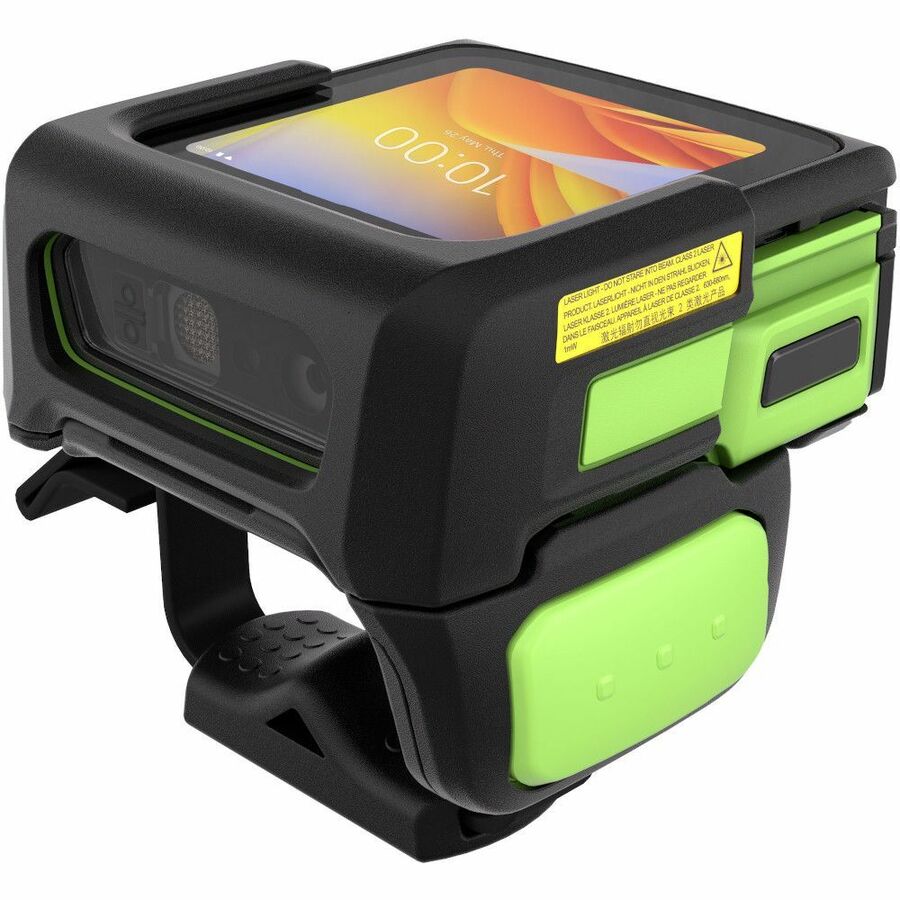

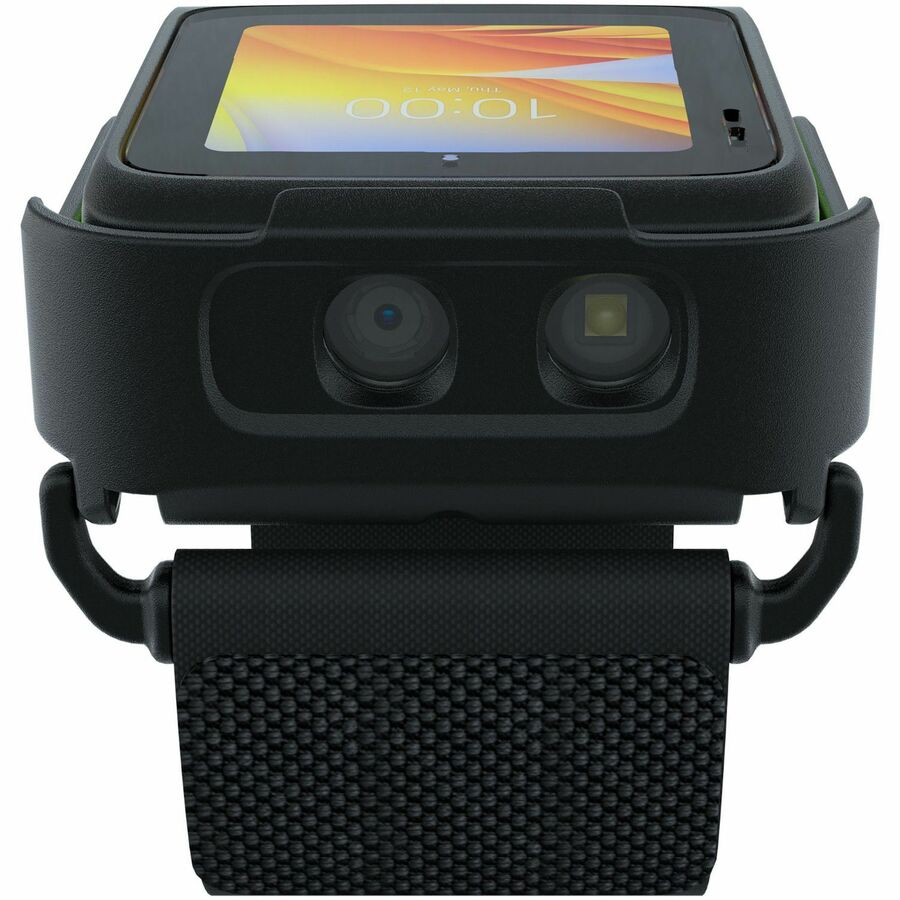

The converged two-finger-and back-of-hand mount WS50 models include Zebra’s SE4770 imager, delivering superior data capture performance. Scan virtually any barcode in practically any condition, as fast as you can press the trigger-even if they are damaged or poorly printed. Superior motion tolerance enables the capture of barcodes, even if scanner and barcode are in motion. No need to depress the trigger for every scan-scan continuously with an optional integrated proximity sensor. A wide field of view makes it easy to capture large or multiple barcodes with split-second pointand-shoot simplicity. With a single trigger press, capture, properly format and transmit data on all barcodes on a label with Zebra’s Multi-Code Data Formatting

Simplify backroom device and battery management – and purchasing – with modular accessories

Choose the charging solution that matches your deployment and device management needs – 2- or 10-slot charge-only cradles; 4- or 20-slot battery chargers, or an Ethernet cradle that supports five devices and five batteries. In mixed model deployments, color-coding allows you to instantly see whether a cradle or charger is for the two-finger and back-of-hand mount converged models – or the wrist-mount models.

The power of Android

This industry-standard mobile operating system provides a future proof pl
Product Type: Handheld Terminal
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Scan Engine Model: SE4770
Image Sensor Type: Imager
Image Sensor Resolution: 1280 x 800
Light Source: Laser
Scanner Range: Standard Range
Google Mobile Services (GMS): Yes
Sensor Type:

• Light Sensor
• Motion Sensor
• Accelerometer
• Gyroscope

Features:

• Drop Resistant
• Push-to-talk
• Gorilla Glass

Drop Specification:

6 ft./1.8 m drop to tile over concrete per MIL-STD 810G across operating temperature

Processor & Chipset
Processor Manufacturer: Qualcomm
Processor Type: Snapdragon
Processor Model: SDW429w
Processor Core: Quad-core (4 Core)
Processor Speed: 2 GHz
Memory
Standard Memory: 1 GB
Flash Memory: 8 GB
Display & Graphics
Screen Size: 2″
Screen Resolution: 460 x 460
Touchscreen Information
Touchscreen: Yes
Network & Communication
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11a/b/g/n/ac/d/h/i/r
Bluetooth: Yes
Bluetooth Standard: Bluetooth 4.2
Near Field Communication (NFC): Yes
Interfaces/Ports
USB: Yes
Software
Operating System: Android 11
Power Description
Power Source: Battery
Battery Information
Battery Capacity: 1300 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Included: Yes
Removable Battery: Yes
Environmental Conditions
Operating Temperature: 14°F (-10°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Wearable
Rugged: Yes
Height: 2.5″
Width: 2.4″
Depth: 1.1″
Weight (Approximate): 4.73 oz
Miscellaneous
Application/Usage:

• Retail
• Warehouse
• Logistics
• Transportation

Ingress Protection (IP) Rating: IP65
Warranty
Limited Warranty: 1 Year
Additional Warranty Information:

Subject to the terms of Zebra’s hardware warranty statement, the WS50 is warranted against defects in workmanship and materials for a period of one (1) year from the date of shipment. For complete warranty statement, please visit www.zebra.com/warranty
