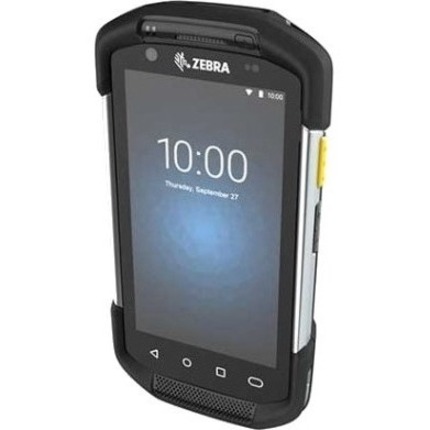

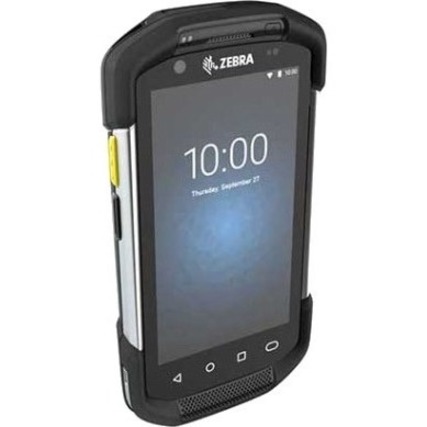

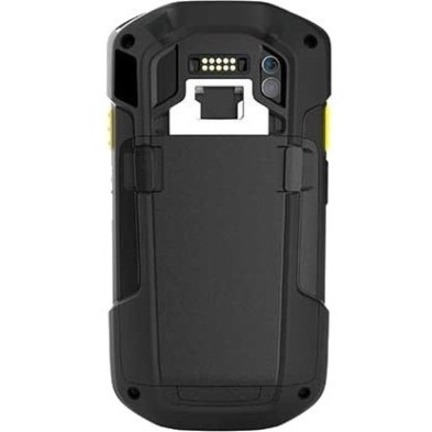

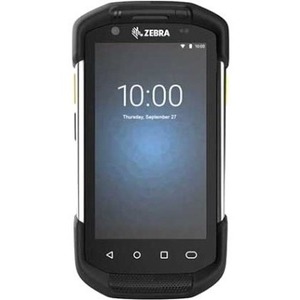

TC77HL5ME24BDBR – Zebra TC77 Handheld Terminal – 1D, 2D – GPRS, LTE, GPRS, UMTS, HSPA, HSPA+, EDGE – SE4750Scan EngineSnapdragon 2.20 GHz – 4 GB RAM – 32 GB Flash – 4″ HD Touchscreen – LED – Front Camera – Rear Camera – Android 8.1 Oreo – Wireless LAN – Bluetooth – Rugged – Battery Included – IP68, IP65, IP67

The Ultimate in Ultra-Rugged Enterprise-Class All Touch Computing

At the edge of your business are your front line workers that spend their days face-to-face serving the important asset in your company – your customers. Now, there’s a device designed to take customer service to the next level by delivering everything your workers need to achieve peak efficiency, with trouble-free reliability – the TC72 and TC77 Android Touch Computers. This family builds on the highly successful TC7 Series family to create the ultimate ultra-rugged all-touch computer for all workers inside and outside the four walls – a smartphone experience for maximum simplicity, construction designed to withstand years of the toughest everyday use and abuse, and a new platform offering more capabilities than any other device in this class. The TC72 and TC77 – for a real competitive edge at the edge of your business, delivered.

Super simple data capture: barcodes, labels and documents

Advanced scanning technology and PRZM Intelligent Imaging deliver lightning fast capture of printed and electronic 1D and 2D barcodes, including Digimarc – regardless of condition. The expanded working range and wide field of view allow workers to scan barcodes nearer and farther away, while omnidirectional scanning delivers true point and shoot performance – no need to ever align the device with the barcode. Need to capture multiple barcodes on a label or data on a form? You can do it all with the press of a single button with Zebra’s SimulScan, a no-cost pre-installed Mobility DNA application.

Full shift power your workers can count on

The PowerPrecision+ high capacity battery delivers up to an impressive 15 hours of power¹ – plenty for the longest shift. With Warm Swap mode, swapping batteries is fast and easy – there’s no need to turn off the device or close active apps. And with fast charging, batteries are fully charged in record time.

Complete cellular network flexibility with single device simplicity

No matter where your workers are, they can stay connected. Simultaneous support for two carriers is ideal for workers that travel to areas better served by different carriers. And aggregated carrier support delivers faster upload and download speeds. The TC77 is certified on leading public safety networks, including AT&T FirstNet and Verizon, assuring responders have the connectivity they need even when networks are overloaded in crisis situations.

The Ultimate User Experience

Android for instant familiarity

Your workers already know how to use an Android device, virtually eliminating training time and adoption curves. And you can deliver the highly graphic interactive apps today’s workers expect.

Advanced touchscreen technology

Give your workers touchscreen simplicity. The high-definition display offers plenty of real estate for graphics-intensive intuitive applications. The easy, familiar and flexible multi-touch operation works even when wet, with a gloved finger or a stylus. And with best-in-class outdoor readability, the screen is easy to read, even in bright sunlight.

Super simple data capture – from barcodes to labels and documents

? Advanced scanning technology and PRZM Intelligent Imaging deliver lightning fast capture of printed and electronic 1D and 2D barcodes, including Digimarc – regardless of condition. The expanded working range and wide field of view allow workers to scan barcodes nearer and farther away, while omnidirectional scanning delivers true point and shoot performance – no need to ever align the device with the barcode.

Product Type: Handheld Terminal
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Scan Engine Model: SE4750
Image Sensor Type: Imager
Scanner Range: Standard Range
Google Mobile Services (GMS): Yes
Wireless Charging: No
Sensor Type:

• Light Sensor
• Motion Sensor
• Pressure Sensor
• eCompass
• Gyroscope
• Accelerometer

Multi-SIM Supported: Yes
Number of SIM Card Supported: 2
SIM Size Supported: Nano/eSIM
Features:

• Gorilla Glass
• Push-to-talk
• Vibration Alert

Drop Specification:

Multiple 6 ft./1.8 m drop to concrete across full operating temperature range, multiple 8 ft./2.4 m drop to concrete at room temperature per MIL-STD 810G

Illumination Type: LED
Illumination Color: White
Scan Mode: Trigger
Processor & Chipset
Processor Type: Snapdragon
Processor Model: 660
Processor Core: Octa-core (8 Core)
Processor Speed: 2.20 GHz
Memory
Standard Memory: 4 GB
Flash Memory: 32 GB
Memory Card Slot: Yes
Memory Card Supported:

• microSD
• microSDXC
• SDHC

Maximum Memory Card Size Supported: 256 GB
Display & Graphics
Screen Size: 4″
Screen Mode: HD
Screen Resolution: 1280 x 720
Display Screen Type: LED
Touchscreen Information
Touchscreen: Yes
Touchscreen Type: Capacitive
Multi-touch Screen: Yes
Network & Communication
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.0 + LE
Near Field Communication (NFC): Yes
Cellular Network Supported: GSM
Cellular Data Connectivity Technology:

• GPRS
• LTE
• UMTS
• HSPA
• HSPA+
• EDGE

GPS: Yes
Global Navigation Satellite System (GNSS) Supported: BeiDou/Galileo/GLONASS
Interfaces/Ports
USB: Yes
Camera
Front Camera: Yes
Front Camera Resolution: 5 Megapixel
Rear Camera: Yes
Rear Camera Resolution: 13 Megapixel
Software
Operating System: Android 8.1 Oreo
Power Description
Power Source: Battery
Battery Information
Battery Capacity: 4620 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Included: Yes
Battery Voltage: 3.70 V
Removable Battery: Yes
Environmental Conditions
Operating Temperature: -4°F (-20°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 5% to 90%
Physical Characteristics
Form Factor: Phone-size
Rugged: Yes
Width: 3.3″
Depth: 1.1″
Length: 6.3″
Weight (Approximate): 13.26 oz
Miscellaneous
Application/Usage:

• Warehouse
• Manufacturing
• Transportation
• Government
• Retail
• Logistics
• Public Safety

Ingress Protection (IP) Rating:

• IP68
• IP65
• IP67

Country of Origin: China
Warranty
Limited Warranty: 1 Year
