7AG652

THE ULTIMATE IN ULTRA-RUGGED ENTERPRISE-CLASS ALL TOUCH COMPUTING

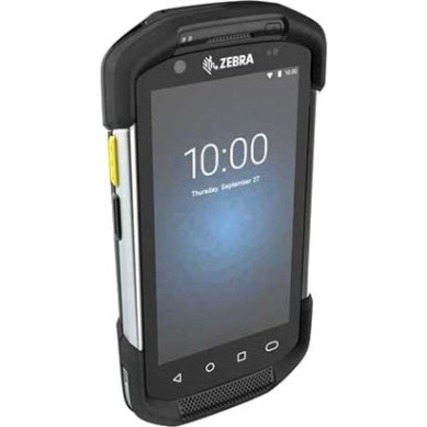

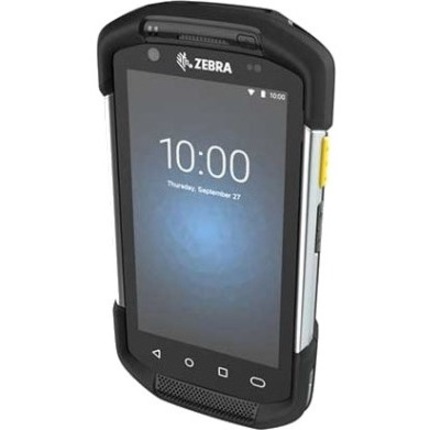

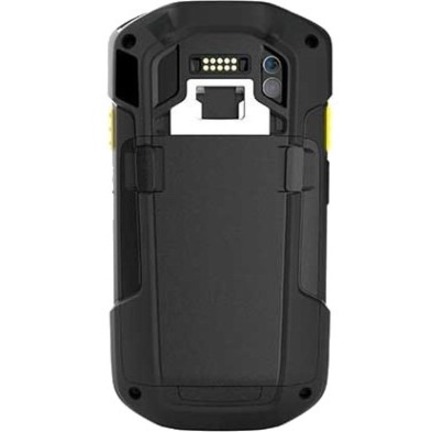

At the edge of your business are your front line workers that spend their days face-to-face serving the important asset in your company – your customers. Now, there’s a device designed to take customer service to the next level by delivering everything your workers need to achieve peak efficiency, with trouble-free reliability – the TC72 and TC77 Android Touch Computers. This family builds on the highly successful TC7 Series family to create the ultimate ultra-rugged all-touch computer for all workers inside and outside the four walls – a smartphone experience for maximum simplicity, construction designed to withstand years of the toughest everyday use and abuse, and a new platform offering more capabilities than any other device in this class. The TC72 and TC77 – for a real competitive edge at the edge of your business, delivered.

THE ULTIMATE USER EXPERIENCE

Android for Instant Familiarity

Your workers already know how to use an Android device, virtually eliminating training time and adoption curves. And you can deliver the highly graphic interactive apps today’s workers expect.

Advanced Touchscreen Technology

Give your workers touchscreen simplicity. The high-definition display offers plenty of real estate for graphics-intensive intuitive applications. The easy, familiar and flexible multi-touch operation works even when wet, with a gloved finger or a stylus. And with best-in-class outdoor readability, the screen is easy to read, even in bright sunlight.

Super Simple Data Capture – From Barcodes to Labels and Documents

Advanced scanning technology and PRZM Intelligent Imaging deliver lightning fast capture of printed and electronic 1D and 2D barcodes, including Digimarc – regardless of condition. The expanded working range and wide field of view allow workers to scan barcodes nearer and farther away, while omnidirectional scanning delivers true point and shoot performance – no need to ever align the device with the barcode.

Need to capture multiple barcodes on a single label or data on a form, such as checkboxes, text fields, signatures and more? You can do it all with the press of a single button with Zebra’s SimulScan, a no-cost pre-installed Mobility DNA application.

Full Shift Power Your Workers Can Count On

The PowerPrecision+ high capacity battery delivers up to an impressive 15 hours of power – plenty for the longest shift. With Warm Swap mode, swapping batteries is fast and easy – there’s no need to turn off the device or close active apps. And with fast charging, batteries are fully charged and ready to go in record time.

Complete Cellular Network Flexibility with Single Device Simplicity

No matter where your workers are, you can give them dependable cellular service. Simultaneous support for two carriers is ideal for workers that travel to areas better served by different carriers. And aggregated carrier support delivers faster upload and download speeds. Also, the TC77 is certified on leading public safety networks, including AT&T FirstNet and Verizon, assuring responders have the connectivity they need even when networks are overloaded in crisis situations.

Support for the Latest WiFi Enhancement Improves WiFi Range and Speed – With Less Power

Provide your users with faster and more reliable WiFi connections with 2×2 Multiple-User Multiple Input Multiple Output (MU-MIMO) technology. Your access points can now communicate with multiple devices simultaneously via pinpoint beamforming, boosting WiFi network capacity, speed and range.

Product Type: Smartphone
Technical Information
Phone Style: Bar
Sensor Type:

• Light Sensor
• Motion Sensor
• Pressure Sensor
• eCompass
• 3-axis Accelerometer
• Three-axis Gyro

Processor
Processor Speed: 2.20 GHz
Processor Core: Octa-core (8 Core)
Chipset
Chipset Manufacturer: Qualcomm
Chipset Model: Snapdragon 660
Memory
Built-in Memory: 32 GB
Standard Memory: 4 GB
Memory Card Slot: Yes
Memory Card Supported:

• microSD
• SDHC
• SDXC

Maximum Memory Card Size Supported: 256 GB
Display & Graphics
Screen Size: 4.7″
Screen Mode: HD
Screen Resolution: 1280 x 720
Touchscreen Information
Touchscreen: Yes
Touchscreen Type: Capacitive
Camera
Rear Camera: Single
Rear Camera Resolution: 13 Megapixel
Front Camera: Single
Front Camera Resolution: 5 Megapixel
Built-in Flash: Yes
Input Devices
Input Method: Touchscreen
Software
Operating System: Android
Operating System Version: Android 11
Network & Communication
Contract Type: SIM-free
Multi-SIM Supported: Yes
Number of SIM Card Supported: 2
SIM Size Supported: Nano
Cellular Network Supported:

• LTE 700
• LTE 800
• LTE 850
• LTE 900
• LTE 1800
• LTE 1900
• LTE 2100
• LTE 2600
• LTE 2300
• LTE 2500
• GSM 850
• GSM 900
• GSM 1800
• GSM 1900
• WCDMA 850
• WCDMA 900
• WCDMA 1900
• WCDMA 2100

Cellular Generation: 4G
Cellular Data Connectivity Technology:

• LTE
• UMTS
• HSPA
• HSPA+
• EDGE
• GPRS

GPS Receiver: Yes
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.0 BLE
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w
Near Field Communication: Yes
Interfaces/Ports
USB: Yes
USB Standard: USB 2.0
Battery Information
Battery Capacity: 4620 mAh
Physical Characteristics
Height: 6.3″
Width: 3.3″
Depth: 1.1″
Weight (Approximate): 13.30 oz
Miscellaneous
Country of Origin: China
Warranty
Limited Warranty: 1 Year
