9AA699

THE ULTIMATE COST-EFFECTIVE MOBILE COMPUTER BUILT FOR HEALTHCARE

With the affordable TC21-HC and TC26-HC mobile computers, you can give all your clinical and non-clinical healthcare workers the tools they need to act more efficiently, improve task accuracy and deliver the highest quality patient care. The Wi-Fi TC21-HC and Wi-Fi/cellular TC26-HC are small, easy-to-carry, yet big on features. Advanced mobile technologies, including an optional 2.2 GHz processor, provide the power to run all the healthcare applications you use today and tomorrow. The durable design and removable batteries deliver dependable around-the-clock operation. The housing is specially built for constant disinfecting. Integrated barcode scanning error-proofs patient identification, medication administration and more. Zebra’s leading voice solutions turn these devices into two-way radios and mobile PBX handsets. And powerful new Zebra Mobility DNA™ tools expand data capture capabilities and simplify device management for any size deployment.

Best-in-class disinfectant-ready design

Chemical resistant healthcare plastics withstand regular cleaning with over 30 disinfectants. The housing design minimizes crevices where bacteria can hide. And a pre-installed plug prevents bacteria from hiding in the USB-C port.

Plenty of display space for all your applications

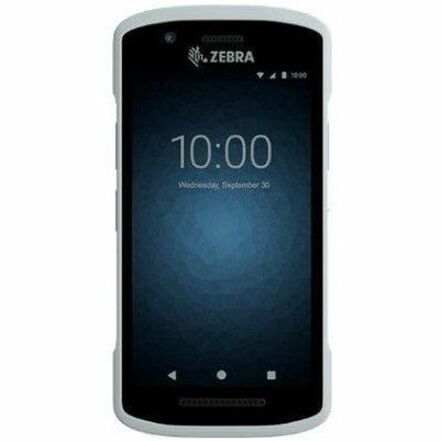

The large 5-inch advanced HD touchscreen is easy to see indoors and in bright sunlight. And capacitive multi-touch technology delivers instant familiarity – and even works with gloves.

Around-the-clock durability

Virtually waterproof, dustproof, drops, snow, rain, heat, freezing cold – the TC21-HC/TC26-HC can handle it all. And two of the most crucial yet vulnerable features are fortified with scratch-and-shatter-resistant Gorilla Glass – the display and scanner exit window.

Healthcare Alert button for rapid response

In the event of an emergency, staff can call for help with a split-second press of this programmable key.

Around-the-clock power with removable batteries

Just swap in a fully-charged PowerPrecision battery for more than enough power to last beyond a full shift.¹

Capture Unique Device Identifier (UDI) barcodes

Support for Unique Device Identification (UDI) barcodes enables better tracking and management of medical assets and equipment. Caregivers can check to see if medical equipment has been recalled before use, protecting patient safety. And improved inventory tracking ensures that charges for all items are captured and helps prevent risky out of stocks.

Effortlessly and accurately capture identification information

Zebra’s optional OCR Wedge effortlessly captures standardized data, such as information on driver’s licenses and identification cards to streamline patient intake processes.

The power to run all your applications – today and tomorrow

With a choice of a 1.8 GHz or 2.2 GHz advanced Qualcomm octa-core processor, the TC21-HC/TC26-HC delivers desktop-like performance on all your applications, including EHR apps from Cerner and Epic, voice, video and messaging solutions, medication administration, specimen tracking and many more.

Android familiarity

Virtually eliminate training with the familiarity of Android; built-in support of future Android releases provides superior future-proofing.

LifeGuard^TM– a lifetime security guard for Android

Included at no cost with your Zebra OneCare^TMmaintenance plan, LifeGuard™ for Android™ provides security patches and updates to keep devices secure, with options that give you fu
Product Type: Handheld Terminal
Technical Information
Connectivity Technology: Wireless
Google Mobile Services (GMS): Yes
Sensor Type:

• Light Sensor
• Motion Sensor
• Proximity
• Gyroscope
• Accelerometer

Multi-SIM Supported: Yes
SIM Size Supported: Nano/eSIM
Features:

• Water Resistant
• Gorilla Glass
• Push-to-talk
• Chemical Resistant

Drop Specification: 4 ft./1.2 m drops to vinyl tile over concrete per MIL-STD 810G across operating temperature

Illumination Type: LED
Illumination Color: White
Processor & Chipset
Processor Manufacturer: Qualcomm
Processor Type: Snapdragon
Processor Model: 660
Processor Core: Octa-core (8 Core)
Processor Speed: 1.80 GHz
Memory
Standard Memory: 3 GB
Flash Memory: 32 GB
Memory Card Supported: microSD
Display & Graphics
Screen Size: 5″
Screen Mode: HD
Screen Resolution: 1280 x 720
Display Screen Type: LED
Touchscreen Information
Touchscreen: Yes
Multi-touch Screen: Yes
Keyboard/Keypad
Buttons & Keys:

Scan on each side; volume up/down; power; push-to-talk (PTT) keys; HC Alert key

Network & Communication
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.0 BLE
Near Field Communication (NFC): Yes
Cellular Data Connectivity Technology:

• 4G
• UMTS
• LTE

GPS: Yes
Global Navigation Satellite System (GNSS) Supported: BeiDou/Galileo/GLONASS
Interfaces/Ports
USB: Yes
USB Type-C: Yes
Camera
Front Camera: Yes
Front Camera Resolution: 5 Megapixel
Rear Camera: Yes
Rear Camera Resolution: 13 Megapixel
Software
Operating System: Android 10
Power Description
Power Source: Battery
Battery Information
Battery Capacity: 3100 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Included: Yes
Removable Battery: Yes
Environmental Conditions
Operating Temperature: 14°F (-10°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Phone-size
Rugged: Yes
Width: 3.1″
Depth: 0.5″
Length: 6.1″
Weight (Approximate): 8.43 oz
Miscellaneous
Package Contents:

• TC26-HC Handheld Terminal
• Battery

Application/Usage: Healthcare
Ingress Protection (IP) Rating: IP67
Environmentally Friendly: Yes
Environmental Certification:

• RoHS
• REACH

TAA Compliant: Yes
Warranty
Limited Warranty: 1 Year
Additional Warranty Information:

Subject to the terms of Zebra’s hardware warranty statement, the TC21-HC and TC26-HC are warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment.
