HJ9188

Simplify your checkout experience and improve your bottom line with high-performance in-counter and on-counter scanning

A long wait at the checkout line is the last thing a customer wants. One-quarter of shoppers have admitted to abandoning a purchase

due to long lines.1 Speed up the checkout process, offer convenient self-checkout options and prevent lost sales with the SP72

Series. These high-performance single-plane scanners deliver everything you need to elevate the checkout experience in grocery,

convenience, pharmacy and specialty stores. With innovative features, including an optional color camera to enable vision-based

applications 2 , the SP72 Series scanner frees associates to do higher-priority tasks and better serve shoppers while minimizing the risk

of shrink. Available in both horizontal and vertical form factors, the SP72 Series fits wherever you need it-and is ideal for retailers that

need the performance of a multi-plane scanner, but prefer the compact size, easy installation and value of a single-plane scanner.

Fast Checkouts for Manned and Self-Checkout Lanes

Create the Perfect Checkout Solution for Your Store

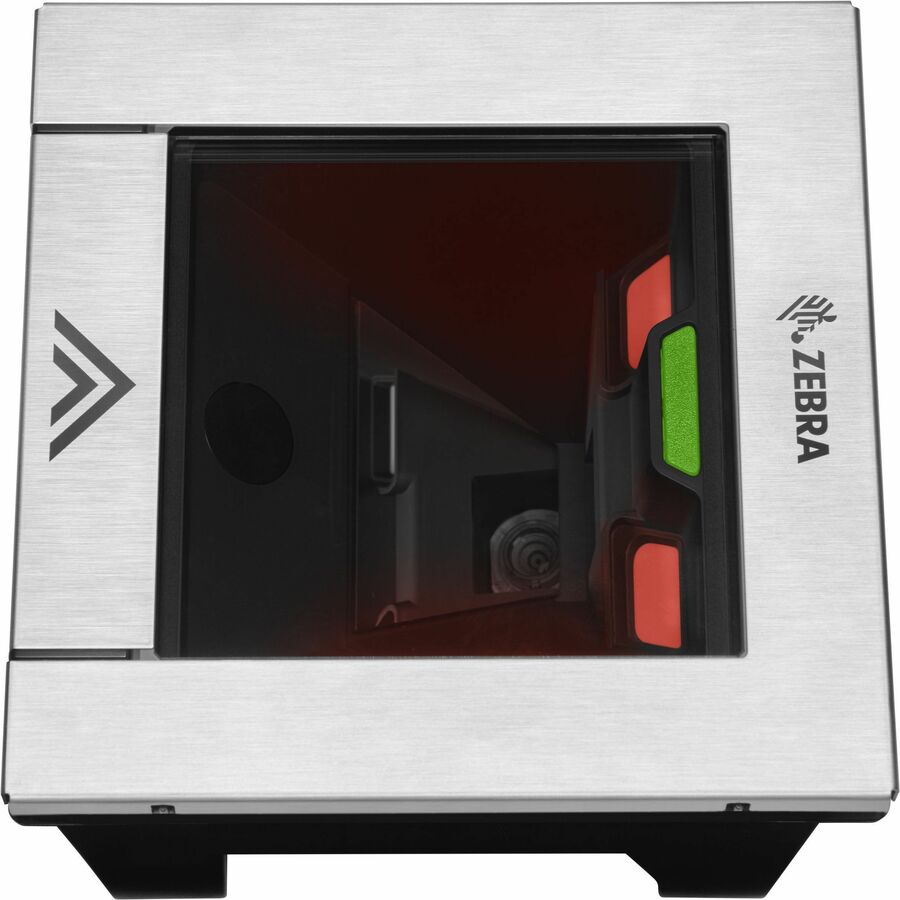

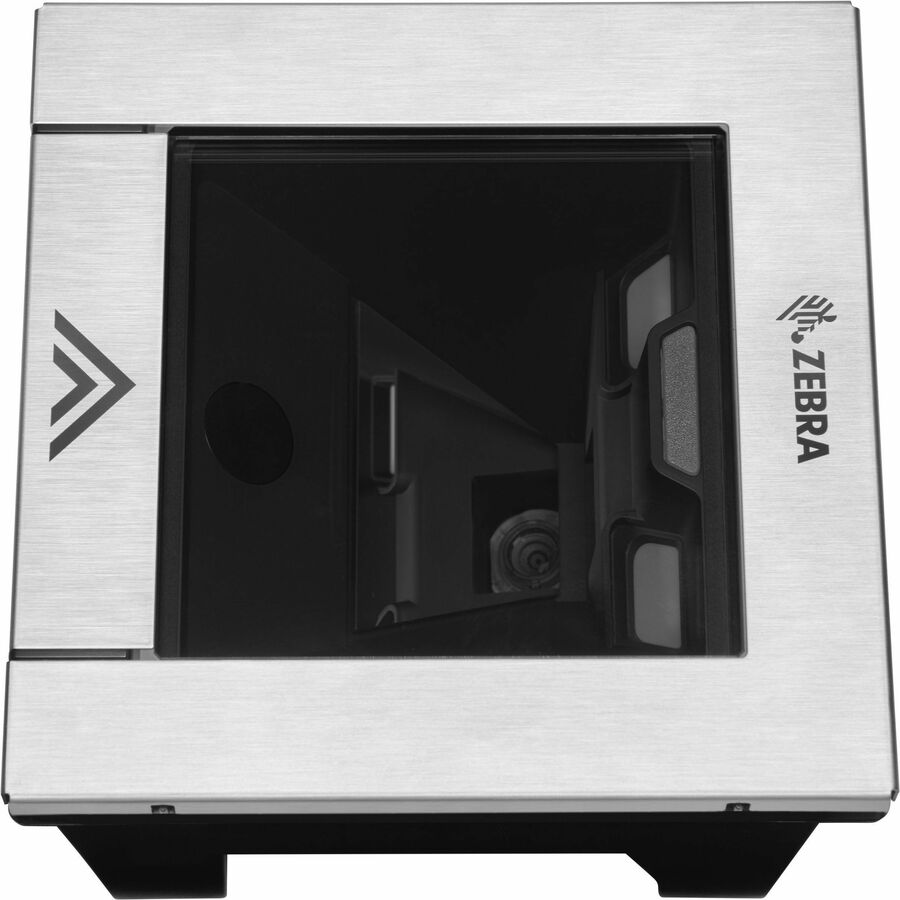

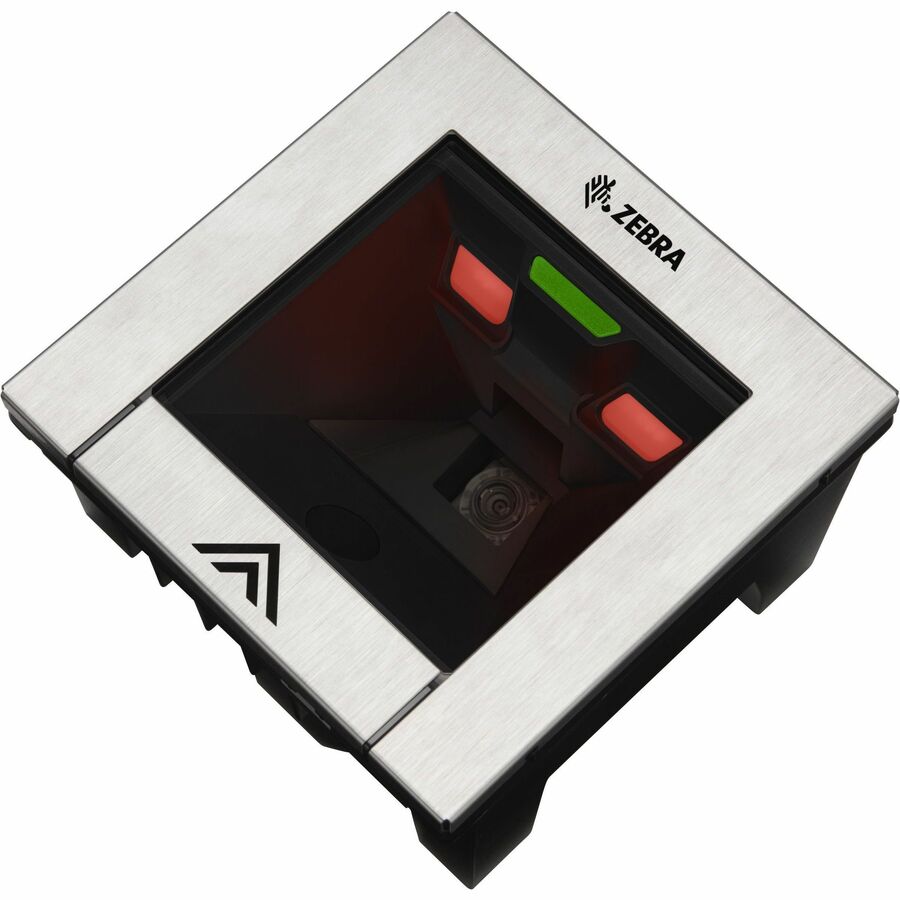

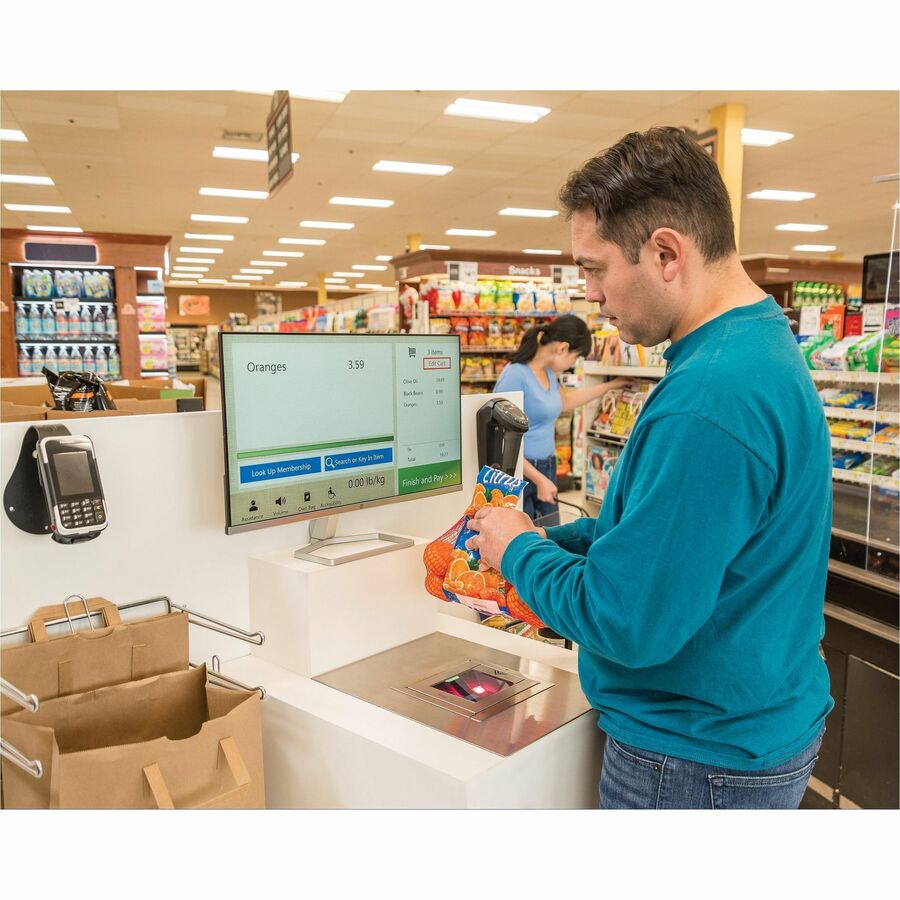

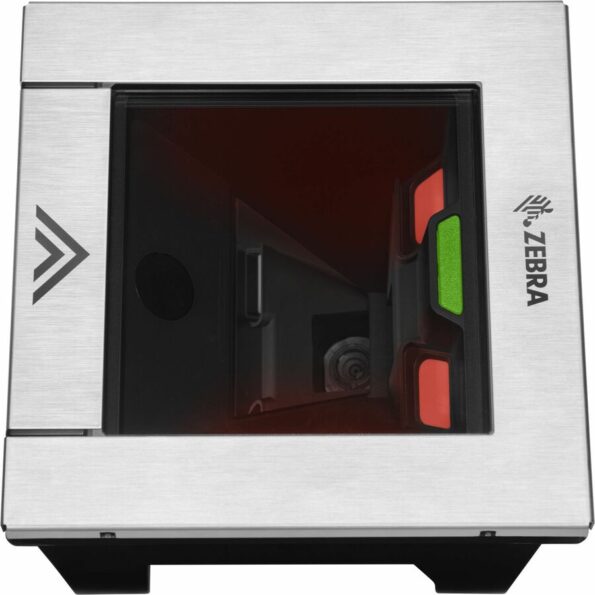

The compact vertical SP72-V can be placed on a counter or

mounted on a wall or table; its flat face design easily fits into self-

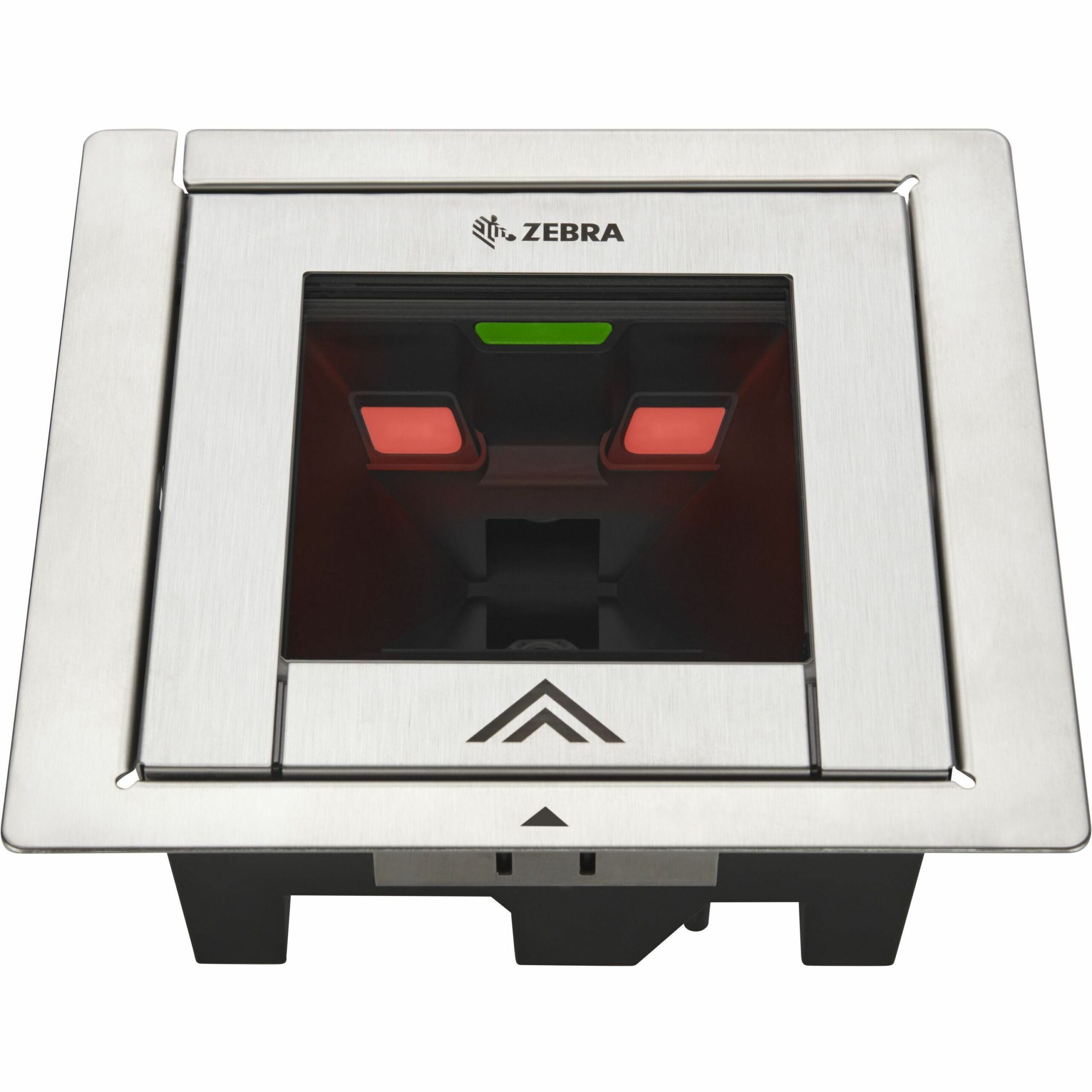

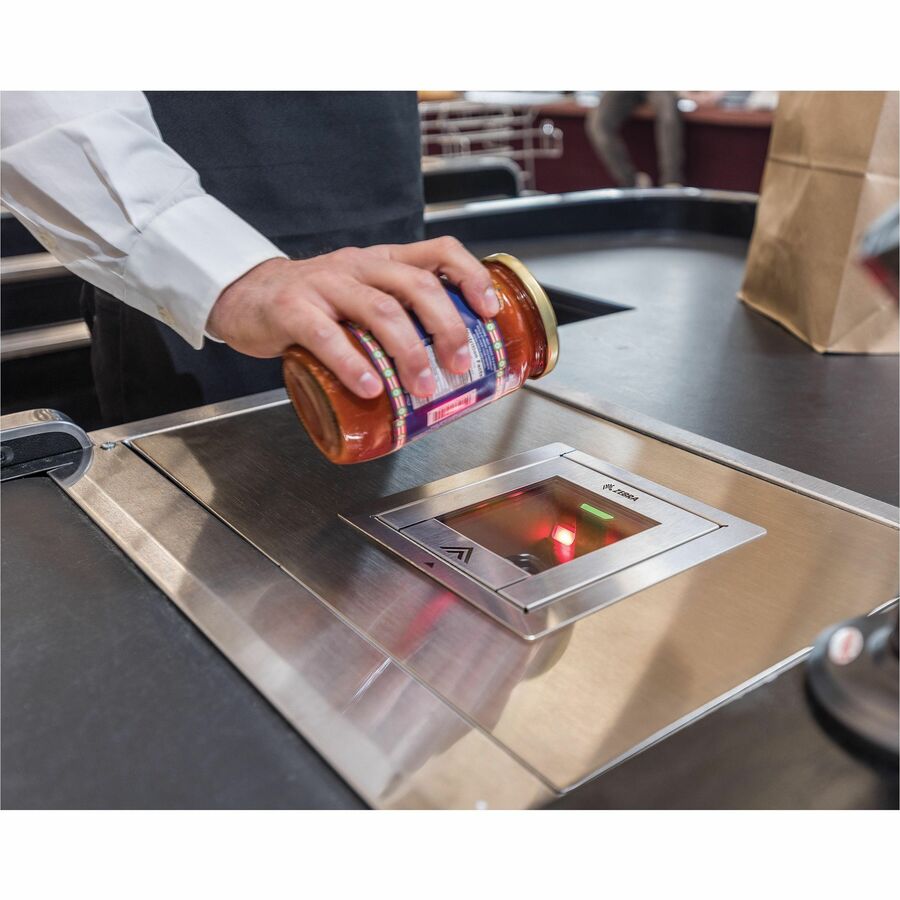

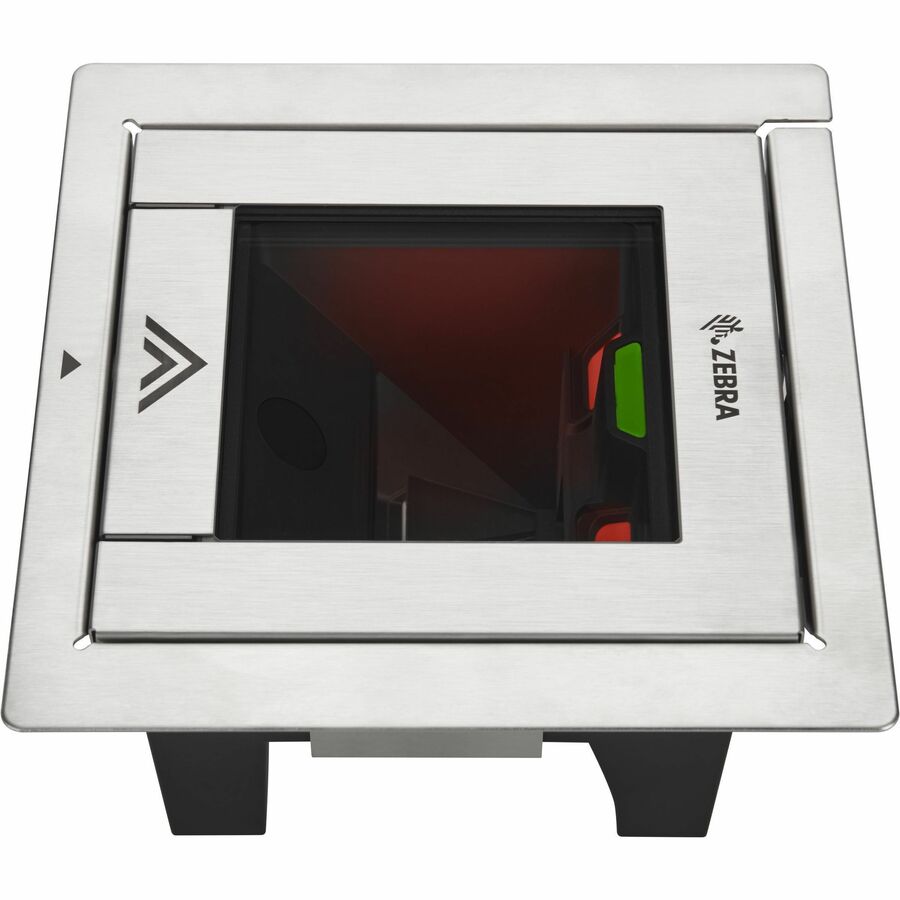

checkout enclosures and kiosks. The horizontal SP72-H offers a zero

footprint, in-counter design and is a drop-in replacement for popular

legacy installations. You can choose the level of features you need:

SP7201 for high-performance scanning with all the essential features

needed at the POS, or the premium SP7208 that offers the same

high performance, plus more advanced features such as a color

camera option for vision-based applications like loss prevention.

With “Swipe and Go” Scanning, Checkouts are Faster Than Ever

With high swipe speeds and a large reading area, the SP72 Series

makes scanning second nature. Barcodes are captured as quickly

as they’re presented. Since there’s less need to precisely position

a barcode, cashiers can focus more on the customer and self-

checkout users can enjoy a seamless experience.

Keep Every Checkout Lane Moving

Thanks to a high-resolution 2.3 megapixel sensor and Zebra’s

exclusive PRZM Intelligent Imaging technology, the SP72 Series

offers unparalleled performance on virtually any 1D, 2D, Digimarc®,

paper and mobile barcode. Poorly printed, damaged, crinkled, or

faded barcodes-the SP72 Series can capture them all. And offset

illumination enables trouble-free scanning of reflective barcodes on

glass bottles, mobile phones or cellophane packaging.

A Higher ROI for Self-Checkout-Less Shrink

Enable New Business Applications With Vision Solutions

The vertical SP72-V is the first single-plane scanner with a 2.3 MP

color camera option. 2 The camera provides a large field of view and

captures even the smallest details, enabling a wealth of vision-based

applications to help minimize shrink and fraud at self-checkout.

An application can identify a mismatch between the item scanned

and the associated barcode-for example, if a barcode from a less-

expensive item is placed on a more expensive item for purchase.

And the presence of a live video stream can deter customers from

attempting checkout fraud.

Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Wireless
Scanner Range: Standard Range
Scanning Distance: 7.64″
Features:

• Checkpoint EAS
• Sensormatic EAS
• Beep
• Notification LED

Field of View (Horizontal): 129°
Field of View (Vertical): 76°
Reading Angle (Skew): 70°
Reading Angle (Pitch): 80°
Reading Angle (Roll): 360°
Image Formats:

• BMP
• JPEG

Maximum Ambient Light: 86100 lux
Drop Specification:

5 ft./1.5 m

Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 3 mil
Maximum Element Resolution (Code 39): 10 mil
Minimum Element Resolution (DataMatrix): 5 mil
Maximum Element Resolution (DataMatrix): 15 mil
Maximum Element Resolution (PDF417): 15 mil
Illumination Type: LED
Illumination Color: Red
Interfaces/Ports
Host Interface: USB
Environmental Conditions
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 20% to 95%
Physical Characteristics
Rugged: Yes
Product Color: Midnight Black
Height: 6″
Width: 6″
Depth: 3.4″
Weight (Approximate): 1.90 lb
Miscellaneous
Ingress Protection (IP) Rating:

• IP52
• IP66

Application/Usage:

• Retail
• Pharmacy
• Convenience Store
