RS51C0-LESNWR

Wearable scanners can provide the hands-free scanning your workforce needs to maximize productivity. But today’s workers have high expectations for wearable devices a modern design, a minimal footprint, so intuitive that virtually no training is required, plus point-and-shoot scanning simplicity on every barcode. Your business requires a design that’s just as at home in customer-facing areas as the warehouse, wearable options for maximum use case flexibility, a rugged design to ensure a long lifecycle with a low Total Cost of Ownership (TCO), scanning options that match the needs of your environment, plus backroom accessories that reduce management time and cost. Now, you can have it all with the RS5100 Wearable Scanner. A comfortable, featherlight-yet-rugged industrial design that is at home anywhere in your facility. Zebra’s advanced scan engines for unmatched scanning performance. Five interchangeable wearing styles for user comfort and application flexibility. And features that drive ease-of-use and manageability to a new level.

Superior Ergonomics, Ease-of-Use and Application Flexibility

Tiny and Practically Weightless For Extreme Comfort

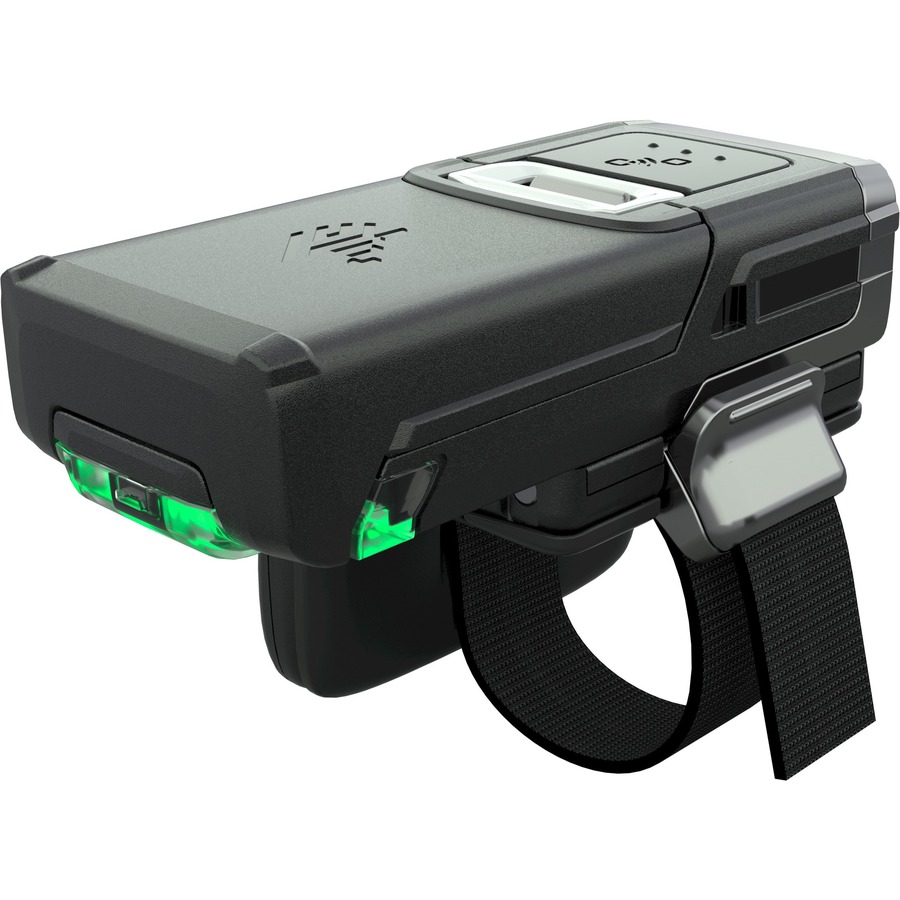

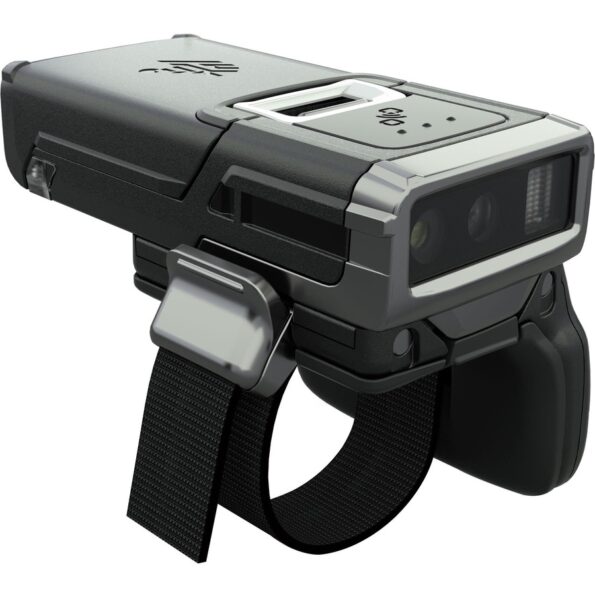

The small, light, low-profile RS5100 is purposefully understated at just over two ounces and two cubic inches and the low-profile prevents obstruction when reaching into tight locations.

Five Interchangeable Wearing Styles

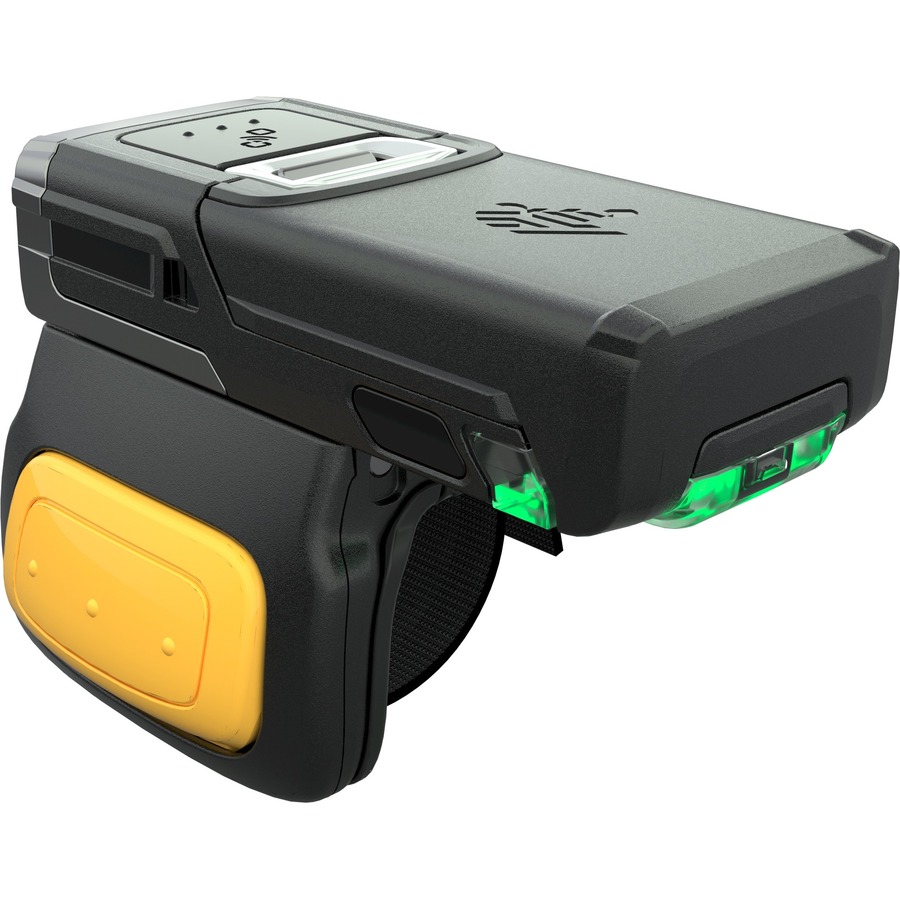

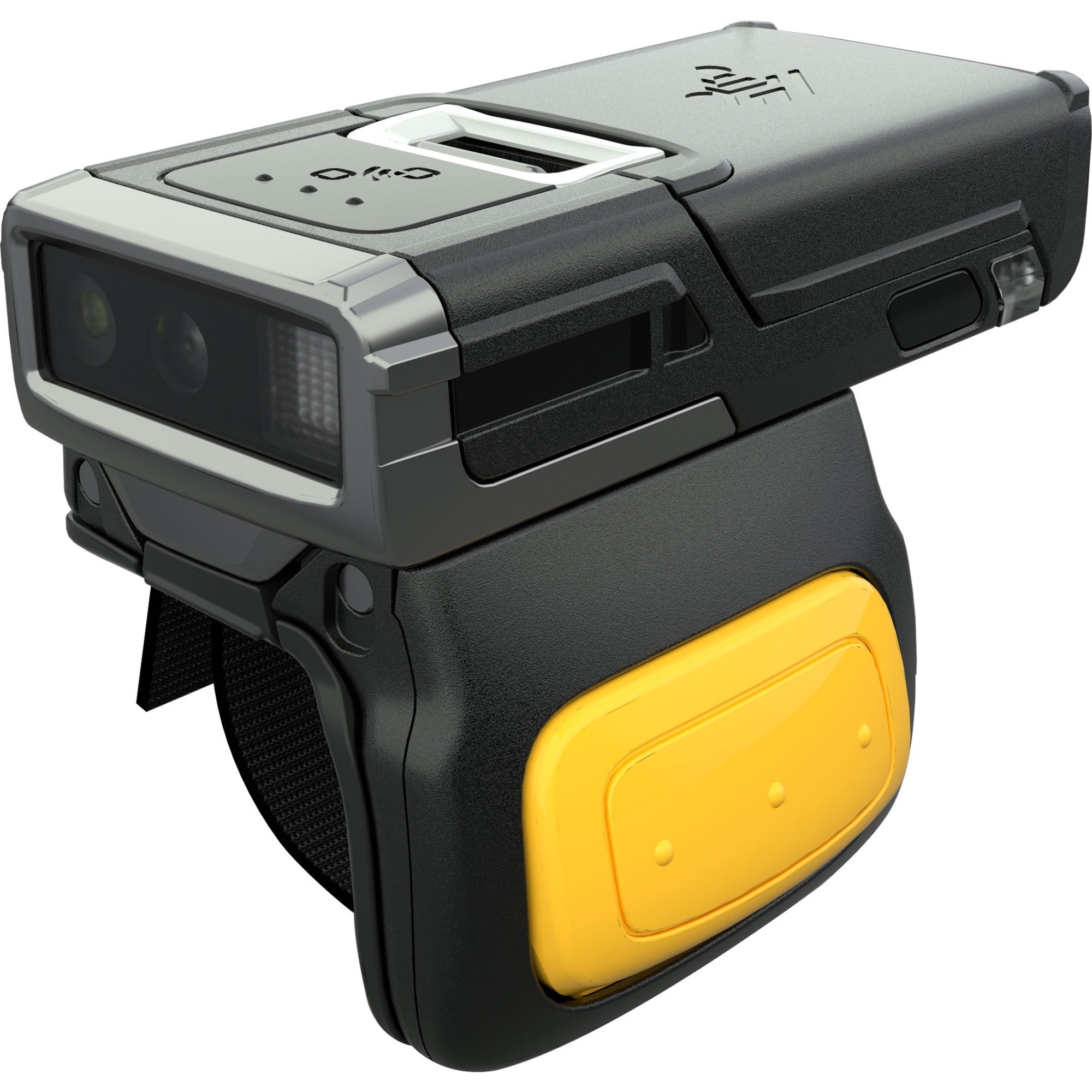

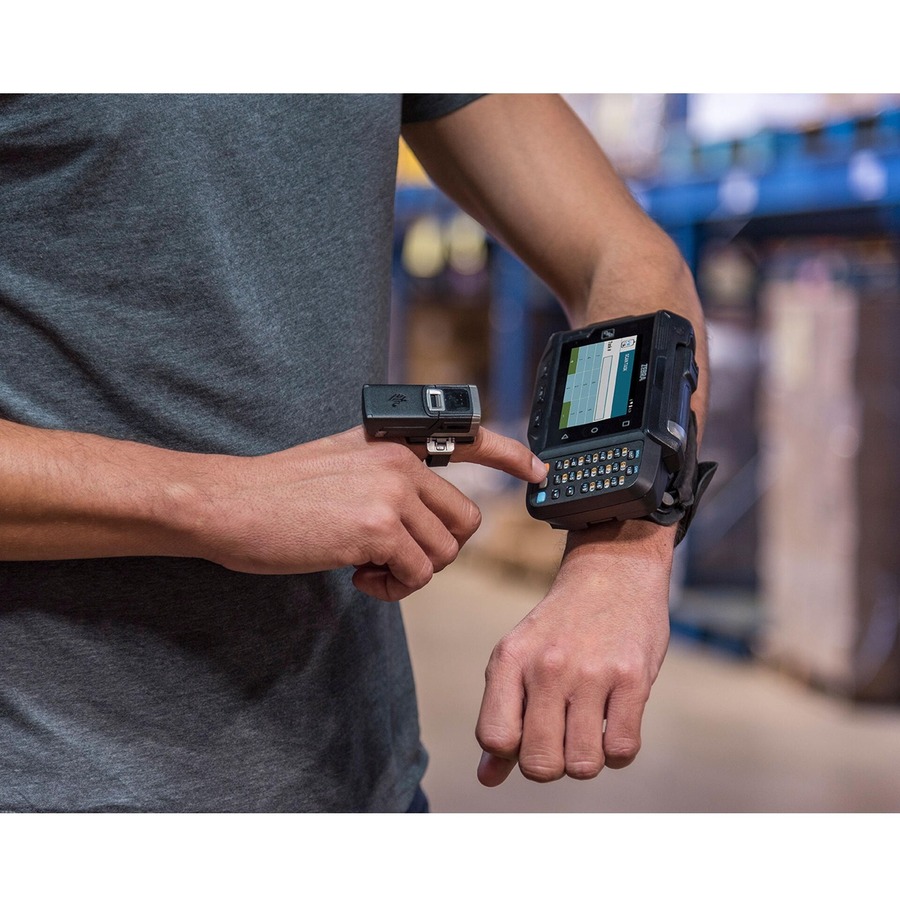

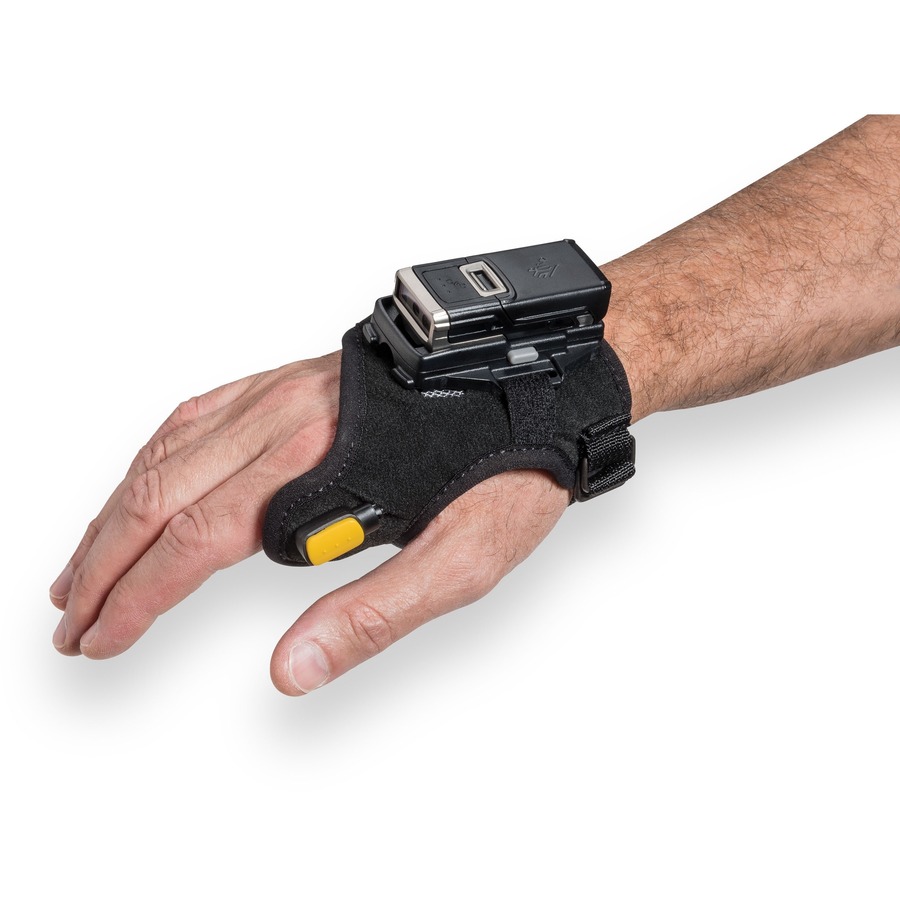

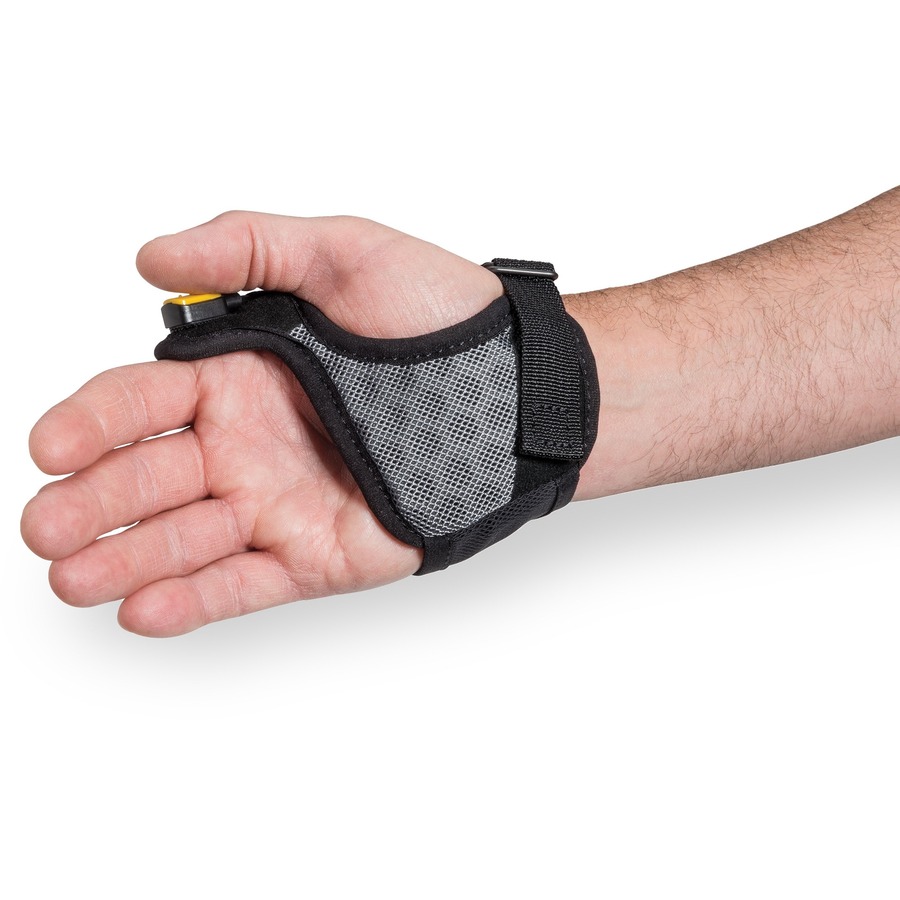

All mounting accessories are interchangeable swap at any time to improve user comfort, address user preference or deploy in a different use case. Give every hand a snug, comfortable and secure custom fit with the new Enterprise Hand Mount accessory, which offers a range of sizes for right and left hands. And users can adjust the scanner position on the hand to achieve the perfect balance and optimal scan angle for the ultimate in comfort and user productivity. For workers who prefer to wear the scanner like a ring, there is a single finger mount with three trigger options single, double and top-mounted. The single trigger rotates between right and left sides, allowing users to choose and easily switch scanning hands. The double trigger enables workers to change hands on the fly. The industry-first top-mounted trigger allows the RS5100 to be rotated to the side of the finger, eliminating any protrusion above the hand. A one-size-fits-all back of hand mount allows workers to reach into small spaces, is ambidextrous and easily adjustable to accommodate gloves. And a retracting lanyard trigger worn around the neck or on a belt keeps the scanner handy yet out of the way ideal for occasional scanning.

Freedom From Cords and Cables

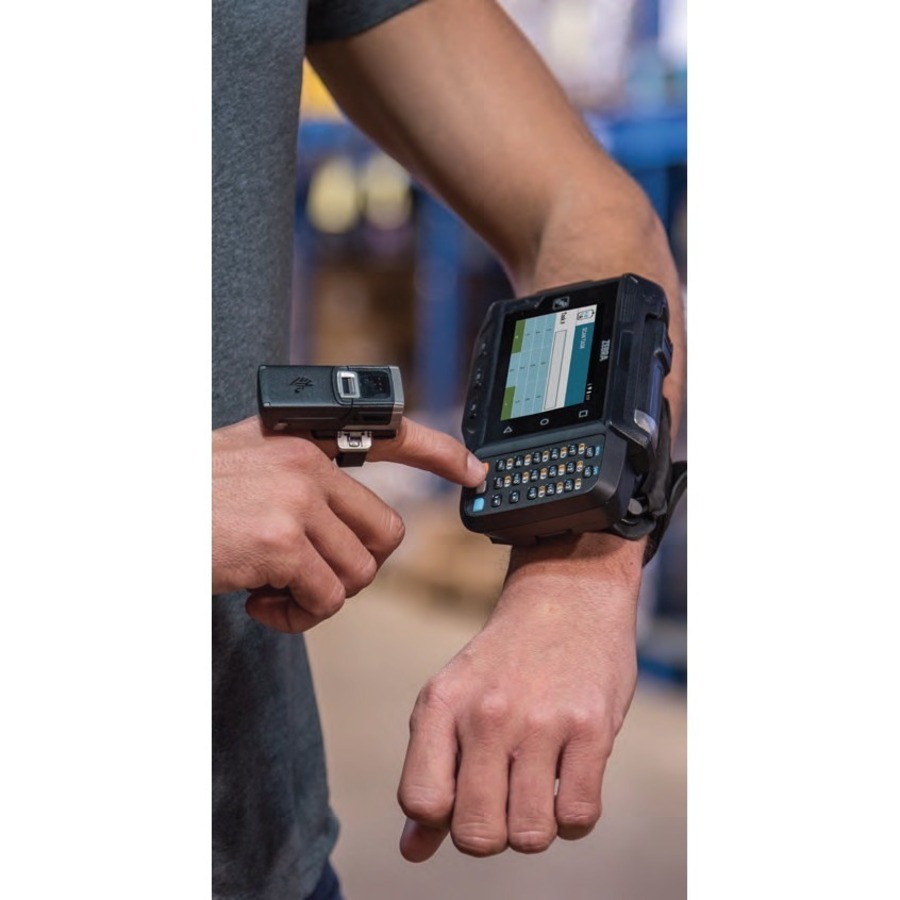

With Bluetooth, there’s no cable to the host device for workers to manage hands-free scanning improves comfort, usability and productivity.
Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported: 1D:

• Code 39
• Code 128
• Code 93
• Codebar/NW7
• Code 11
• MSI
• UPC/EAN
• I 2 of 5
• Korean 3 of 5
• GSI DataBar
• Base 32 (Italian Pharma)

2D:

• PDF417
• Micro PDF417
• Composite Codes
• TLC-39
• Aztec
• DataMatrix
• MaxiCode
• QR Code
• Micro QR
• Chinese Sensible (Han Xin)
• Postal Codes

OCR:

• OCR-A
• OCR-B

Scan Engine Model: SE4710
Light Source: LED
Scanner Range: Standard Range
Scanning Distance: 30″
Field of View (Horizontal): 42°
Field of View (Vertical): 28°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Maximum Ambient Light: 107639 lux
Drop Specification: Multiple 6 ft./1.8 m drops to concrete over the operating temperature range
Minimum Element Resolution (Code 39): 4 mil
Maximum Element Resolution (Code 39): 20 mil
Maximum Element Resolution (DataMatrix): 10 mil
Maximum Element Resolution (PDF417): 5 mil
Network & Communication
Bluetooth: Yes
Battery Information
Battery Included: Yes
Physical Characteristics
Form Factor: Wearable
Rugged: Yes
Product Color:

• Black
• Silver

Width: 1.1″
Depth: 0.8″
Length: 2.7″
Weight (Approximate): 2.47 oz
Miscellaneous
Package Contents:

• RS5100 Bluetooth Wearable Scanner
• Battery

Ingress Protection (IP) Rating: IP65
Application/Usage:

• Warehouse
• Distribution
• Picking
• Packing
• Sorting
• Transportation
• Logistics
• Manufacturing
• Inventory
• Retail
• Hospitality
• Price Checking
• Field Sales/Service
• Route Accounting
• Industrial
• Smartphone

Environmentally Friendly: Yes
Environmental Certification:

• RoHS
• REACH

Warranty
Limited Warranty: 1 Year
