7AK020

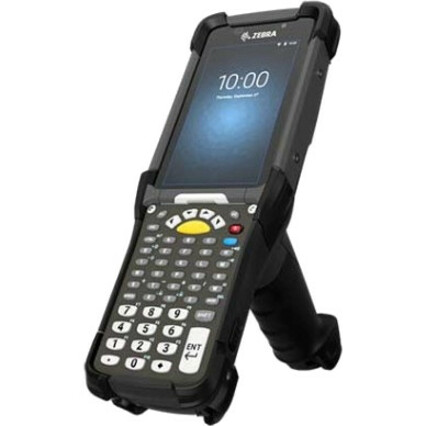

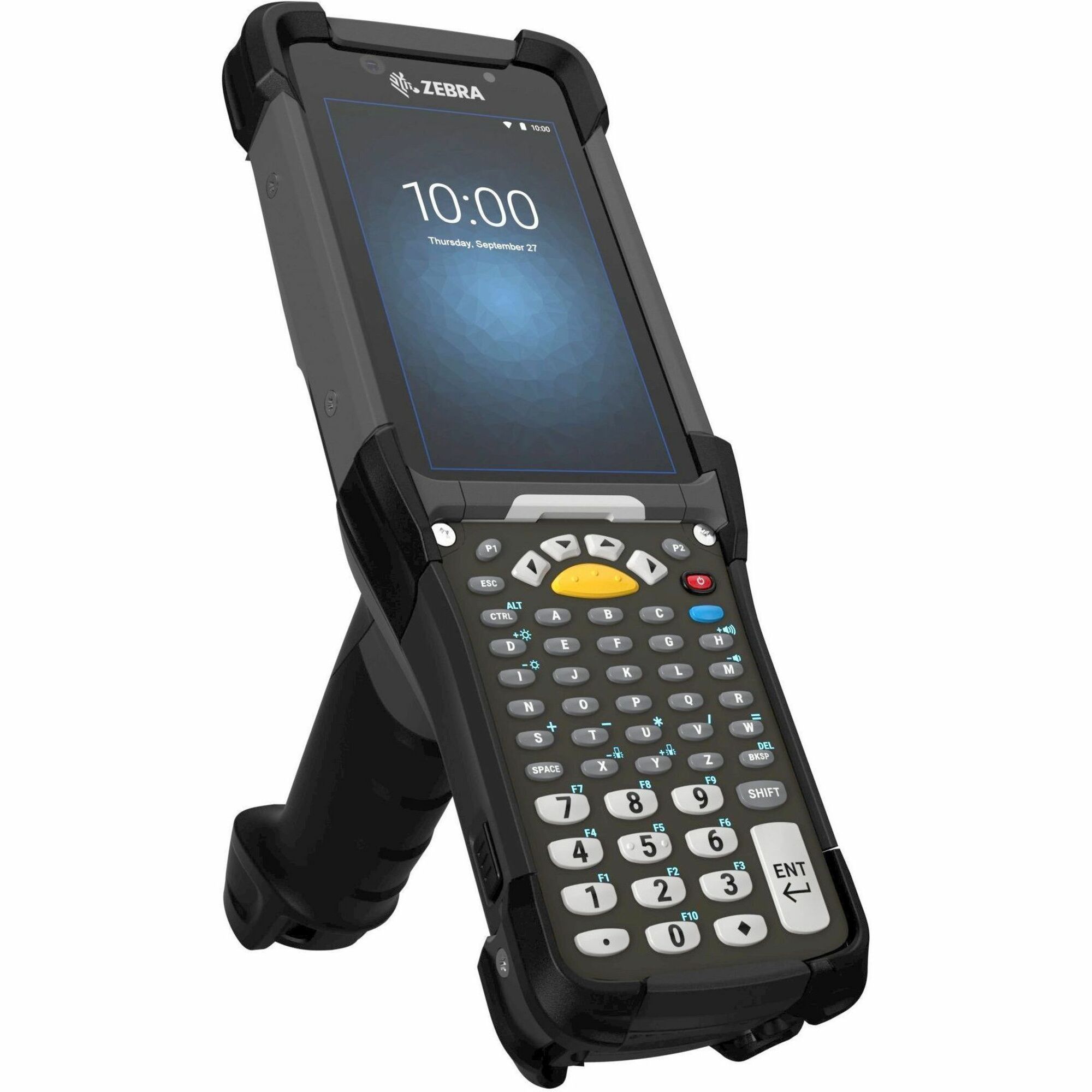

The ultimate Android ultra-rugged combination keypad/touch mobile computer

Every day, over three million workers use an MC9000 Series mobile computer to streamline processes in warehouses and manufacturing plants all over the world. But now you need to handle and ship more orders every day, faster than ever. Introducing the mobile computer that can get it done, the MC9300 – the next evolution of the world’s best-selling and most trusted enterprise mobile computer. Your workers get the ultimate in simplicity with Android, an operating system your workers already know well, a larger advanced touch display and more. Handle all of your applications with the ultimate in processing power and memory. New data capture capabilities include optional front and back cameras, extraordinary scan ranges and superior direct part mark (DPM) capture. The new battery runs twice as long as the MC9200 on a single charge. It’s the most rugged MC9000 Series ever created, ready to outlast virtually every device in its class in any environment – including the freezer. New Mobility DNA solutions make device, OS security and battery management easy, while delivering better-than-ever robust wireless connections. And since you can run your existing TE apps right out of the box, migrating to Android couldn’t be easier.

The Ultimate Android Platform

Maximum processor power and memory

The ultra-powerful 8-core processor combines with up to eight times the RAM and 16 times the Flash memory of the MC9200 to deliver superior performance on all your voice and data apps.

Power a full shift and beyond with maximum battery power

The PowerPrecision+ battery delivers the most battery power in its class – nearly twice the battery run time of the MC9200, plus fast charging and a wealth of battery statistics to better manage your battery pool. And with PowerPrecision Console, a free PC-based Mobility DNA tool, it’s easy to identify and discard aging batteries, before they impact workforce productivity and your operations.

Dependably superior WiFi connections

With 2×2 Multiple-User Multiple Input Multiple Output (MU-MIMO) technology and Worry Free WiFi, a free Mobility DNA tool, you get increased WiFi range and speed, near instant application response times, unmatched roaming, exceptional voice quality and network diagnostics that help keep your WiFi network up and running at peak performance.

A lifetime security guard for Android

With LifeGuard for Android, you get the security updates you need to keep your Zebra Android devices secure every day they are in service – along with easy end-to-end control of the OS update process, plus support for future versions of Android.

The Ultimate in Application Support

Run your Terminal Emulation (TE) apps, right out of the box

Integrated support for your TE apps makes it easy to migrate from Windows to Android – no backend modification or user training required. And when you’re ready to turn your ‘green screen’ TE apps into elegant touch-centric intuitive screens to boost productivity, Mobility DNA’s All-touch TE makes it easy.

Larger touchscreen with advanced technology

The large multi-touch 4.3 in. WVGA display allows your workers to view more business data, while providing best-in-class indoor/ outdoor readability and data input flexibility. Use a finger – even with a thick glove – or a stylus. And users can interact with the screen even if the display is wet.

Product Type: Handheld Terminal
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 2D
• 1D

Scan Engine Model: SE4770
Image Sensor Type: Imager
Scanner Range: Standard Range
Google Mobile Services (GMS): Yes
Sensor Type:

• Ambient Lighting
• Accelerometer
• Gyroscope

Features:

• Gorilla Glass
• Drop Resistant

Drop Specification:

7 ft. (2.1m) drops to concrete across temperature per MIL-STD-810G.

Processor & Chipset
Processor Manufacturer: Qualcomm
Processor Type: Snapdragon
Processor Model: 660
Processor Core: Octa-core (8 Core)
Processor Speed: 2.20 GHz
Memory
Standard Memory: 4 GB
Flash Memory: 32 GB
Memory Card Supported:

• microSD
• SDHC
• SDXC

Display & Graphics
Screen Size: 4.3″
Screen Mode: WVGA
Screen Resolution: 800 x 480
Display Screen Type: LED
Touchscreen Information
Touchscreen: Yes
Multi-touch Screen: Yes
Keyboard/Keypad
Number of Keys: 53
Keyboard Type: Alphanumeric
Network & Communication
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11a/b/g/n/ac/d/h/i/k/r/w
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.0 BLE
Near Field Communication (NFC): Yes
Interfaces/Ports
USB: Yes
Software
Operating System: Android 8.1 Oreo
Power Description
Power Source: Battery
Battery Information
Battery Capacity: 5000 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Included: Yes
Battery Voltage: 3.60 V
Environmental Conditions
Operating Temperature: -22°F (-30°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Rugged: Yes
Height: 7.4″
Width: 3.5″
Length: 9.4″
Weight (Approximate): 1.68 lb
Miscellaneous
Package Contents:

• MC9300 Handheld Mobile Computer
• Battery

Application/Usage:

• Logistics
• Manufacturing
• Cold Chain
• Government
• Retail

Ingress Protection (IP) Rating:

• IP67
• IP65

Environmentally Friendly: Yes
Environmental Certification:

• RoHS
• REACH

Warranty
Limited Warranty: 1 Year
