6XB238

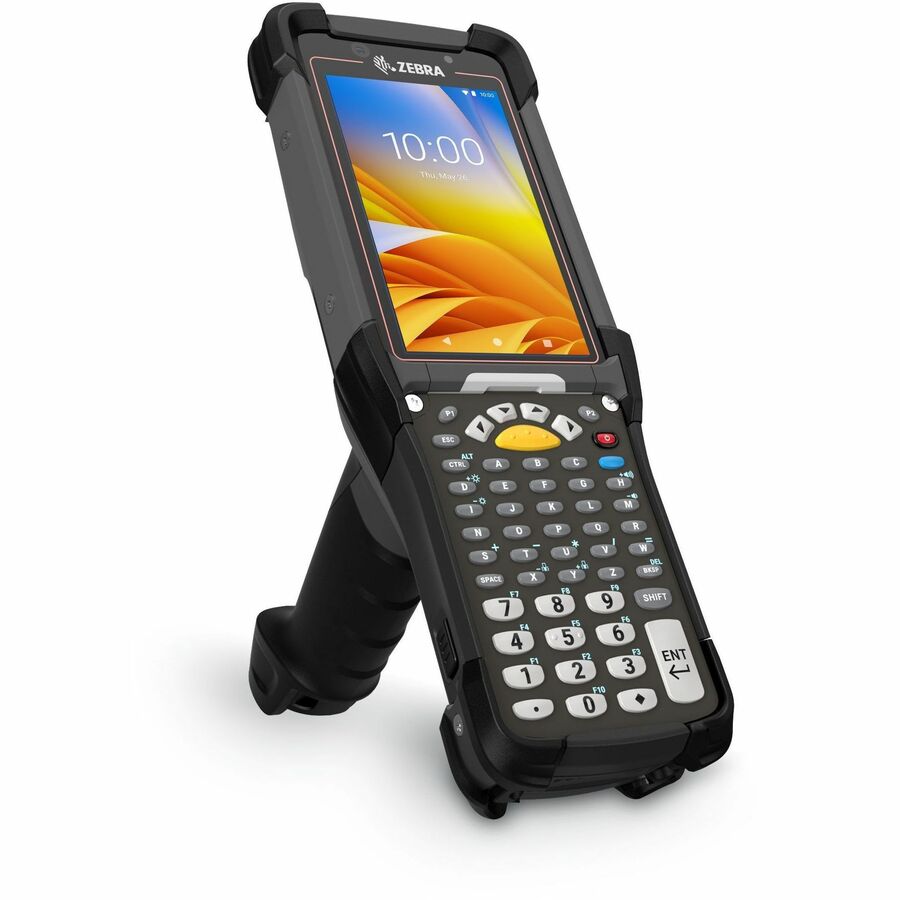

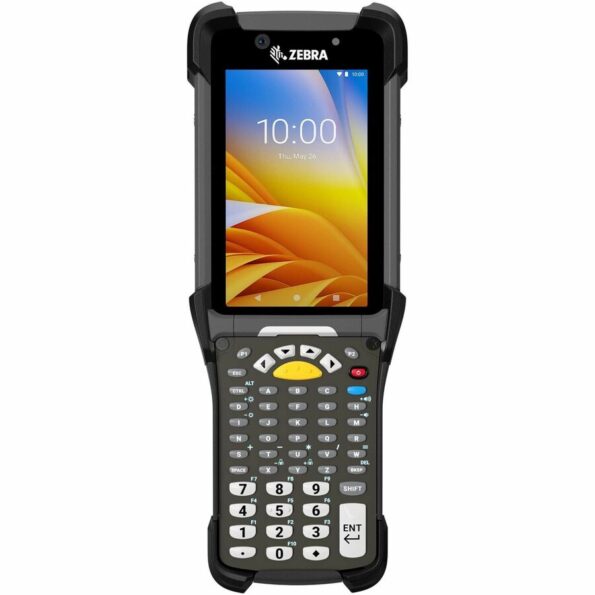

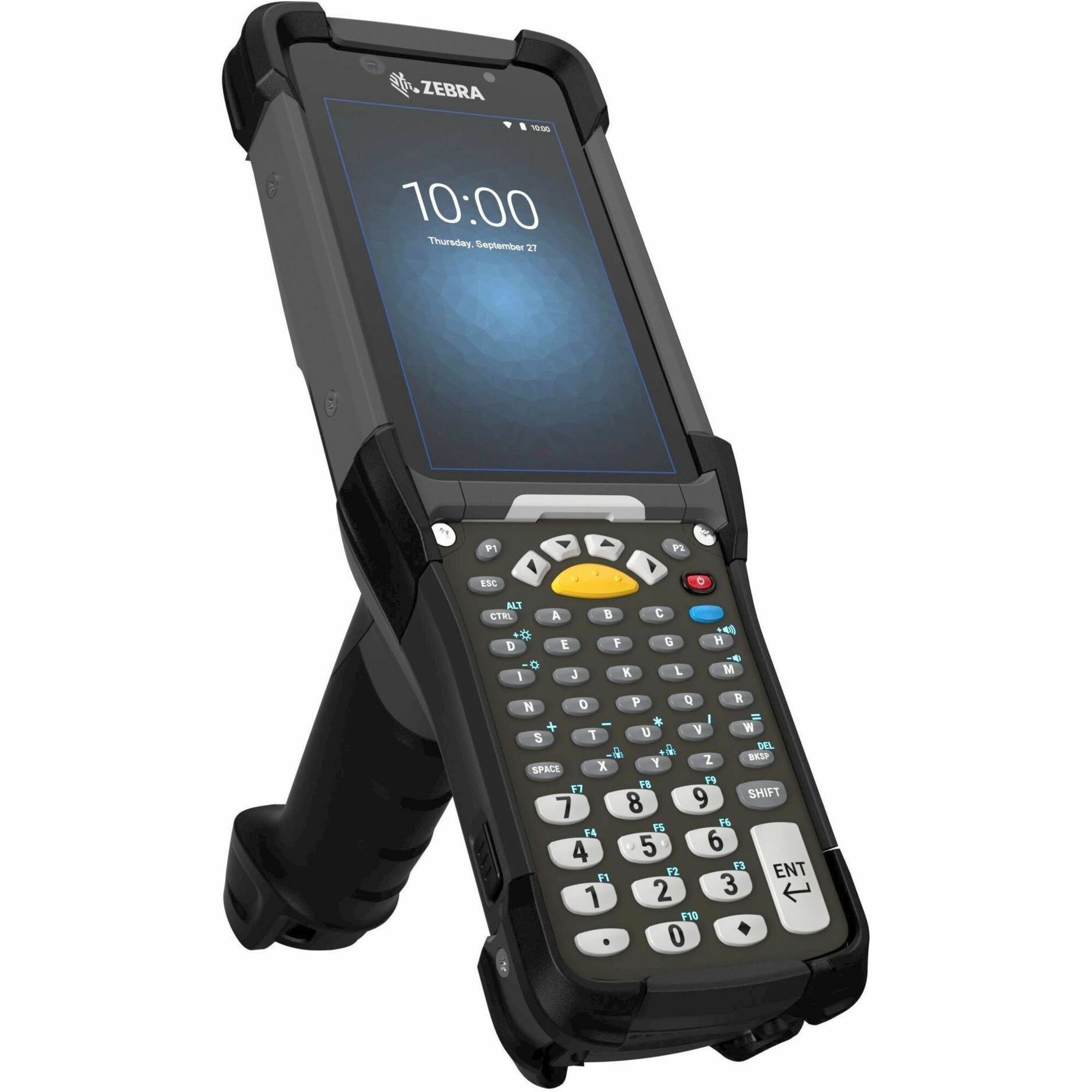

THE ULTIMATE ANDROID™ ULTRA-RUGGED COMBINATION KEYPAD/TOUCH MOBILE COMPUTER

Every day, over three million workers use an MC9000 Series mobile computer to streamline processes in warehouses and manufacturing plants all over the world. But now you need to handle and ship more orders every day, faster than ever. Introducing the mobile computer that can get it done, the MC9300 – the next evolution of the world’s best-selling and most trusted enterprise mobile computer. Your workers get the ultimate in simplicity with Android, an operating system your workers already know well, a larger advanced touch display and more. Handle all of your applications with the ultimate in processing power and memory. New data capture capabilities include optional front and back cameras, extraordinary scan ranges and superior direct part mark (DPM) capture. The new battery runs twice as long as the MC9200 on a single charge. It’s the most rugged MC9000 Series ever created, ready to outlast virtually every device in its class in any environment – including the freezer. New Mobility DNA solutions make device, OS security and battery management easy, while delivering better-than-ever robust wireless connections. And since you can run your existing TE apps right out of the box, migrating to Android couldn’t be easier.

Power a full shift and beyond with maximum battery power

The PowerPrecision+ battery delivers the most battery power in its class – nearly twice the battery run time of the MC9200, plus fast charging and a wealth of battery statistics to better manage your battery pool. And with PowerPrecision Console, a free PC-based Mobility DNA tool, it’s easy to identify and discard aging batteries, before they impact workforce productivity and your operations.

Dependably superior WiFi connections

With 2×2 Multiple-User Multiple Input Multiple Output (MU-MIMO) technology and WorryFree WiFi, a free Mobility DNA tool, you get increased WiFi range and speed, near instant application response times, unmatched roaming, exceptional voice quality and network diagnostics that help keep your WiFi network up and running at peak performance.

A lifetime security guard for Android

With LifeGuard^TMfor Android^TM, you get the security updates you need to keep your Zebra Android devices secure every day they are in service – along with easy end-to-end control of the OS update process, plus support for future versions of Android.

The best of both worlds – touchscreen and keypad input

Two data entry modes support TE apps today and Android intuitive, interactive apps tomorrow. Maximize key-based data entry simplicity with your choice of keypads and enable touch input for TE or Android apps now or in the future. And since you can easily swap keypads right in your facility, you can re-purpose devices or replace broken keypads instantly – no trip to the service depot and no device downtime.

Capture multiple barcodes and entire forms with a single scan

SimulScan makes it easy to capture labels on boxes and pallets that contain many barcodes, plus text fields.

Doubles as a walkie-talkie

With Voice-over-IP (VoIP) support and pre-loaded PTT Express, your workers get push-to-talk capability. (License Required)

All day comfort in the most scan intensive apps

When you give your workers the MC9300, you give them a mobile computer designed for comfort, with the most proven ergonomics – a perfectly weighted device with a pistol-style grip.

NFC for simple pairing

With a quick tap, workers can pair the MC9300 with a ring scanner, mobile printer, headset and more with optional NFC.

Product Type: Handheld Terminal
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Scan Engine Model: SE4850
Image Sensor Type: Imager
Scanner Range: Extended Range
Scanning Distance: 70 ft
Google Mobile Services (GMS): Yes
Sensor Type:

• Light Sensor
• Motion Sensor
• Accelerometer
• Gyroscope

Features:

• Water Resistant
• Gorilla Glass
• Push-to-talk
• VoIP
• Non Incendive

Drop Specification:

• Standard: 10 ft. (3.1m) drops at room temperature per MIL-STD-810G, 8 ft. (2.4m) drops to concrete across temperature per MIL-STD-810G
• Freezer: 7 ft. (2.1m) drops to concrete across temperature per MIL-STD-810G.

Processor & Chipset
Processor Manufacturer: Qualcomm
Processor Type: Snapdragon
Processor Model: 660
Processor Core: Octa-core (8 Core)
Processor Speed: 2.20 GHz
Memory
Standard Memory: 4 GB
Flash Memory: 32 GB
Memory Card Supported:

• microSD
• SDHC
• SDXC

Display & Graphics
Screen Size: 4.3″
Screen Mode: WVGA
Screen Resolution: 800 x 480
Display Screen Type: LED
Touchscreen Information
Touchscreen: Yes
Multi-touch Screen: Yes
Keyboard/Keypad
Number of Keys: 58
Keyboard Type: Alphanumeric
Network & Communication
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/w
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.0 + BR/EDR
Near Field Communication (NFC): Yes
Interfaces/Ports
USB: Yes
Software
Operating System: Android 8.1 Oreo
Power Description
Power Source: Battery
Battery Information
Battery Capacity: 7000 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Included: Yes
Battery Voltage: 3.60 V
Removable Battery: Yes
Environmental Conditions
Operating Temperature: -4°F (-20°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Gun
Rugged: Yes
Height: 7.4″
Width: 3.5″
Length: 9.4″
Weight (With Battery): 1.69 lb
Miscellaneous
Package Contents:

• Mc9300 Handheld Mobile Computer
• Battery

Application/Usage:

• Logistics
• Manufacturing
• Retail
• Cold Chain
• Government

Ingress Protection (IP) Rating:

• IP67
• IP65

Environmentally Friendly: Yes
Environmental Certification:

• RoHS
• REACH

Warranty
Limited Warranty: 1 Year
Additional Warranty Information:

Subject to the terms of Zebra’s hardware warranty statement, the MC9300 is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment.
