09XX92

THE NEXT GENERATION IN WI-FI 6 AND DEVICE TRACKING TECHNOLOGY

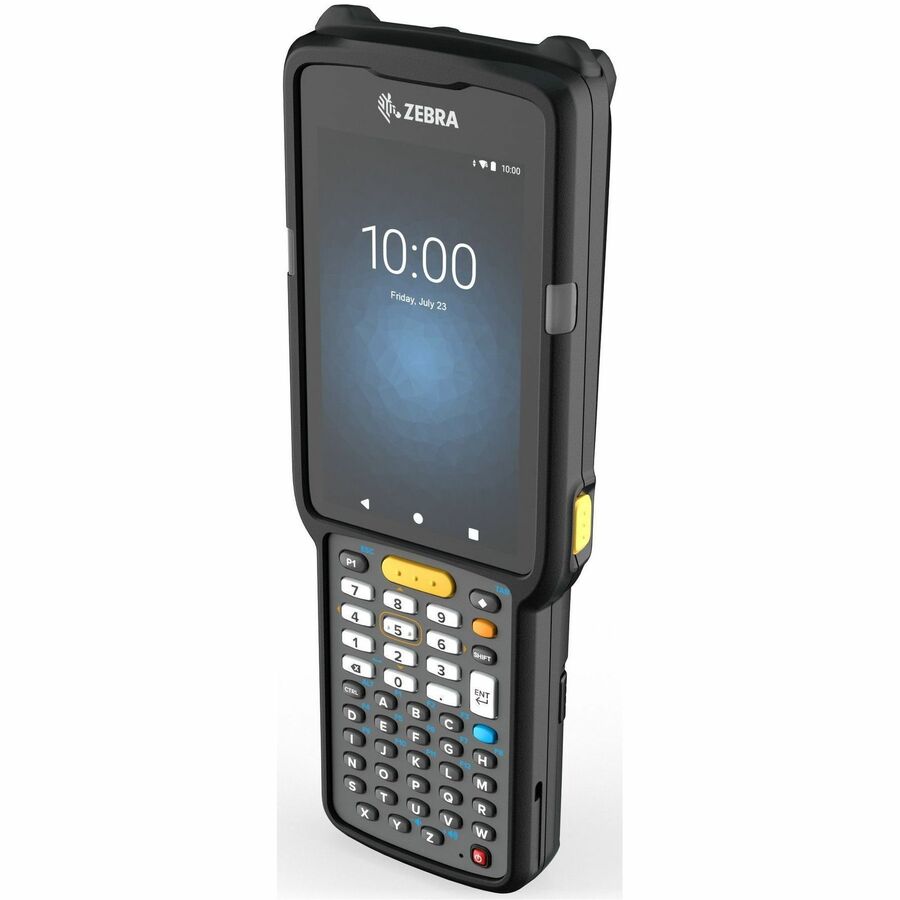

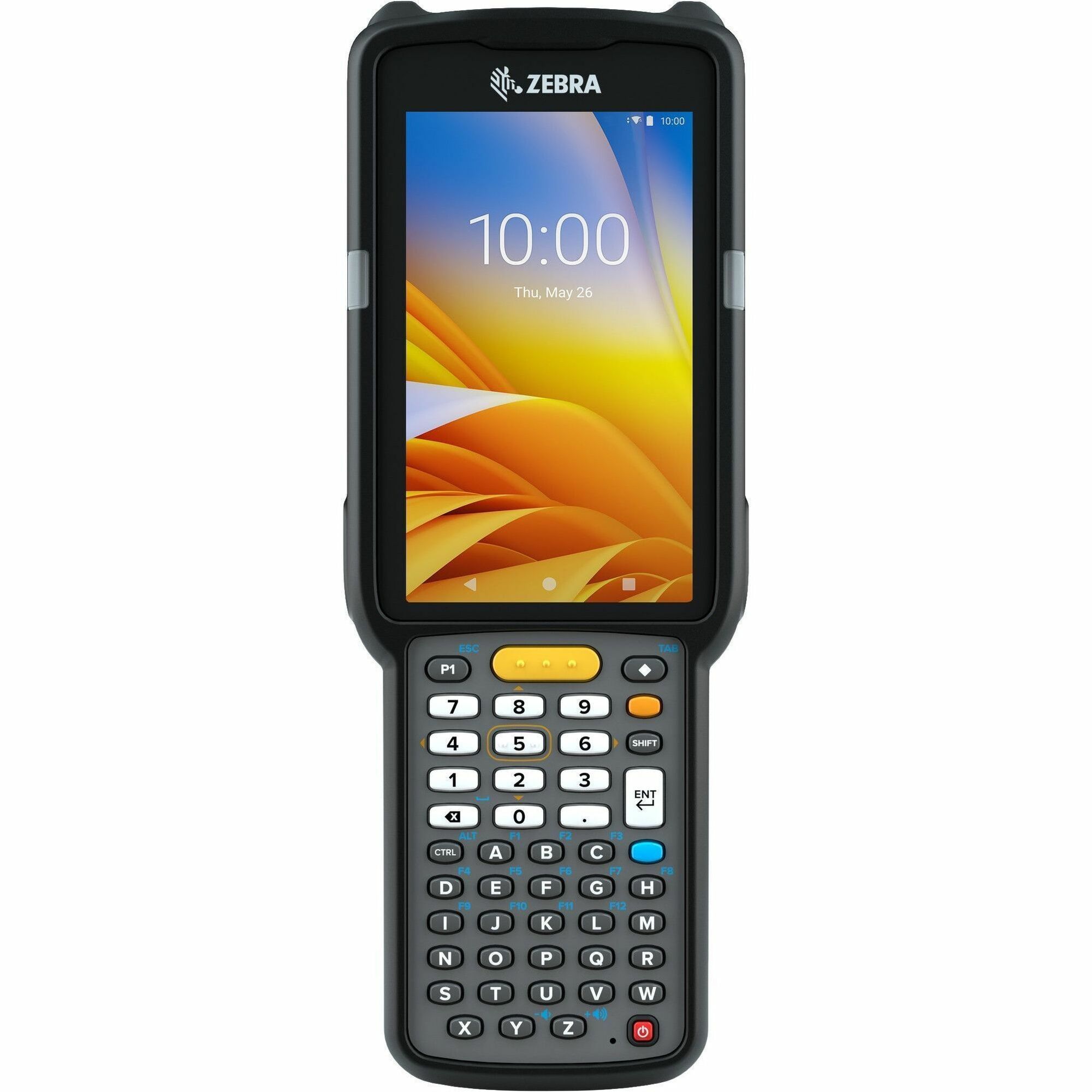

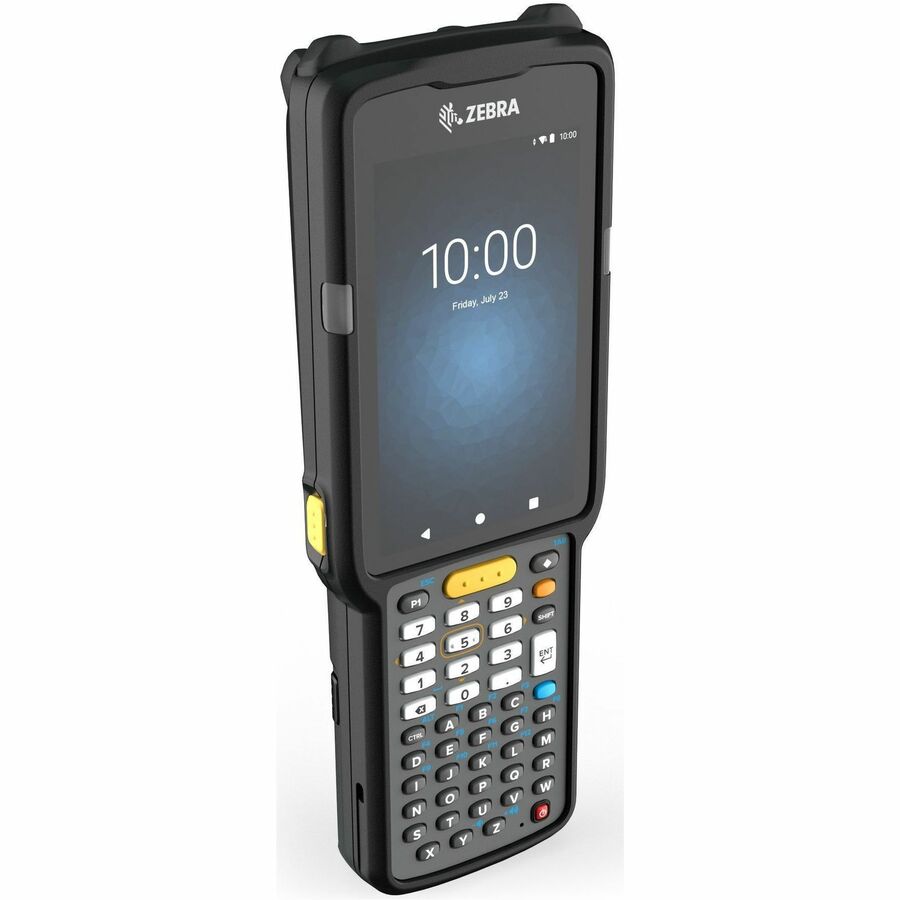

Building on the success of our highly successful MC3300x mobile computer, the MC3300ax offers new features that will take workforce productivity, device utilization and application development simplicity to the next level. Support for Wi-Fi 6 delivers unmatched Wi-Fi performance and future-proofing – whether you are in the process of migrating to Wi-Fi 6 or planning to migrate in the near future, with the MC3300ax, you’re ready. Support for the latest version of Device Tracker means no more lost devices – an optional battery with an integrated Bluetooth beacon makes it easy to find a missing device in minutes. Enterprise Browser is yours to use, free of charge, so it’s easy to create intuitive apps that take advantage of all of the MC3300ax features. And since you can use all of your MC3300x accessories, upgrading to the latest mobile platform couldn’t be easier or more cost-effective.

Superior performance on all of your voice and data apps

Power even the most demanding apps of today and tomorrow with the most powerful processor and most memory in this class – every model offers an ultra-powerful 2.2 GHz octa-core processor and 4 GB RAM/32 GB Flash.

Power three shifts with the class-leading 7000 mAh battery

The 7000 mAh extended capacity battery is standard with every MC3300ax. More power means fewer battery changes, easier battery management, and a smaller battery pool with fewer batteries to purchase and manage, saving you time and money.

Maximum Wi-Fi power

Get next generation Wi-Fi performance with Wi-Fi 6. Increased bandwidth and efficiency enable a major increase in devices and traffic – without impacting application performance. 2×2 Multiple-User Multiple Input Multiple Output (MU-MIMO) technology also boosts Wi-Fi network capacity and range by allowing access points to communicate with multiple devices simultaneously via pinpoint beamforming.

The perfect combination: touchscreen and keypad

Whether your application requires touch or physical keypad input, we’ve got you covered. Your application can utilize the entire display, while the physical keypad provides the same familiar user input experience your workers have today. In addition, the touchscreen paves the way to migrate to intuitive touch-based interfaces. And with three different options, you can choose the right keypad for your data entry needs -alphanumeric, numeric and functional numeric.

Bluetooth 5.1 – twice the speed, four times the range, less power

Speeds up to 2 Mbps improve the performance of Bluetooth peripherals, such as ring scanners, printers and headsets. The result? Faster application response times, faster printing and better voice quality. And battery runtime is also extended, since Bluetooth Low Energy reduces power consumption.

Integrated NFC for simple, split-second pairing

With a quick tap, workers can pair the MC3300ax with Zebra’s family of ring scanners, mobile printers, and Bluetooth headsets – your pairing possibilities are endless.

Your choice of standard or extreme range scanning

Short, mid or long range 1D and 2D scanning – the SE4850 scan engine does it all. With its extended range, workers can capture barcodes in hand as close as 3 in./7.62 cm and on your uppermost warehouse racks – as far as 70 ft./21.4 m away. Capture the widest of barcodes at close range with the industry-leading field of view. The standard range 1D/2D SE4770 captures barcodes up to 24 in./60 cm away, and offers a large sweet spot for point-and-shoot simplicity. No matter which scanner you choose, the MC3300ax captures it all – even barcodes that are scratch
Product Type: Handheld Terminal
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Scan Engine Model: SE4770
Image Sensor Type: Imager
Scanner Range: Standard Range
Scanning Distance: 23.62″
Google Mobile Services (GMS): Yes
Sensor Type:

• Motion Sensor
• Accelerometer
• Gyroscope

Features:

• Water Resistant
• Gorilla Glass
• Push-to-talk

Drop Specification: Multiple 6 ft./1.8 m drops to concrete across the operating temperature range per MIL-STD-810G

Processor & Chipset
Processor Manufacturer: Qualcomm
Processor Type: Snapdragon
Processor Model: 660
Processor Core: Octa-core (8 Core)
Processor Speed: 2.20 GHz
Memory
Standard Memory: 4 GB
Flash Memory: 32 GB
Memory Card Supported:

• microSD
• SDHC
• SDXC

Display & Graphics
Screen Size: 4″
Screen Mode: WVGA
Screen Resolution: 800 x 480
Display Screen Type: LED
Touchscreen Information
Touchscreen: Yes
Keyboard/Keypad
Number of Keys: 47
Keyboard Type: Alphanumeric
Buttons & Keys:

Two programmable side scan keys

Network & Communication
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11ax
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.1
Near Field Communication (NFC): Yes
Interfaces/Ports
USB: Yes
Software
Operating System: Android 11
Upgradable Operating System: Android 14
Power Description
Power Source: Battery
Battery Information
Battery Capacity: 7000 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Included: Yes
Battery Voltage: 3.60 V
Maximum Battery Recharge Time: 5 Hour
Removable Battery: Yes
Environmental Conditions
Operating Temperature: -4°F (-20°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Rugged: Yes
Width: 2.9″
Depth: 1.4″
Length: 8″
Weight (Approximate): 1.04 lb
Miscellaneous
Package Contents:

• Mc3300ax Mobile Computer
• Battery

Application/Usage:

• Warehouse
• Distribution
• Manufacturing
• Retail

Ingress Protection (IP) Rating: IP64
Environmentally Friendly: Yes
Environmental Certification:

• RoHS
• REACH

Warranty
Limited Warranty: 1 Year
Additional Warranty Information:

Subject to the terms of Zebra’s hardware warranty statement, the MC3300ax is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment.
