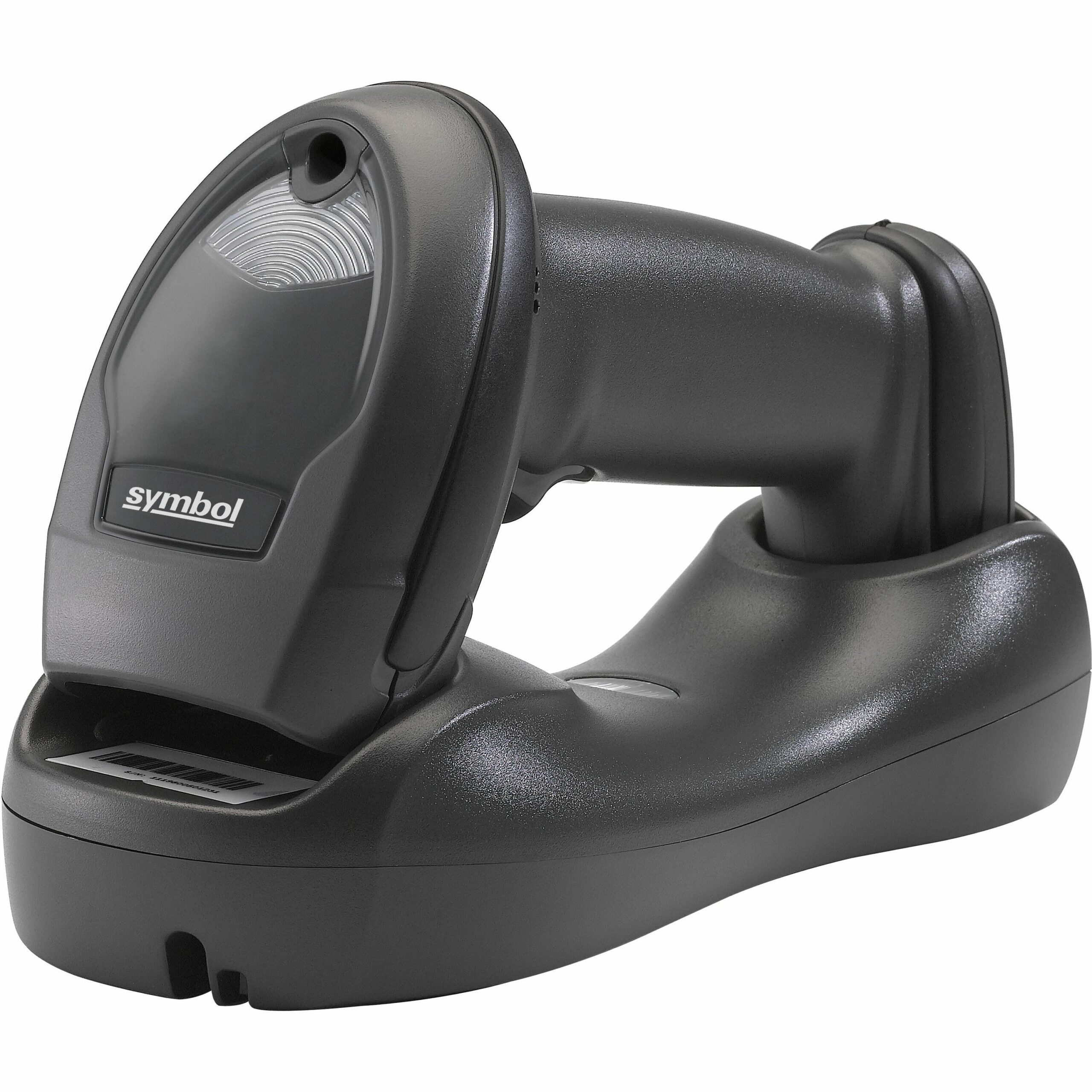

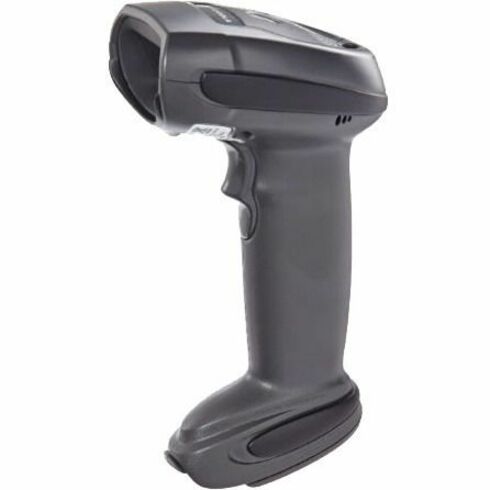

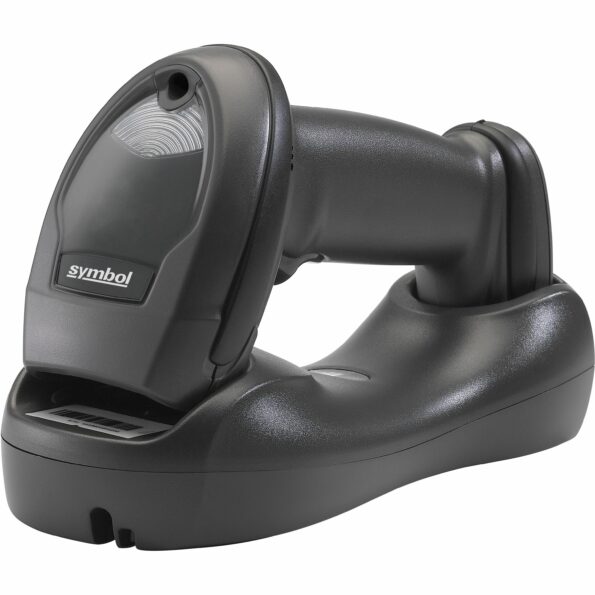

The LI4278 takes 1D bar code scanning to the next level, allowing workers to scan faster and farther as they can capture virtually any 1D bar code. Built for all day and everyday use, the LI4278 offers cordless freedom with Bluetooth compatibility. It also offers better encryption for improved security and better overall wireless performance. The LI4278 is backward compatible with its key accessory – the cradle – which works with its cousins, the LS4278 and DS6878. Superior battery power management delivers the largest number of scans per battery charge to support scan intensive applications. You can use it in dusty and wet environments and it can survive a 6 foot/1.8 m drop.

Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Wireless
Scanning Capability: 1D
Barcode Symbology Supported:

UPC/EAN:

• UPC-A
• UPC-E
• UPC-E1
• EAN-8/JAN 8
• EAN-13/JAN 13
• Bookland EAN
• Bookland ISBN Format
• UCC Coupon Extended Code
• ISSN EAN Code 128 Including GS1-128
• ISBT 128
• ISBT Concatenation?
• Code 39 including Trioptic Code 39
• Convert Code 39 to Code 32 (Italian Pharmacy Code)
• Code 39 Full ASCII
• Conversion Code 93 Code 11?
• Matrix 2 of 5
• Interleaved 2 of 5 (ITF)?
• Discrete 2 of 5 (DTF) ?
• Codabar (NW – 7)?
• MSI Chinese 2 of 5
• IATA Inverse 1D (except all GS1 DataBars)?
• GS1 DataBar including GS1 DataBar-14
• GS1 DataBar Limited
• GS1 DataBar Expanded

Light Source: LED
Image Sensor Type: Imager
Scan Rate: 547 scan/s
Depth of Field:

• 5″ – 7″@3mil – Code 39
• 4″ – 10″@4mil – Code 39
• 3″ – 13″@5mil – Code 39
• 1.5″ – 19″@7.5mil – Code 39
• 1″ – 31″@13mil – (100% UPC-A)
• 1″ – 42″@20mil – Code 39
• 3″ – 55″@26mil – (200% UPC-A)

Scan Pattern: Linear
Scanner Range: Extended Range
Scanning Distance: 3″
Reading Angle (Skew): 65°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 45°
Motion Tolerance: 25 in/s
Maximum Ambient Light: 108000 lux
Drop Specification: Over 100 drops at 5 ft./1.5 m at room temperature; survives 6ft./1.8 m drops to concrete
Minimum Print Contrast: 15%
Network & Communication
Bluetooth: Yes
Battery Information
Maximum Number of Scans per Full Charge: 57000
Physical Characteristics
Form Factor: Handheld
Product Color: Twilight Black
Height: 3.8″
Width: 2.8″
Depth: 7.3″
Weight (Approximate): 7.90 oz
Miscellaneous
Additional Information:

USB Cable separate

Ingress Protection (IP) Rating: IP53
Platform Supported:

• PC
• Smartphone

Certifications & Standards:

• EMC FCC Part 15 Class B
• ICES 003 Class B
• IEC 60601-1-2
• 2002/95/EEC Electrical Safety C22.2 No. 60950-1
• EN 60950-1
• IEC 60950-1
• UL 60950-1 LED Class 1

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Mexico
Warranty
Limited Warranty: 3 Year
