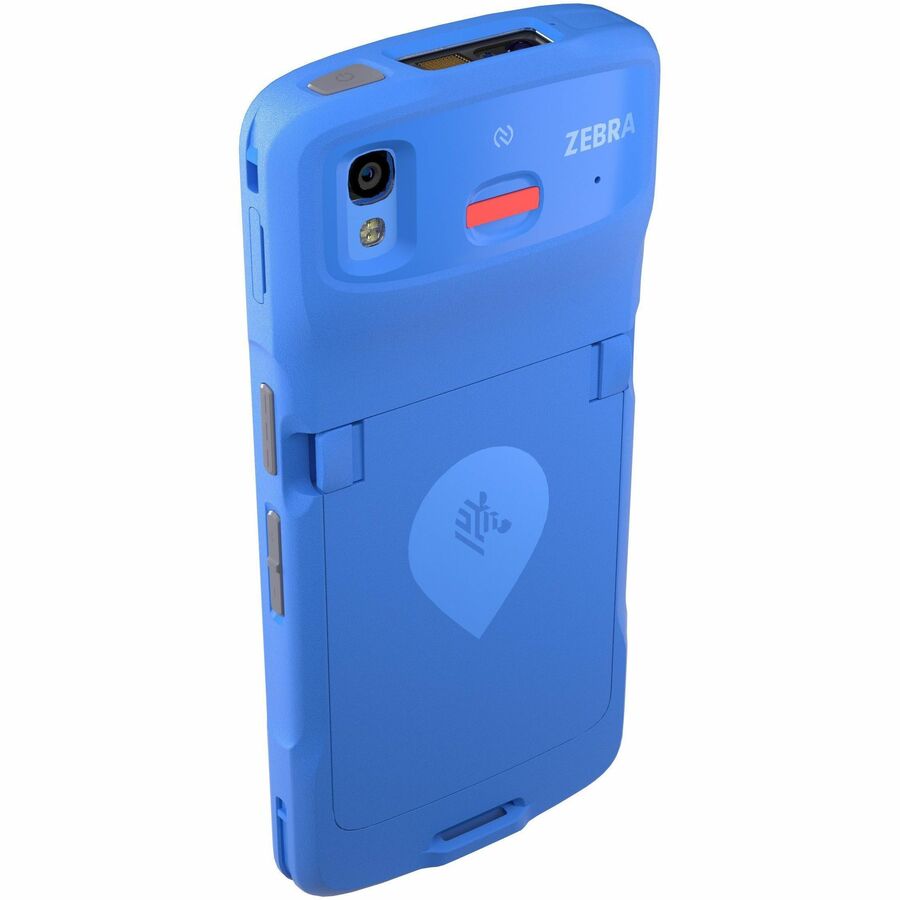

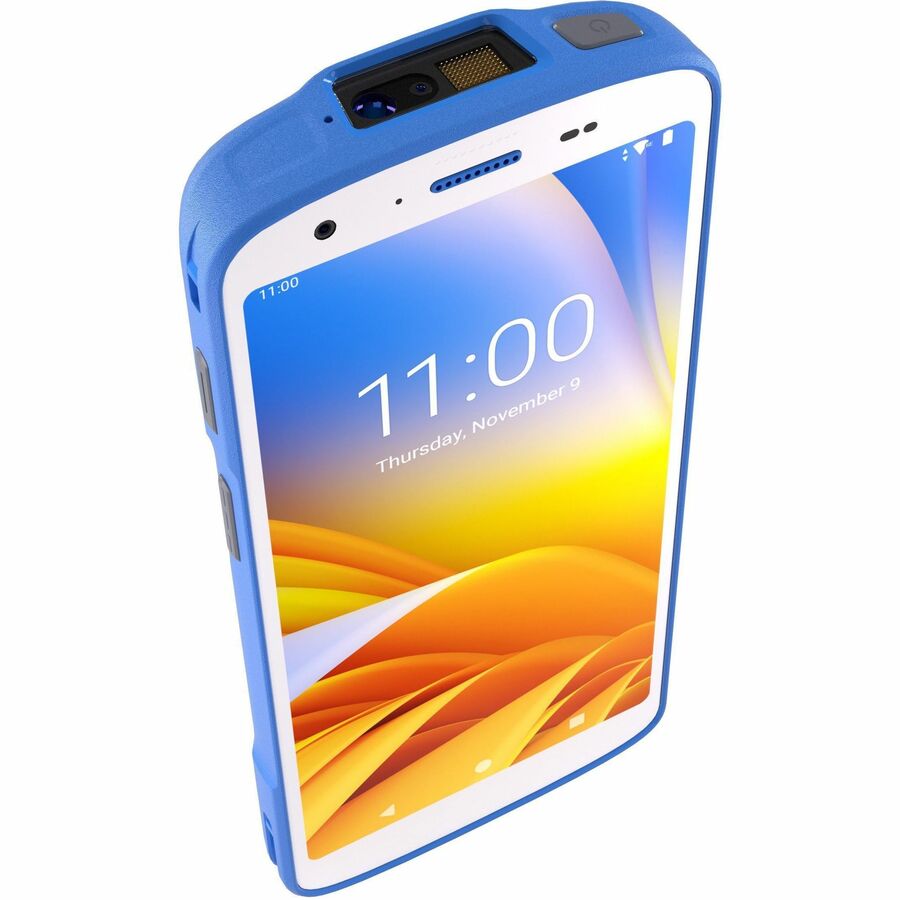

WCMTA-H55D8BBK1-NA – Zebra HC55 Handheld Terminal – 1D, 2D – 5G, 4G, 3G, 2G, LTE – SE4720Scan Engine2.10 GHz – 8 GB RAM – 128 GB Flash – 6″ Full HD+ Touchscreen – LED – Rear Camera – Android Upgradable to Android 16 – Wireless LAN – Bluetooth – Rugged – Battery Included – IP68, IP65

Empower clinical and non-clinical healthcare workers to improve efficiency, task accuracy and patient outcomes

Zebra’s newest family of rugged healthcare mobile computers are purpose built to enable healthcare workers to improve efficiency, accuracy, the quality of patient care and patient outcomes. The Wi-Fi HC20/HC50 and Wi-Fi/cellular HC25/HC55 provide the perfect balance of ergonomics, features and cost in a pocketable device that is easy to carry, easy to use, easy to disinfect and easy to manage. From hospitals and clinics to patient homes and care homes, the most demanding healthcare multi-media apps are always at your workers’ fingertips. These small devices are big in extended communications capabilities, able to transform into a two-way radio, PBX handset and workstation. The Zebra Guardian Portfolio� protects your fleet and improves device availability with enhanced accountability, recovery and access control. And Zebra DNA boosts usability and manageability with many complimentary tools.

Perfectly Designed on the Outside for Healthcare

The Ergonomics Every Healthcare Worker Wants

Zebra’s thinnest and lightest healthcare mobile computers are perfectly balanced to minimize hand fatigue. Contoured surfaces and sculpted lower bumpers reduce pressure points and provide any size hand with a secure grip – and all day comfort.

Built for Constant Disinfecting

The disinfectant-ready design offers advanced medical grade plastics that support the widest selection of disinfectants in the industry. And a specially designed housing and USB-C port plug minimize crevices where pathogens can accumulate.

20% More Display Space to See More – and Scroll Less

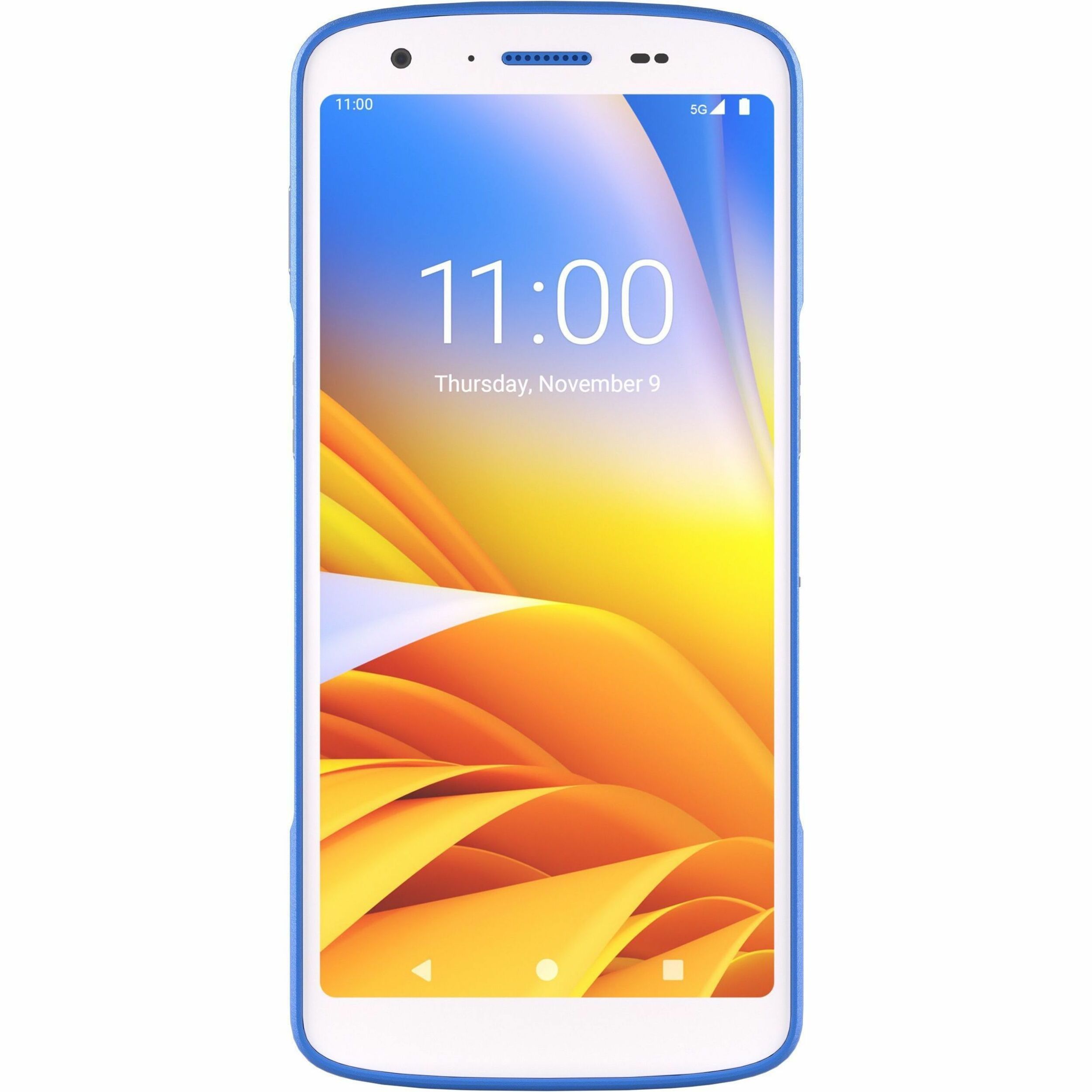

The high resolution, 6 in, FHD+ edge-to-edge display is bright and easy to read in virtually any lighting. And it works with the thin gloves typically worn by healthcare workers.

Call for Help with a Press of the Emergency Alert Button

This programmable dedicated button can be configured to call a specific number or launch an application in emergency or duress situations, with an activation sequence that prevents false alarms.

One Set of Accessories for All Models

Make carrying easy with the disinfectant-ready healthcare carry clip or hand strap. There are cradles designed for the backroom, a desk or a nurses station, plus extra batteries to ensure power for back-to-back shifts and a screen protector that boosts display durability.

Unbeatable Battery Features

battery runs low, just swap in a fully charged battery. With true hot swap you can change batteries without impacting device functionality – no missed calls, no missed notifications, no lost data. PowerPrecision technology provides real-time metrics to monitor battery health, so you can easily spot and replace batteries that can no longer hold a full charge. And you can use any standard USB-C charge cable for charging flexibility.

Product Type: Handheld Terminal
Technical Information
Connectivity Technology: Wired/Wireless
Scanning Capability:

• 1D
• 2D

Scan Engine Model: SE4720
Image Sensor Type: Imager
Light Source: LED
Google Mobile Services (GMS): Yes
Sensor Type:

• Proximity
• Light Sensor
• Magnetometer
• Motion Sensor
• Gyroscope
• Pressure Sensor

Multi-SIM Supported: Yes
SIM Size Supported: Nano/eSIM
Brightness: 450 Nit
Features:

• Push-to-talk
• Corning Gorilla Glass
• Lightweight
• Dual Stereo Speaker
• Fast Charging
• Dual SIM
• Vibrator
• Audible Tone

Drop Specification:

• Multiple 4 ft (1.25m) drops to tile over concrete across temperature (+14F to +122F/-10C to +50C) per MIL-STD 810H

Illumination Type: LED
Illumination Color: White
AI-powered: Yes
Processor & Chipset
Processor Model: 5430
Processor Core: Hexa-core (6 Core)
Processor Speed: 2.10 GHz
Memory
Standard Memory: 8 GB
Flash Memory: 128 GB
Memory Card Supported:

• microSD
• UFS

Display & Graphics
Screen Size: 6″
Screen Mode: Full HD+
Screen Resolution: 1080 x 2160
Display Screen Type: LED
Touchscreen Information
Touchscreen: Yes
Multi-touch Screen: Yes
Network & Communication
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc (Wi-Fi 6)
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.2 BLE
Near Field Communication (NFC): Yes
Cellular Data Connectivity Technology:

• 5G
• 4G
• 3G
• 2G
• LTE

GPS: Yes
Global Navigation Satellite System (GNSS) Supported: BeiDou/Galileo/GLONASS/QZSS
Interfaces/Ports
USB: Yes
USB Type-C: Yes
Camera
Rear Camera: Yes
Rear Camera Resolution: 16 Megapixel
Software
Operating System: Android
Upgradable Operating System: Android 16
Power Description
Power Source: Battery
Battery Information
Battery Capacity: 3800 mAh
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Included: Yes
Removable Battery: Yes
Environmental Conditions
Operating Temperature: 14°F (-10°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Phone-size
Rugged: Yes
Width: 3″
Depth: 0.5″
Length: 6.5″
Weight (Approximate): 8.54 oz
Miscellaneous
Package Contents:

• HC55 Handheld Terminal
• Battery

Application/Usage: Healthcare
Ingress Protection (IP) Rating:

• IP68
• IP65

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 1 Year
