8NV683

• 2D
• 1D

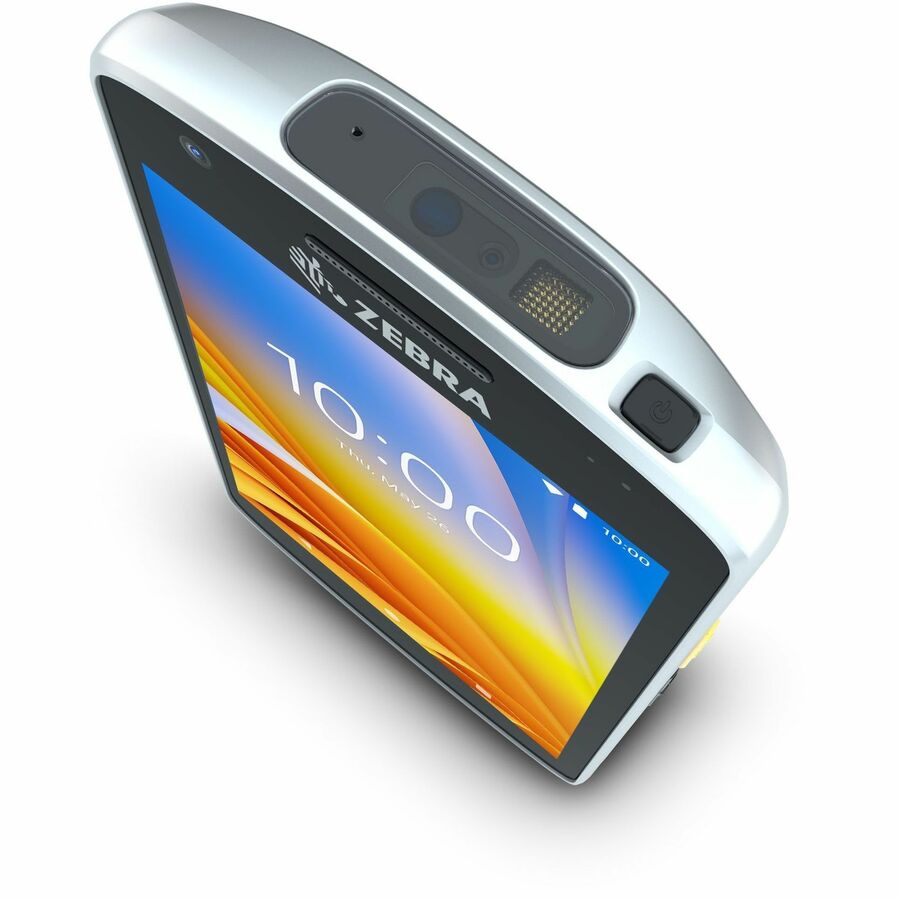

Scan Engine Model: SE4100
Image Sensor Type: Imager
Light Source: LED
Google Mobile Services (GMS): Yes
Sensor Type:

• Light Sensor
• Magnetometer
• Motion Sensor
• Proximity
• Gyroscope
• Accelerometer

Brightness: 450 Nit
Features:

• Gorilla Glass
• Push-to-talk
• Drop Resistant

Drop Specification:

4 ft/1.2 m

Processor & Chipset
Processor Manufacturer: Qualcomm
Processor Model: SD660
Processor Core: Octa-core (8 Core)
Processor Speed: 2.20 GHz
Memory
Standard Memory: 4 GB
Flash Memory: 64 GB
Memory Card Supported: microSD
Display & Graphics
Screen Size: 5″
Screen Mode: HD
Screen Resolution: 720 x 1280
Display Screen Type: LED
Touchscreen Information
Touchscreen: Yes
Multi-touch Screen: Yes
Network & Communication
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.0 BLE
Near Field Communication (NFC): Yes
Interfaces/Ports

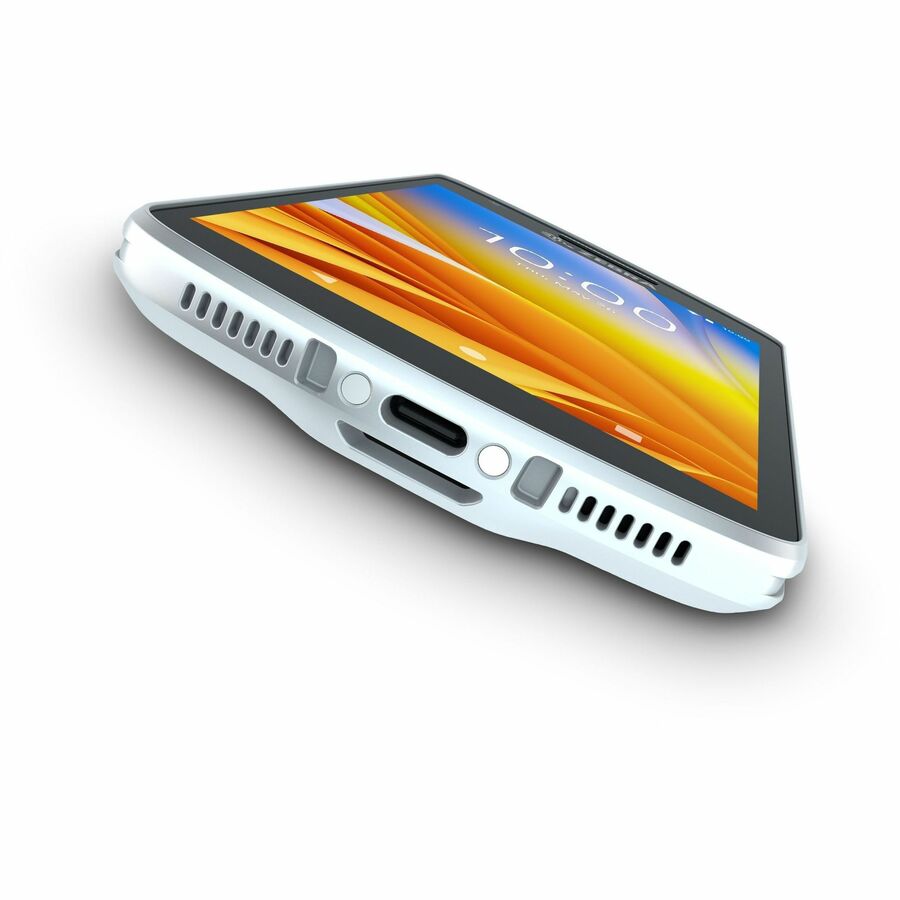

USB: Yes
Camera
Front Camera: Yes
Front Camera Resolution: 5 Megapixel
Rear Camera: Yes
Rear Camera Resolution: 13 Megapixel
Software
Operating System: Android 10
Upgradable Operating System: Android 12
Power Description
Power Source: Battery
Battery Information
Battery Capacity: 4180 mAh
Battery Included: Yes
Removable Battery: Yes
Environmental Conditions
Operating Temperature: 14°F (-10°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 5% to 95%
Physical Characteristics
Form Factor: Phone-size
Width: 3″
Depth: 0.5″
Length: 6.1″
Miscellaneous
Package Contents:

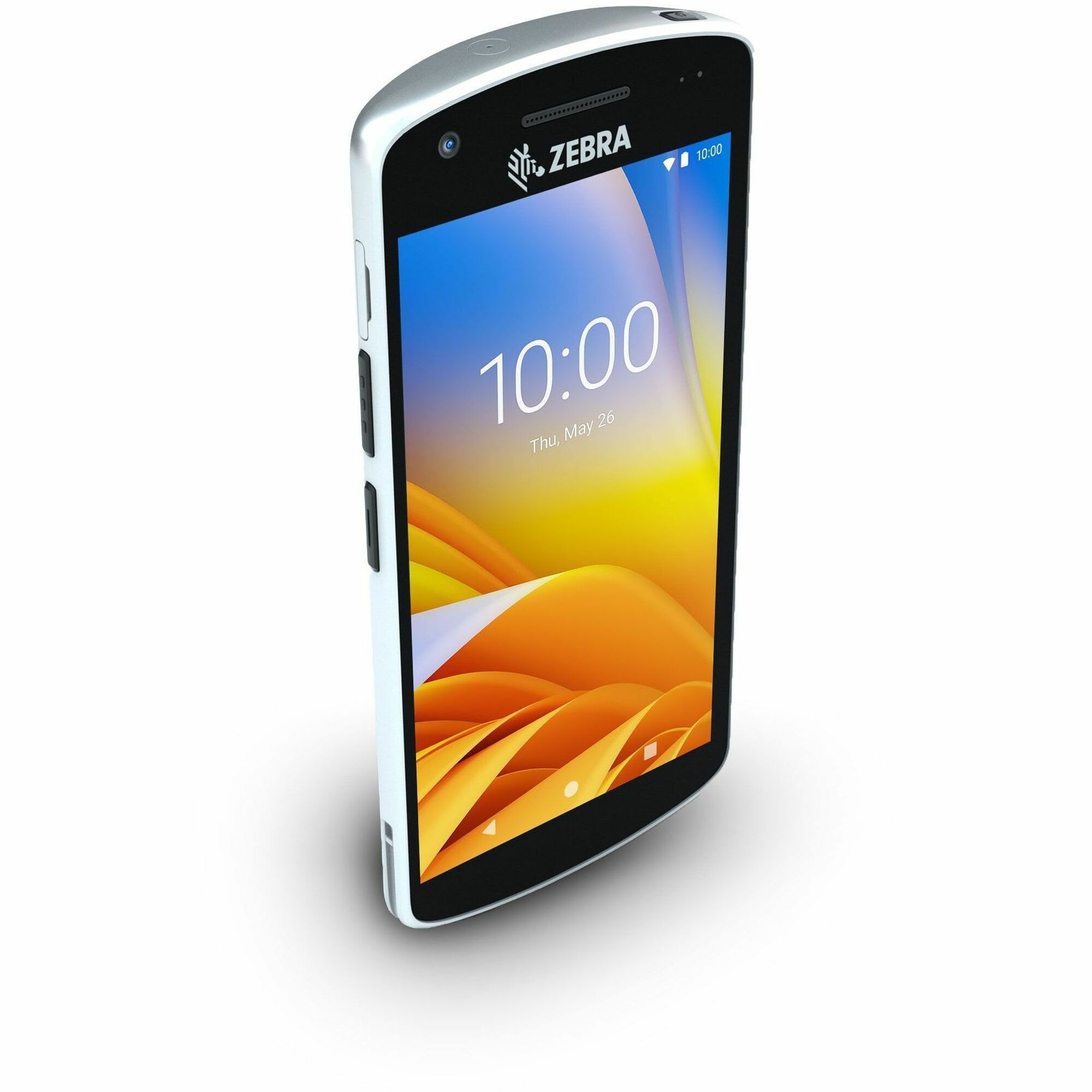

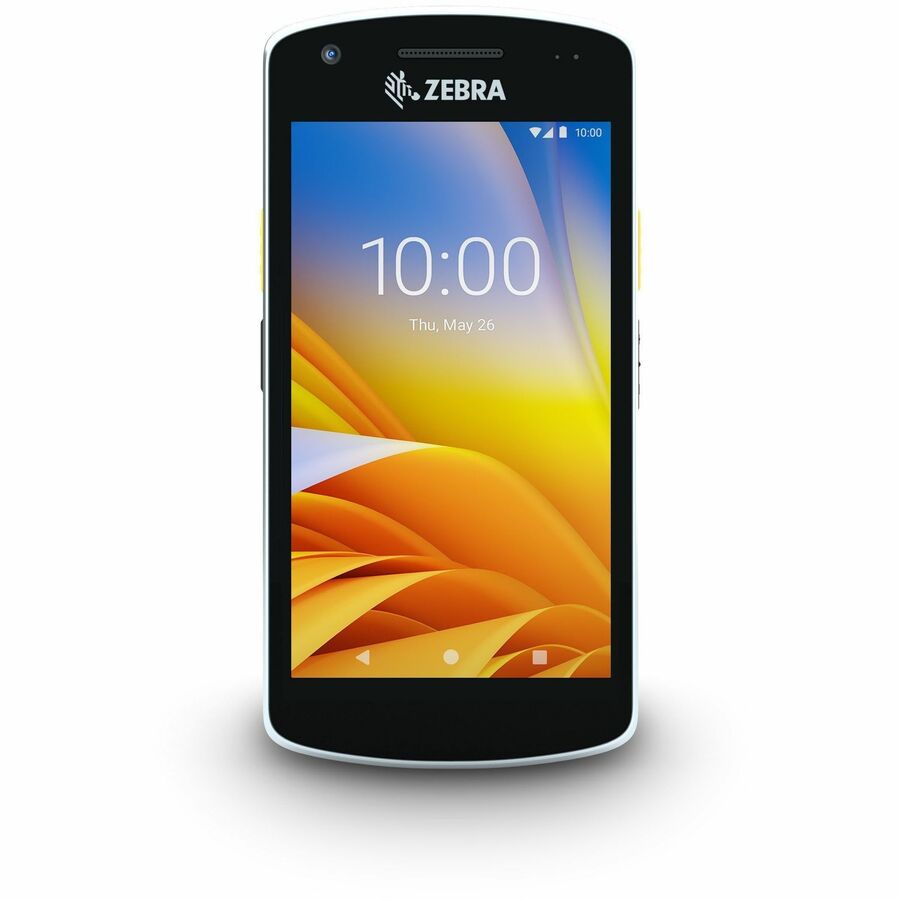

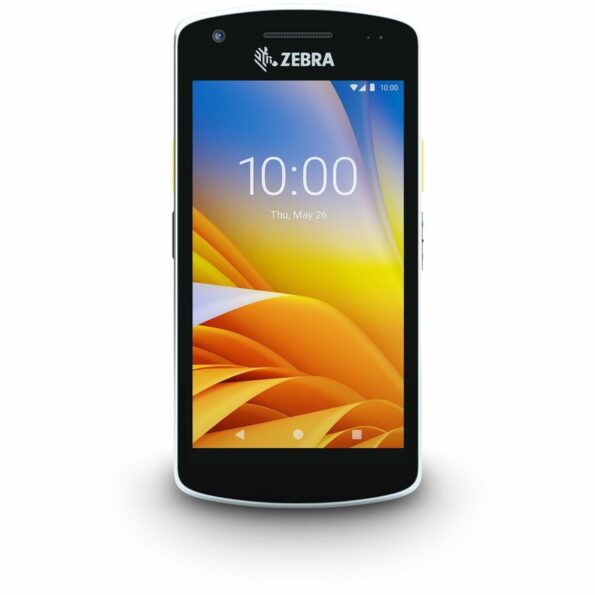

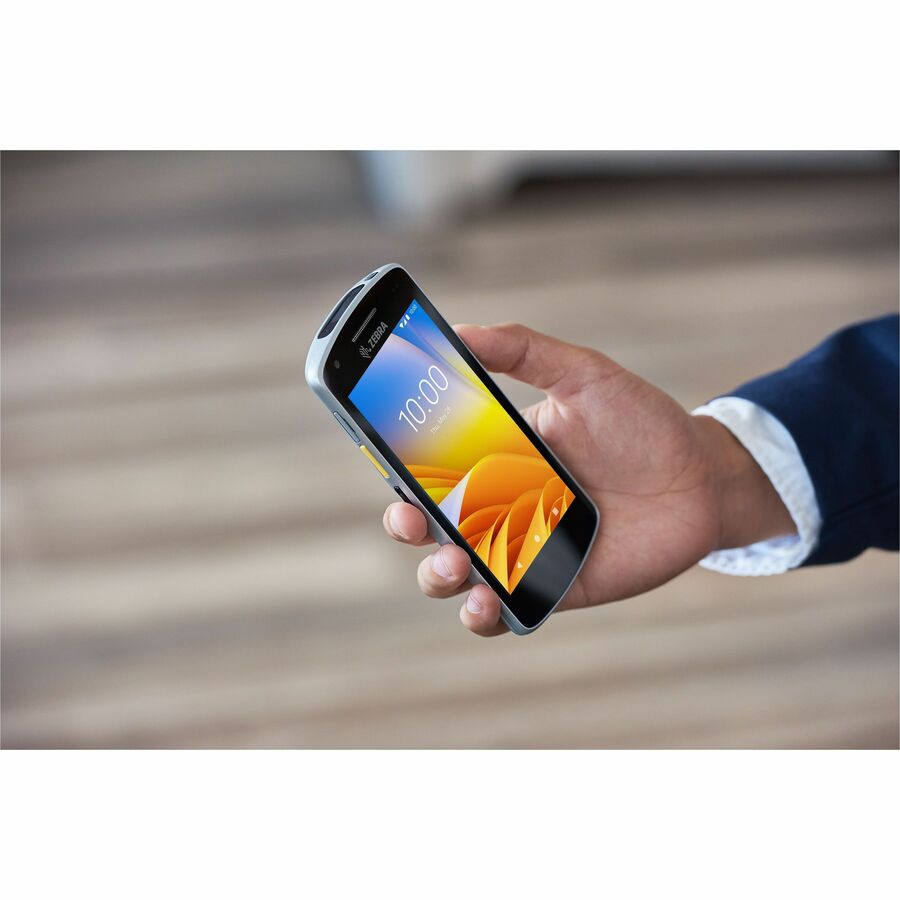

• EC50 Handheld Terminal
• Extended Battery

Application/Usage:

• Retail
• Healthcare
• Courier Service
• Direct Store Delivery (DSD)
• Field Sales/Service

Ingress Protection (IP) Rating: IP67
Environmentally Friendly: Yes
Environmental Certification:

• RoHS
• REACH

Warranty
Limited Warranty: 1 Year
