1FB122

TTER WORKFLOWS FOR HEALTHCARE PROFESSIONALS. BETTER EXPERIENCES FOR PATIENTS.

As a healthcare provider, you need to deliver the very best in care, every second of every day. That means giving your healthcare professionals the tools they need to improve patient outcomes, increase productivity and streamline everyday processes. With the purpose-built DS8100-HC, you can. With the ability to instantly capture the most difficult to read barcodes; an industry-first housing that offers maximum protection against the spread of bacteria; Night Mode with Vibrate for can’t miss feedback on decodes and a built-in lamp, the DS8100-HC can seamlessly integrate into existing healthcare workflows to boost process efficiencies and ensure that patients are left undisturbed until necessary. Combined with Zebra’s complimentary manageability tools to simplify the setup, deployment, performance monitoring and ongoing management of your scanners, the DS8100-HC is the ideal solution to enhance patient safety, the productivity of staff members and the efficiency of point-of-care operations.

IMPROVED PATIENT EXPERIENCES

Unparalleled Performance on Virtually Every Barcode in Any Condition
Only the DS8100-HC Series combines the power of an 800 MHz microprocessor, a high-resolution megapixel sensor and Zebra’s exclusive PRZM technology. With this unique combination of hardware and advanced algorithms, the DS8100-HC Series instantly captures the most problematic barcodes found in pharmacies, labs and at the point-of-care – including dense, tiny, curved, poorly printed, hiny, crinkled, faded, distorted, dirty or damaged, as well as electronic barcodes on dimly lit displays.

First-of-its-kind Housing Offers Maximum Protection Against the Spread of Infection
Only the DS8100-HC offers a purpose-built housing specially designed to help prevent the spread of bacteria. Special plastics allow for Safe wipe-downs with the widest selection of the harshest and most aggressive disinfectants used in today’s hospitals. And concealed screw holes and seams eliminate areas where bacteria could hide – even after a wipedown.

Flexible User-Selectable Feedback Including Night Mode with Vibrate
Choose from a wide array of easily controllable feedback modes designed for virtually any hospital environment. From the Intensive Care Unit to a quiet night shift or a busy and more noisy day shift, there is a feedback mode that will instantly notify your healthcare workers that a barcode was properly captured – without disturbing patients.

In addition to the standard LED, vibrate and beeper feedback, Zebra’s Direct Decode Indicator flashes illumination onto the barcode to confirm that it has been captured. Clinicians can be confident that a medicine, specimen or IV bag was properly scanned – without interrupting the work flow to look at the scanner.

With Night Mode, healthcare workers can switch between vibrate and beeper feedback by simply depressing the trigger for a few seconds.

And it’s easy to control it all. Enable vibrate, beeper and the Direct Decode Indicator individually or in any combination, and easily adjust beeper volume, beeper frequency and illumination intensity.

Patient Safety
The DS8100’s green aiming spot avoids blue wavelengths, which can potentially cause eye injury.

ADAPTABLE TO CLINICIAN WORKFLOWS
Continuous 24 Hour Scanning
With Zebra’s exclusive PowerPrecision+ smart battery in the cordless DS8178-HC, your nurses and workers will always have the power they need for the busiest shift. Devices are always available – no need for charging mid-shift.

Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

1D

• Code 39
• Code 128
• Code 93
• Codabar/NW7
• Code 11
• MSI
• Plessey
• UPC/EAN
• I 2 of 5
• Korean 3 of 5
• GS1 DataBar
• Base 32(Italian Pharma)

2D

• PDF417
• Micro PDF417
• Composite Codes
• TLC-39
• Aztec
• DataMatrix
• MaxiCode QR Code
• Micro QR
• Chinese Sensible(Han Xin)
• Postal Codes

Light Source: LED
Image Sensor Type: Imager
Network & Communication
Bluetooth: Yes
Interfaces/Ports
Host Interface: USB
Physical Characteristics
Form Factor: Handheld
Product Color: Healthcare White
Height: 6.6″
Width: 2.6″
Depth: 4.2″
Weight (Approximate): 8.30 oz
Miscellaneous
Package Contents:

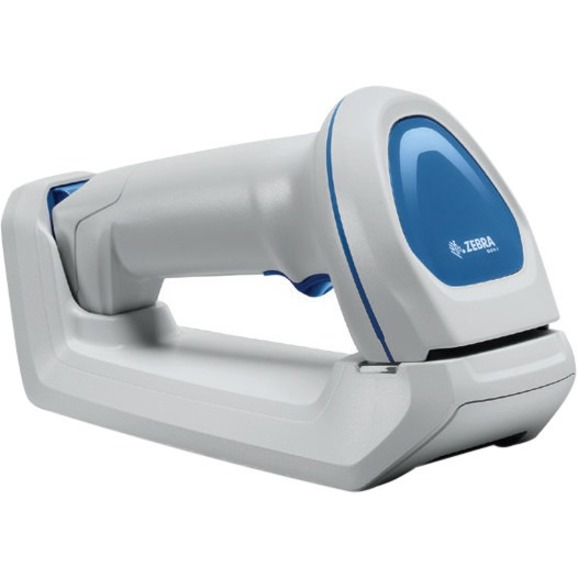

• DS8178-HC Handheld Barcode Scanner

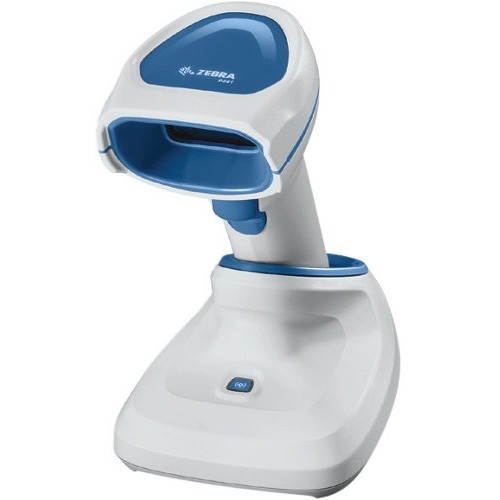

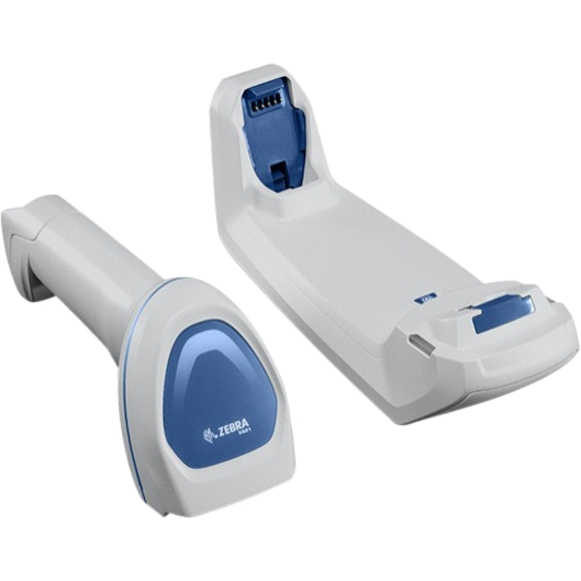

• Standard Cradle
• Presentation Cradle
• Spare Battery
• Document Capture Stands

Environmentally Friendly: Yes
Country of Origin: Mexico
Warranty
Limited Warranty: 3 Year
