7AK668

THE ULTIMATE IN PERFORMANCE, INNOVATION AND MANAGEABILITY

As a retailer, you know the checkout experience is crucial – it’s the last chance to leave your shoppers with a good impression. The quality of the checkout experience is heavily dependent upon the performance of the scanner you choose. If cashiers need to scan barcodes multiple times or enter unreadable barcodes manually, your checkout lanes can back up quickly, translating into long lines and long wait times. Cashiers are then forced to focus on ringing up merchandise instead of providing shoppers with a great in-store experience. Now, give every shopper the ultimate last impression with the DS8100 Series handheld imager,
only from Zebra. The DS8100 Series rises above the conventional imagers to deliver unprecedented scanning performance on 1D and 2D barcodes, innovative productivity enhancing tools and unrivaled manageability to keep your checkout lines moving and your cashiers free to deliver a more personal checkout experience. The DS8100 Series – because when it comes to the checkout experience, only the best will do.

UNPRECEDENTED PERFORMANCE

Unparalleled Performance on Virtually Every Barcode in Any Condition

Only the DS8100 Series combines the power of an 800 MHz microprocessor, a
high-resolution megapixel sensor and Zebra’s exclusive PRZM technology. With this unique combination of hardware and advanced algorithms, the DS8100 Series instantly captures the most problematic barcodes – including dense, poorly printed, crinkled, faded, distorted, dirty or damaged, as well as electronic barcodes on dimly lit displays.

Superior Scan Range

A scanning range up to 24 in./61 cm, a high resolution imaging sensor and a bright “aiming spot” improve checkout speed. Now, cashiers in busy checkout environments can easily scan items in a customer’s shopping cart – without leaving the cash-wrap.

Power to Scan Continuously for 24 Hours

No matter how busy your store is, with Zebra’s exclusive PowerPrecision+ smart
battery in the cordless DS8178, your workers will always have the power they need for the busiest shift. Your devices are always available – no need for charging during the business day.

INNOVATION BEYOND THE BARCODE

PRZM Intelligent Imaging

Only from Zebra, PRZM features reset the bar for imaging performance. Poor images are turned into instantly useful images for faster decoding. PRZM then handles some of the processing typically handled in the decoder to reduce power usage, improve battery cycle times and further increase decoding speed.

Support for the Barcode of the Future – Digimarc®

The DS8100 Series supports Digimarc digital watermark technology, which enables a barcode to be printed repeatedly over all surfaces of a product like wallpaper – yet remain completely invisible to the naked eye. Cashiers no longer need to locate and position barcode in the field of view of the imager, enabling faster checkout and easier self-checkout.

Capture Multiple Barcodes with One Press of the Scan Trigger

Multi-code Data Formatting (MDF) vprovides the ability to capture multiple barcodes and transmit only those required in the precise order the application requires.

Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

1D:

• Code 39
• Code 128
• Code 93
• Codabar/NW7
• Code 11
• MSI
• Plessey
• UPC/EAN
• I 2 of 5
• Korean 3 of 5
• GS1 DataBar
• Base 32 (Italian Pharma)

2D:

• PDF417
• Micro PDF417
• Composite Codes
• TLC-39
• Aztec
• DataMatrix
• MaxiCode
• QR Code
• Micro QR
• Chinese Sensible
• (Han Xin)
• Postal Codes

Image Sensor Type: Imager
Network & Communication
Bluetooth: Yes
Interfaces/Ports
Host Interface: USB
Physical Characteristics
Form Factor: Handheld
Product Color: Twilight Black
Height: 6.6″
Width: 2.6″
Depth: 4.2″
Weight (Approximate): 8.30 oz
Miscellaneous
Package Contents:

• DS8100 Series Handheld Imagers

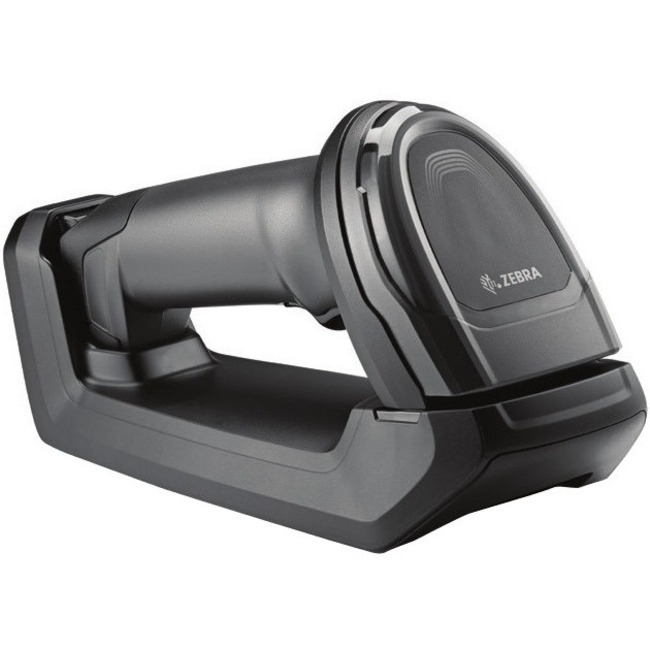

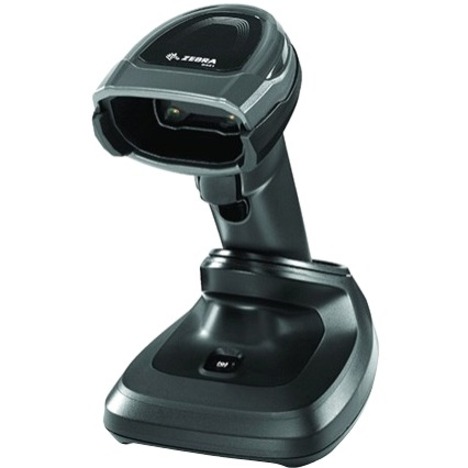

• Standard Cradle
• Presentation Cradle
• Wall Mount Bracket
• Spare Battery
• Document Capture Stands

Environmentally Friendly: Yes
Warranty
Limited Warranty: 3 Year
