6WX909

The versatile scanner that does more for your retail operations

Today’s shoppers don’t want to wait in long lines at the checkout or returns desk. The DS4600 Series offers the versatility and scanning performance you need to keep transactions fast and lanes flowing smoothly throughout the whole store. This feature-rich family helps associates scan items of all sizes, read barcodes in nearly any condition and handle transactions of all kinds. There is a DS4600 Series
model for every need in your store. Bulky items in a shopping cart, a customer’s driver’s license at the returns desk, a mobile coupon at checkout, tiny barcodes in the jewelry department-the DS4600 Series can capture it all. The increased efficiency shrinks lines and keeps customers coming back again and again. And our unique DataCapture DNA and industry-preferred management tools make it
easier than ever to integrate, deploy and manage your scanners. The DS4600 Series-more data capture versatility, more range and more innovation.

Resets the bar for versatility and performance

Capture it all with the DS4600 Series
No matter what kind of data you need to capture in your store, there is a DS4600 Series model that is ready for the job. Scan 1D and 2D barcodes, whether they’re printed on a label or displayed on a phone. Capture DotCode and dotted DataMatrix barcodes through cellophane, as well as the tiny and dense barcodes found on jewelry tags. Read wide barcodes on packages and cartons in the backroom. You can even collect data from IDs and travel documents using Optical Character Recognition (OCR), or parse driver’s license information for age verification, returns monitoring, loyalty and credit card applications. The result? Superior value. You can deploy a single scanner family for virtually every scanning need across our store.

Count on Zebra performance to keep your lines moving

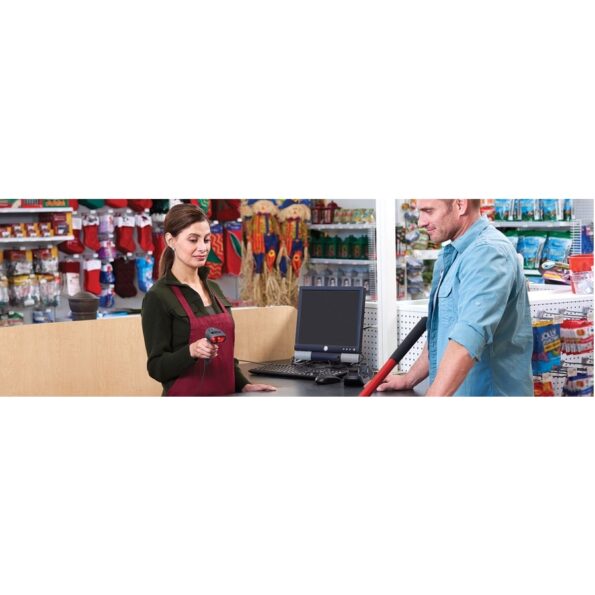

Zebra’s DS4308 set the bar for decode range, and you can count on the same “can’t miss” range from the DS4600 Series. The DS4608-SR can capture UPC codes up to 28 inches away, enabling checkout associates to easily reach items in a customer’s shopping cart without leaving the cashwrap. The 800 MHz microprocessor, high-resolution megapixel sensor and Zebra’s exclusive PRZM Intelligent Imaging technology provide instant barcode capture on even the most
challenging barcodes. And a patented rear engine design enables the DS4600 Series to read wider barcodes at every distance, compared to other scanners with a similar field of view. As a result, associates can focus on your customers, rather than positioning items.

Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported: 1D:

• Code 39
• Code 128
• Code 93
• Codabar/NW7
• Code 11
• MSI Plessey
• UPC/EAN
• I 2 of 5
• Korean 3 of 5
• GS1 DataBar
• Base 32 (Italian Pharma)

2D:

• PDF417
• Micro PDF417
• Composite Codes
• TLC-39
• Aztec
• DataMatrix
• MaxiCode
• QR Code
• Micro QR
• Han Xin
• Postal Codes
• SecurPharm
• DotCode
• Dotted DataMatrix

OCR:

• OCR-A
• OCR-B
• MICR
• US Currency

Image Sensor Type: Imager
Scanner Range: Standard Range
Scanning Distance: 27.95″
Cable Type Included: USB
Stand Included: Yes
Field of View (Horizontal): 36°
Field of View (Vertical): 23°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Maximum Ambient Light: 107000 lux
Drop Specification: Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 3 mil
Maximum Element Resolution (Code 39): 20 mil
Maximum Element Resolution (DataMatrix): 10 mil
Maximum Element Resolution (PDF417): 6.7 mil
Interfaces/Ports
Host Interface: Multi-interface
Physical Characteristics
Form Factor: Handheld
Product Color: Twilight Black
Height: 6.5″
Width: 2.6″
Depth: 3.9″
Weight (Approximate): 5.71 oz
Miscellaneous
Ingress Protection (IP) Rating: IP52
Application/Usage:

• Retail
• Hospitality
• Industrial
• Inventory

Country of Origin: Mexico
