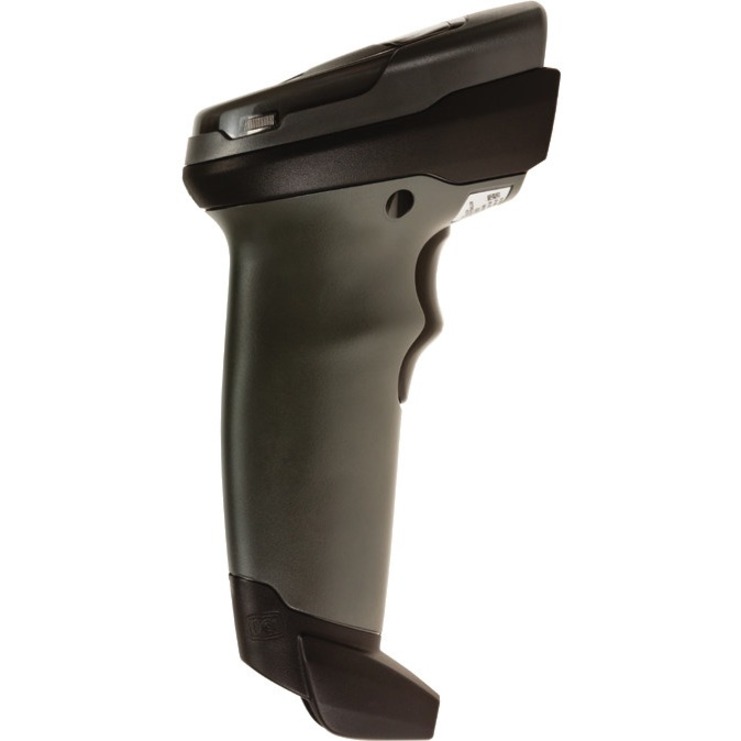

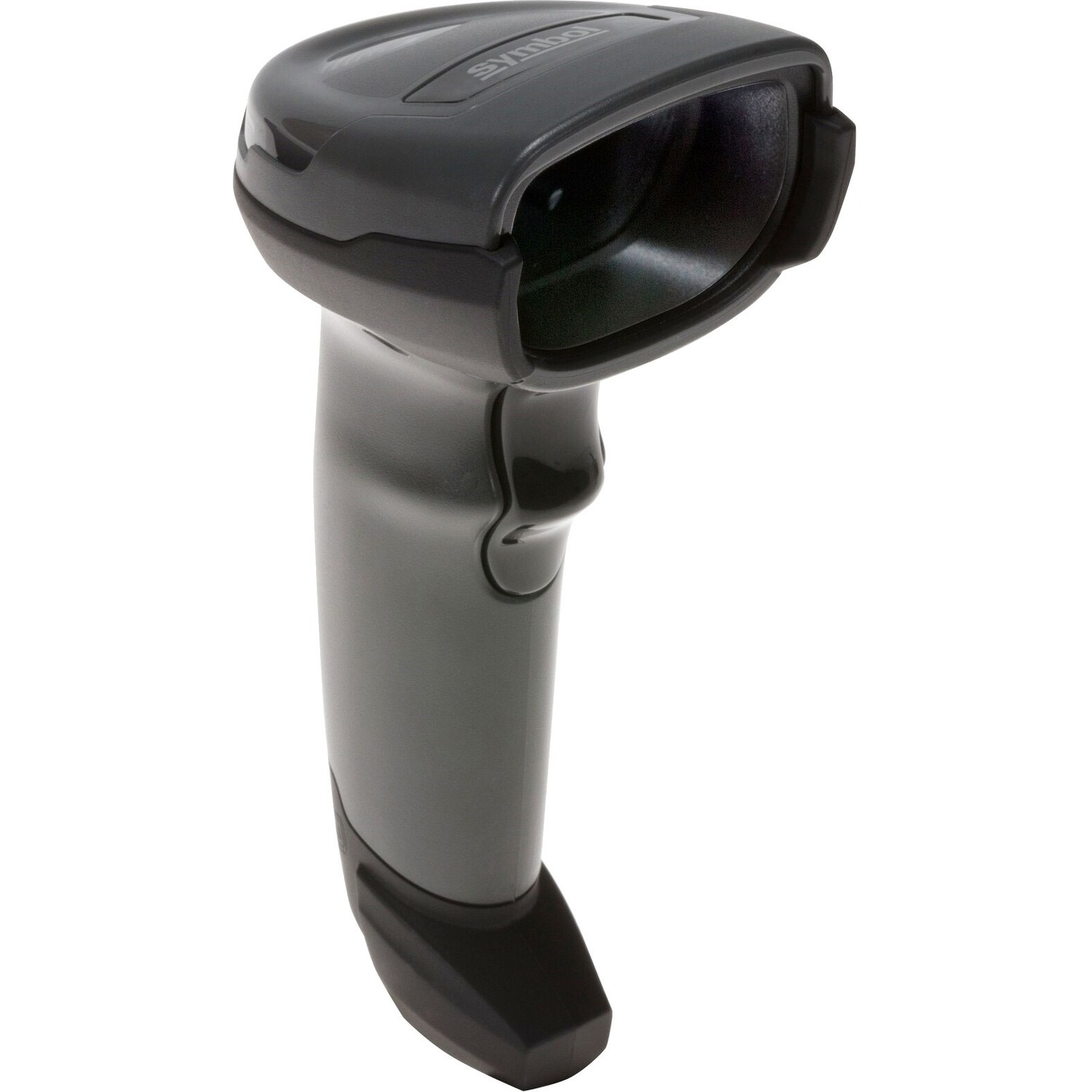

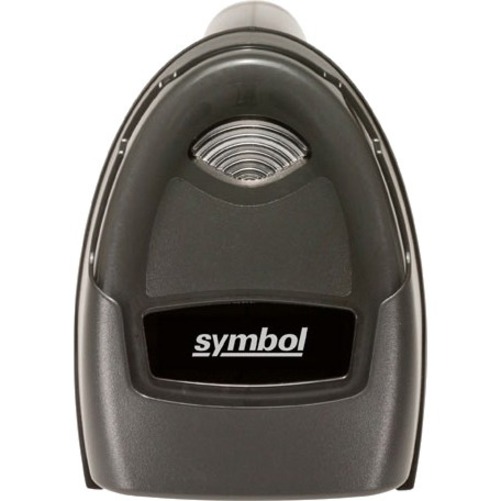

DS4308-SR7U2100AZW

SCAN ANY 1D OR 2D BARCODE FARTHER AND FASTER WITH NEXT GENERATION SCANNING TECHNOLOGY.

The DS4308 is a feature-rich next generation 2D imager that resets the bar for scanning performance, scanning range, versatility and easeof- use. Workers can capture virtually any bar code faster than ever, whether it is displayed on a smartphone, tablet or computer or printed on a label – even if it is scratched, damaged or dirty. Its small and lightweight design offers the ergonomics your workers need for all day comfort in the most scan intensive jobs. A variety of models meet a wide range of business needs – from the Point-of-Sale in a retail store to the light industrial manufacturing production line. Regardless of which model you choose, you get one powerful scanner that does the job of two. The Standard Range (SR) model offers an extraordinary range, eliminating the need to purchase separate standard and extended range scanners. The High Density (HD) model scans standard bar codes as well as the tiny, dense barcodes commonly found on jewelry tags, consumer electronics and electronic components – eliminating the need to purchase separate standard and high density specialty scanners. And driver’s license parsing can be added to either model. The result? An extraordinary feature set and an extraordinary value.

Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Cable
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported: 1D:

• UPC/EAN
• UPC/EAN with supplementals
• Bookland EAN
• ISSN
• UCC Coupon Extended Code
• Code 128
• GS1-128
• ISBT 128
• Code 39
• Code 39 Full ASCII
• Trioptic Code 39
• Code 32
• Code 93
• Code 11
• Matrix 2 of 5
• Interleaved 2 of 5
• Discrete 2 of 5
• Codabar
• MSI
• Chinese 2 of 5
• GS1 DataBar variants
• Korean 3 of 5
• ISBT Concat

2D:

• PDF417
• MicroPDF417
• Composite Codes
• TLC-39
• Data Matrix
• Maxicode
• QR Code
• MicroQR
• Aztec
• Han Xin

Postal:

• Australian Post
• US PLANET
• Royal Mail 4 State Customer
• US POS TNET
• KIX Code (Dutch)
• UK Postal
• Japan Post
• UPU 4 State Postal FICS (Post US4)
• USPS 4 State Postal (Post US3)
• Canadian Post (Postbar)

Image Sensor Type: Imager
Scan Pattern: Omni-directional
Scanner Range: Standard Range
Field of View (Horizontal): 36°
Field of View (Vertical): 23°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Motion Tolerance: 30 in/s
Maximum Ambient Light: 86000 lux
Drop Specification: Built to survive a 6 ft./1.83 m drop to concrete, the DS4308 delivers reliable operation, despite the inevitable everyday drops.
Minimum Print Contrast: 20%
Minimum Element Resolution (Code 39): 3 mil
Maximum Element Resolution (Code 39): 5 mil
Minimum Element Resolution (DataMatrix): 10 mil
Minimum Element Resolution (PDF417): 6.6 mil
Interfaces/Ports
Host Interface: USB
Physical Characteristics
Form Factor: Handheld
Product Color: Black
Height: 6.5″
Width: 2.6″
Length: 3.9″
Weight (Approximate): 5.71 oz
Miscellaneous
Additional Information:

USB Cable separate

Application/Usage:

• Retail
• Hospitality
• Manufacturing
• Industrial
• Logistics
