8JF387

Ultra-versatile healthcare scanner with a first-of-its-kind convertible design

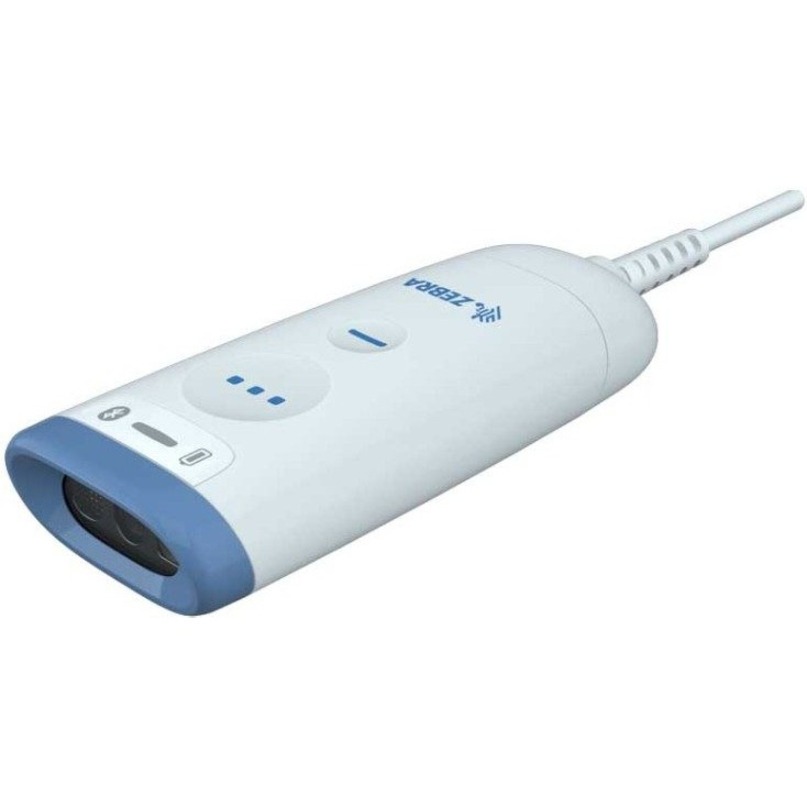

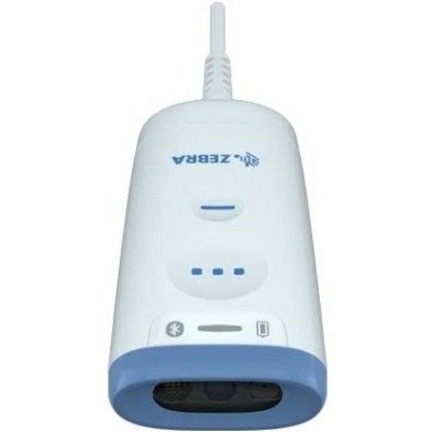

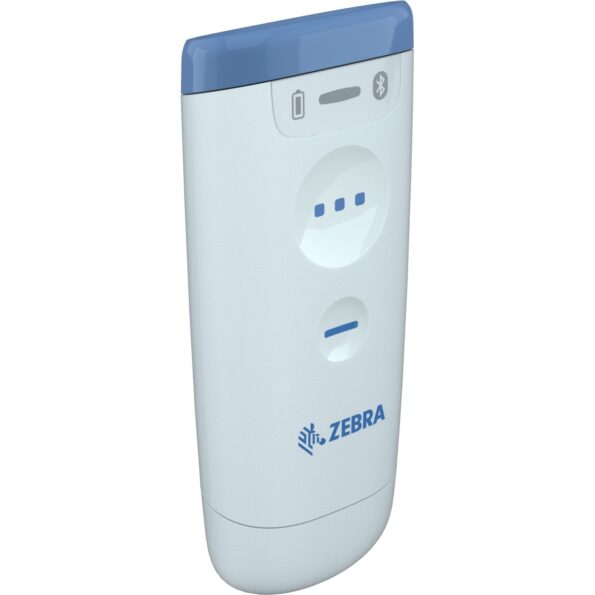

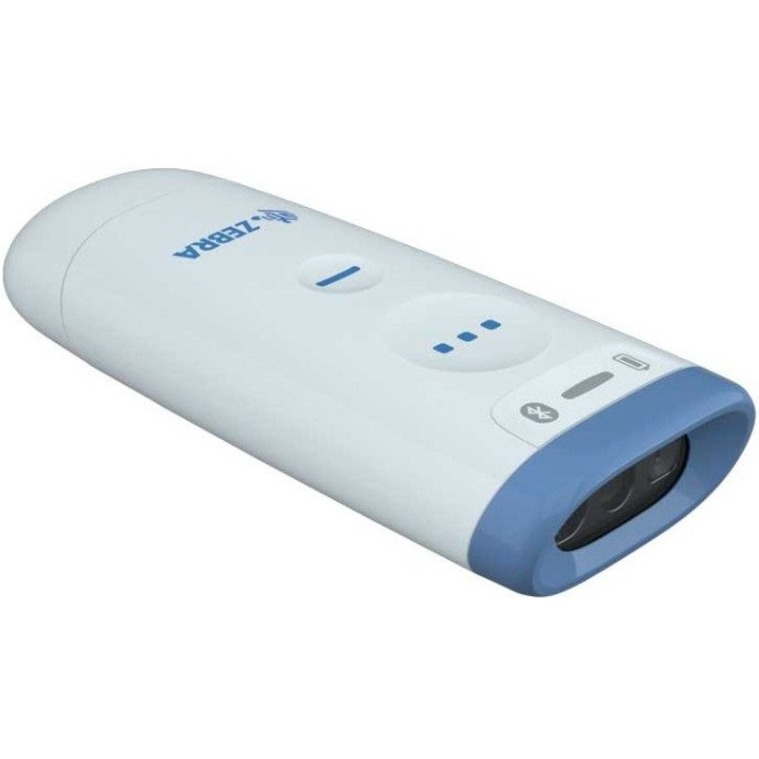

Do you need a cordless scanner at the point of care and a corded hands-free scanner in the pharmacy and lab? What if you didn’t have to deploy different scanners for different tasks? Introducing the CS60-HC Series Healthcare Companion Scanner, featuring a groundbreaking design that easily converts between corded and cordless operation, handheld and hands-free, as your needs change. As a cordless scanner, the CS60-HC is ultra-portable and pocketable to meet any nurse-carry workflow and offers the latest mobile technology including contactless charging. As a corded scanner, the CS60-HC provides compact scanning for the pharmacy counter, lab station and more. Whether you purchase a corded or cordless model up front, you can change modes at any time for superior investment protection. You get Zebra’s industry-leading scanning performance, easier data entry between multiple host applications and seamless disinfectant-ready plastics. And our unique DataCapture DNA and industry-preferred management tools make it easier than ever to integrate, deploy and manage your scanners.

First-of-its-kind convertible design minimizes investment risk

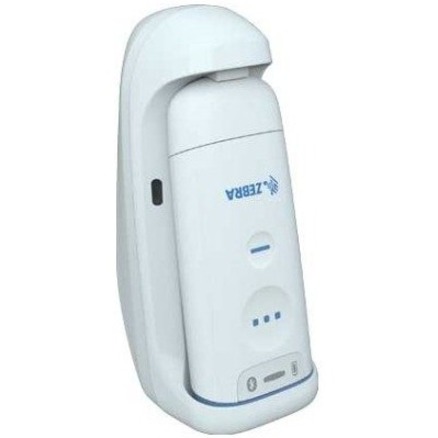

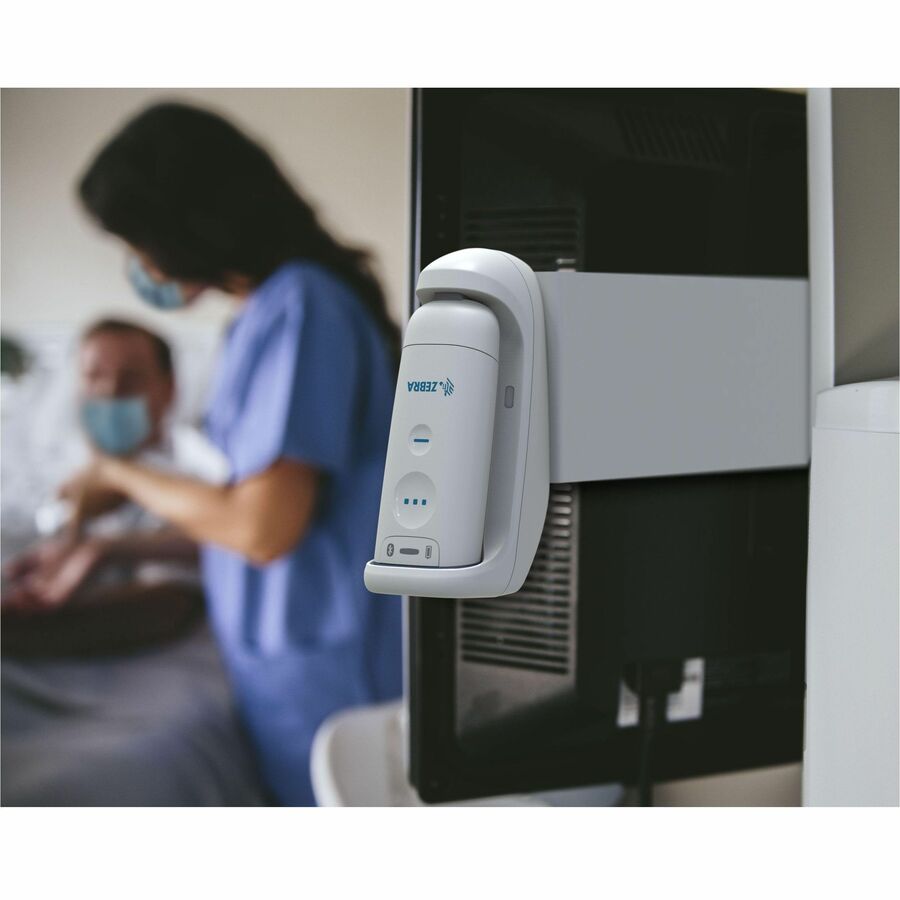

Whether you need a cordless companion scanner paired to a cartmounted cradle, mobile device or in-room workstation at the point of care; a hands-free presentation scanner in the lab; or a corded handheld scanner at the pharmacy, the CS60-HC has you covered. Simply swap the battery and corded USB converter at any time to change between corded and cordless scanning. Add the optional presentation stand or cradle to automatically switch between hands-free and handheld modes. This unparalleled versatility minimizes investment risk as it’s easy to meet new workflow needs or redeploy CS60-HC scanners to a different application.

Proven scanning performance you can trust

With a high-resolution megapixel sensor and Zebra’s exclusive PRZM Intelligent Imaging technology, the CS60-HC easily and accurately captures the many kinds of barcodes commonly used in hospitals including barcodes on patient wristbands, medication vials, IV bags and specimen trays. When you choose the CS60-HC, you get Zebra’s world-renowned quality and reliability.

Effortless multi-tasking with a second programmable button

A second programmable button can be used to instantly toggle between two host applications, such as Electronic Medical Record (EMR) and blood collection applications. With a quick press of the button, clinicians can send data to the right application in the proper format and order.

Product Type: Barcode Scanner
Technical Information
Connectivity Technology: Wireless
Scanning Capability:

• 1D
• 2D

Barcode Symbology Supported:

1D

• Base 32 (Italian Pharma)
• Codabar/NW7
• Code 11
• Code 39
• Code 93
• Code 128
• GS1 DataBar
• I 2 of 5
• Korean 3 of 5
• MSI Plessey
• UPC/EAN

2D

• Aztec
• Composite Codes
• DataMatrix
• Dotted DataMatrix
• Dotcode
• Han Xin
• MaxiCode
• PDF417
• Micro PDF417
• Postal Codes
• QR Code
• Micro QR
• TLC-39
• SecurPharm

OCR

• OCR-A
• OCR-B
• MICR
• US Currency

Light Source: LED
Image Sensor Type: Imager
Field of View (Horizontal): 45°
Field of View (Vertical): 34°
Reading Angle (Skew): 60°
Reading Angle (Pitch): 60°
Reading Angle (Roll): 360°
Motion Tolerance: 20 in/s
Maximum Ambient Light: 108000 lux
Drop Specification: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Minimum Print Contrast: 20%
Minimum Element Resolution (Code 39): 5 mil
Maximum Element Resolution (Code 39): 20 mil
Maximum Element Resolution (DataMatrix): 10 mil
Maximum Element Resolution (PDF417): 6.7 mil
Network & Communication
Bluetooth: Yes
Interfaces/Ports
Host Interface: USB
Battery Information
Battery Included: Yes
Physical Characteristics
Form Factor: Handheld
Product Color: White
Height: 0.9″
Width: 1.8″
Depth: 4.3″
Weight (Approximate): 3.07 oz
Miscellaneous
Package Contents:

• CS60-HC Barcode Scanner
• Presentation cradle
• spare battery
• 4-slot Scanner ShareCradle
• 4-slot battery ShareCradle
• lanyard

Ingress Protection (IP) Rating:

• IP66
• IP65

Application/Usage:

• Inventory
• Pharmacy
• Specimen Collection
• Healthcare

Environmentally Friendly: Yes
TAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
