RAM-HOL-ZE24PLU

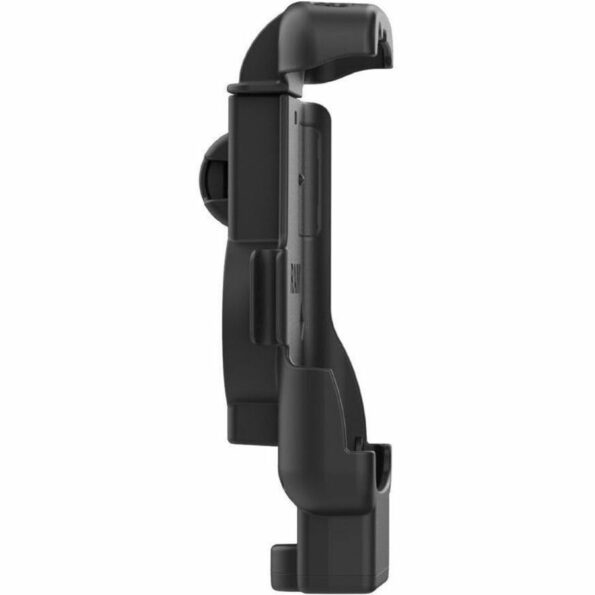

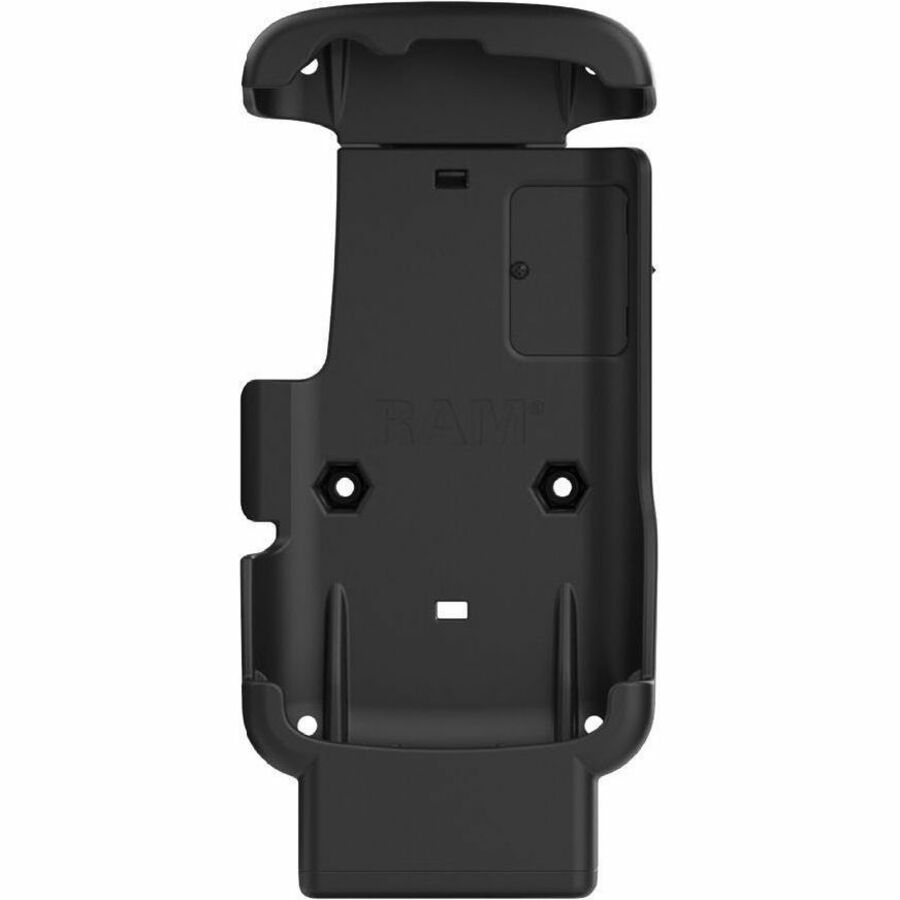

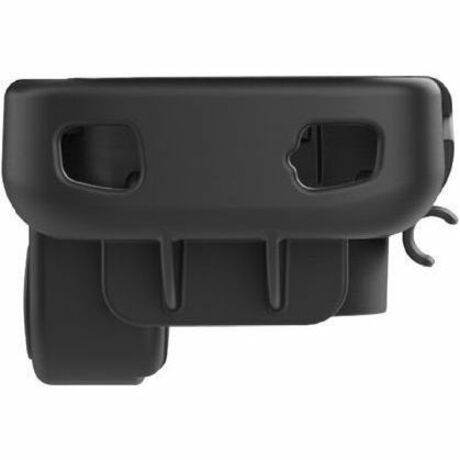

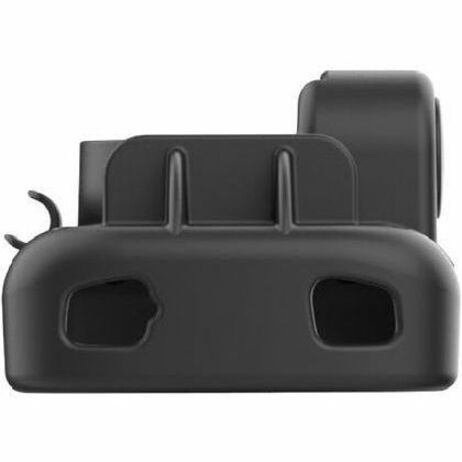

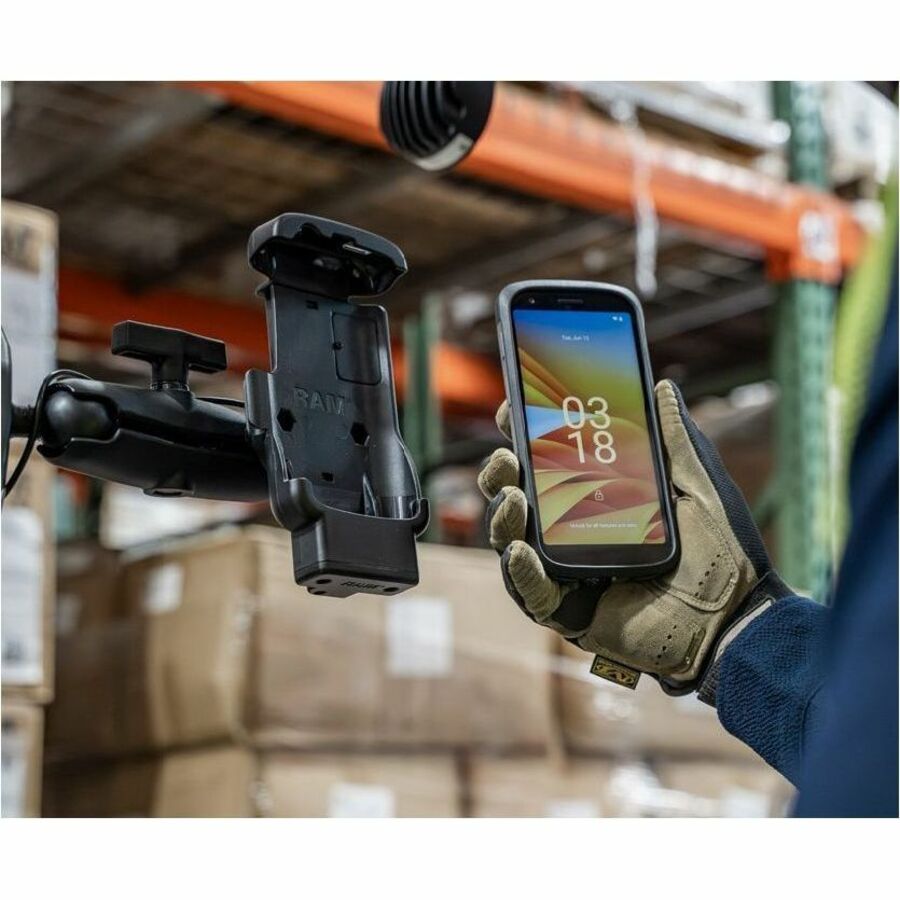

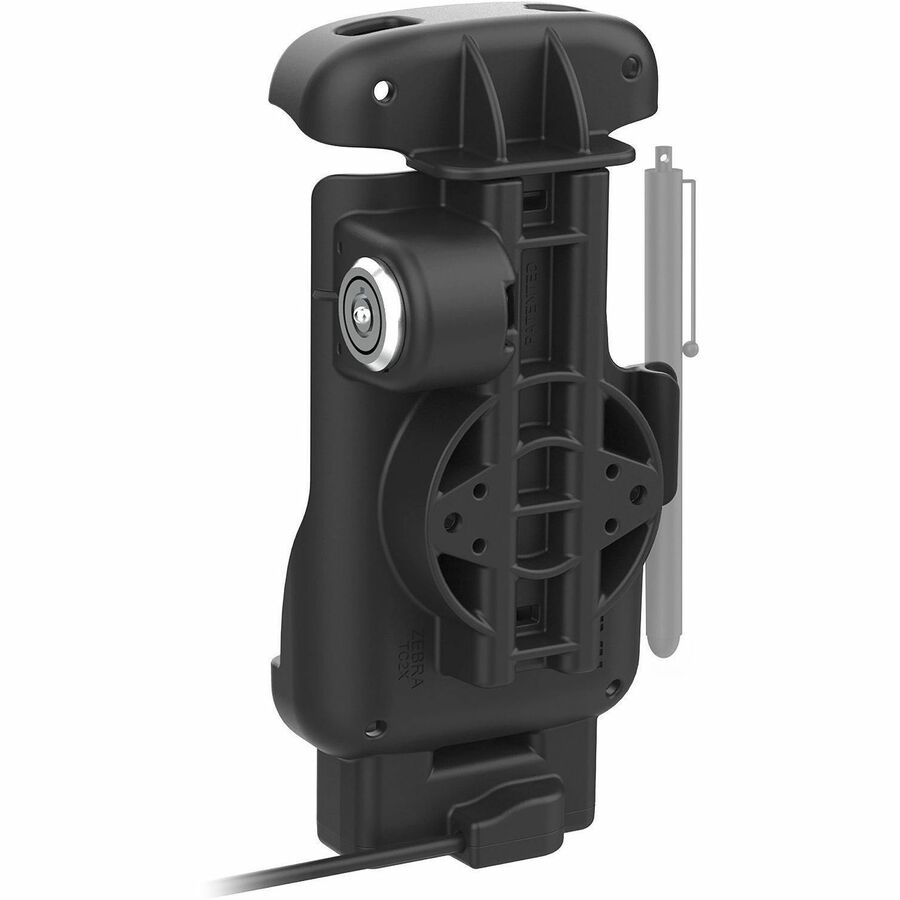

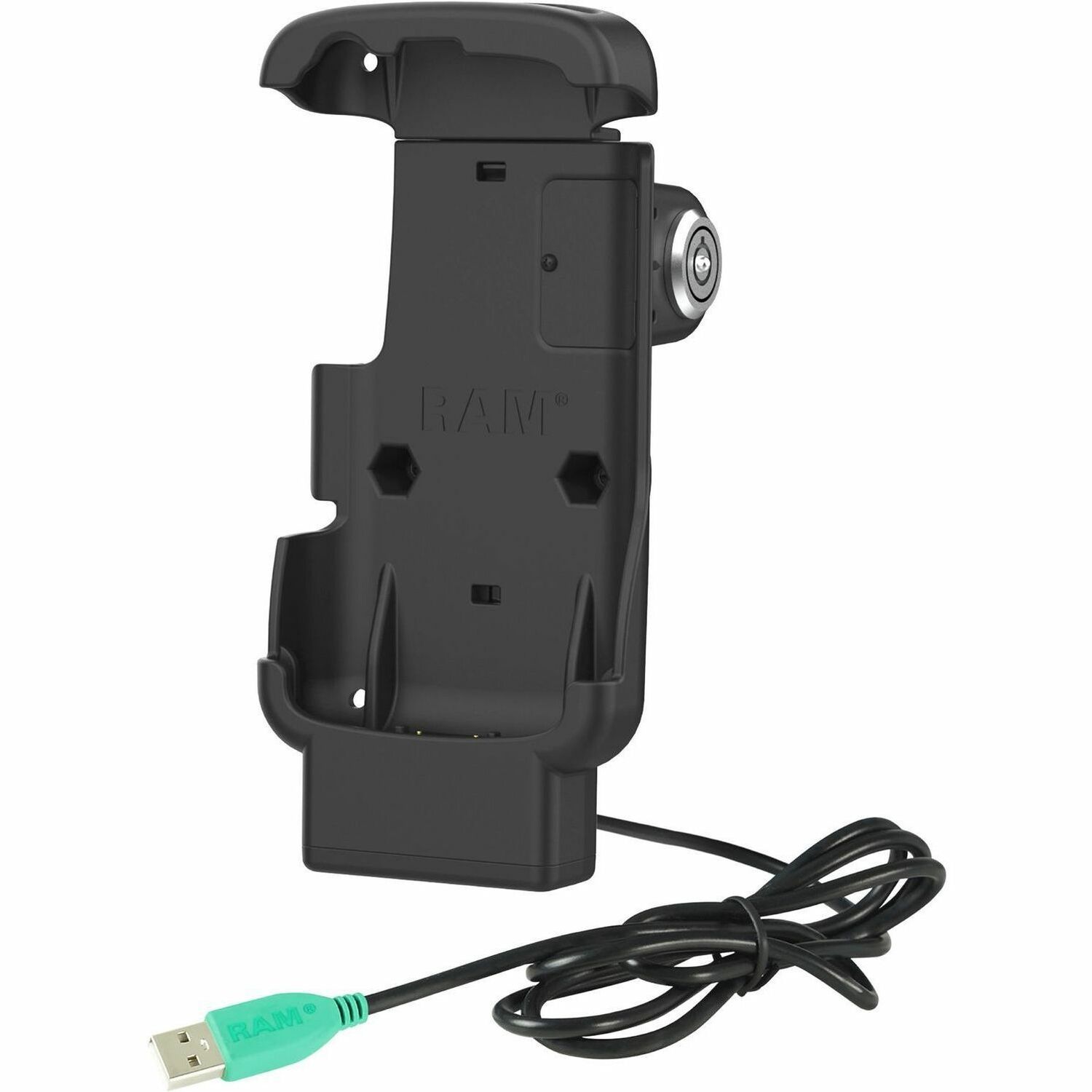

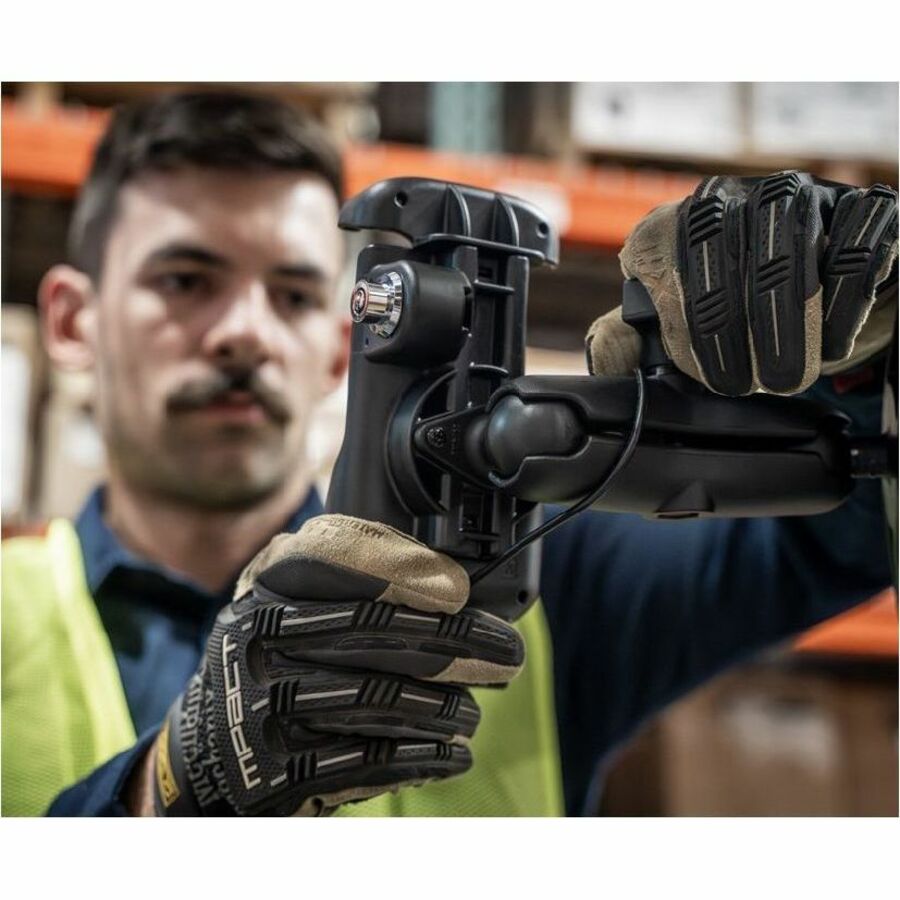

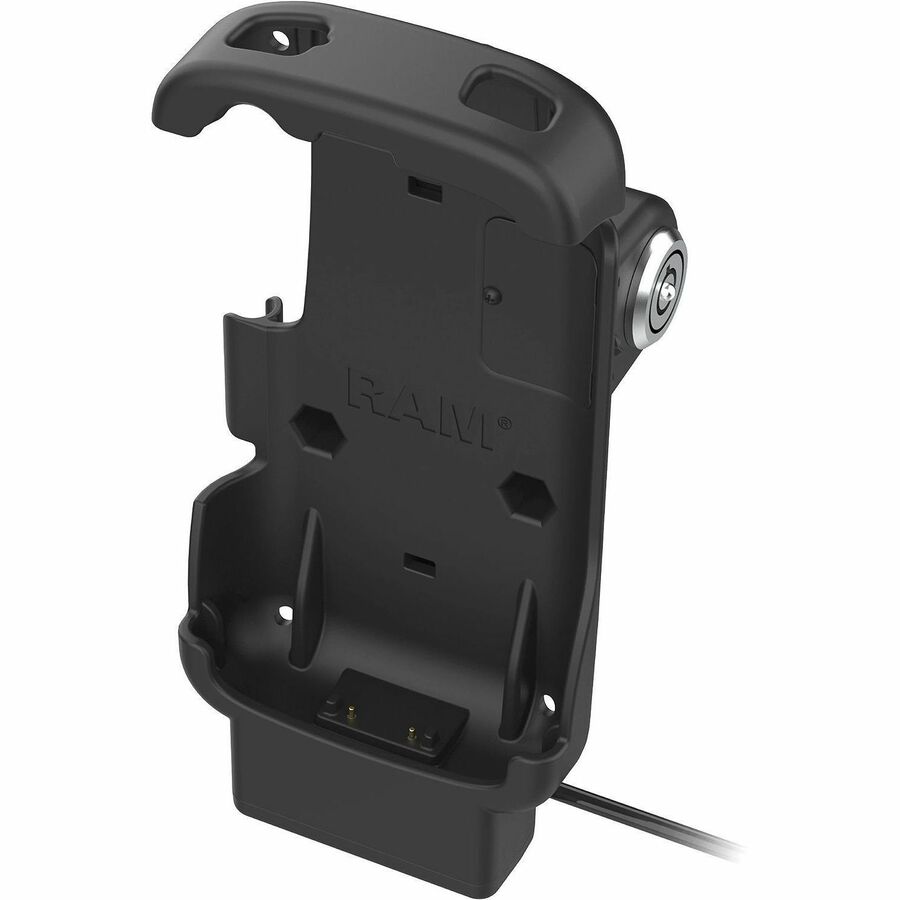

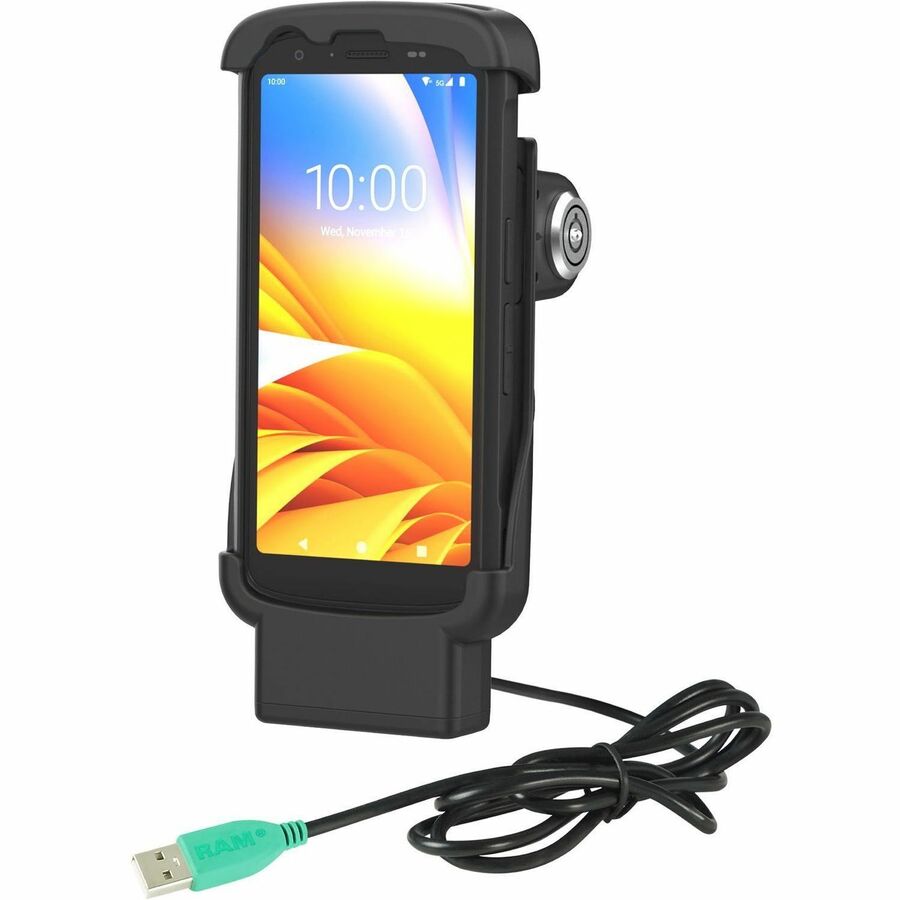

This key-locking, spring-loaded, form-fit powered dock (RAM-HOL-ZE24PLU) allows you to secure the Zebra TC22 and the TC27 handheld computer with the Rugged Boot installed. Power to the device is delivered via a 1.2m long USB Type-A connector and pogo pin docking pins. This dock includes an integrated stylus holder that snaps your stylus into place while not in use, and will accommodate the Zebra hand strap. Complete your solution by adding a compatible RAM® two-hole AMPS pattern diamond bases and a B or C size ball mount, allowing for a wide variety of mounting options (hardware included).

Product Type: Cradle
Technical Information
Connectivity Technology: Docking
Charging Capability: Yes
Device Supported: Mobile Computer
Interfaces/Ports
Host Interface: Pogo Pin
Power Description
Power Source: USB
Physical Characteristics
Product Material: High Strength Composite
Height: 7.7″
Width: 3.7″
Depth: 2.5″
Weight (Approximate): 12 oz
Miscellaneous
Package Contents:

• Locking Form-Fit Powered Dock for Zebra TC22 & TC27 with Boot
• 2 x Keys
• 2 x #8-32 x 5/8″ Machine Screws
• 2 x #8-32 x 3/4″ Machine Screws
• 2 x #8-32 Nylock Nuts

Compatibility:

Zebra Mobile Computers:

• TC22
• TC27

Warranty
Limited Warranty: 3 Year
